High Quality and Precision Manufacturing Equipment

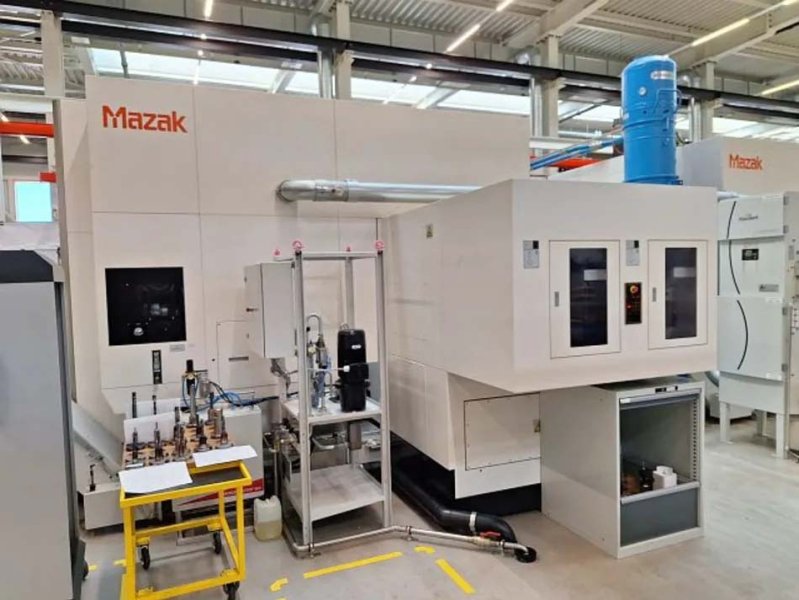

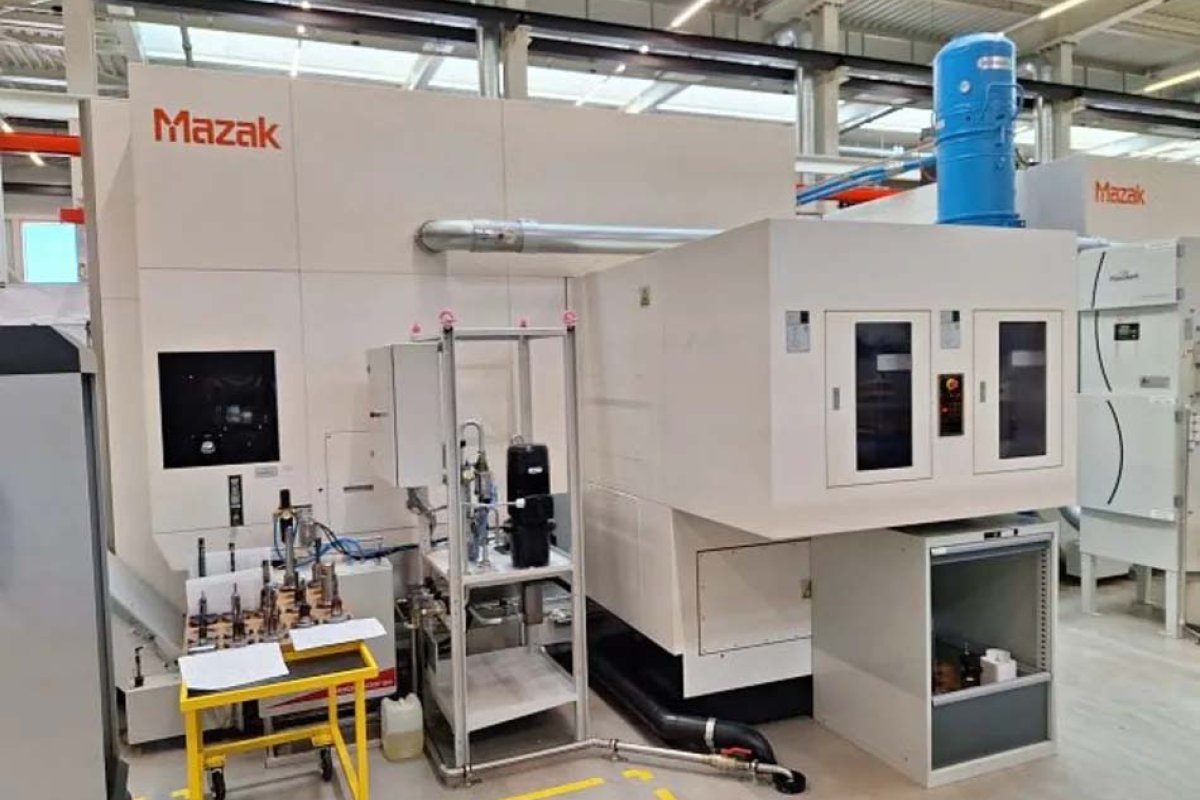

Vertical Machining Center (APC, used) Manufacturer: MAZAK Model: FJV 35/60 Year of Manufacture: approx. 2016 Control System: Mazatrol CNC Working Area – Cubic: • Number of machining axes (without parallel axes): 3 • X-axis travel: 1500 mm • Y-axis travel: 800 mm • Z-axis travel: 660 mm • Spindle nose to table distance (max.): 820 mm Table: • Table size (left–right): 1740 mm • Table size (front–back): 750 mm • Max. workpiece weight: 2500 kg Spindle / Head: • Speed range: 35 – 10 000 rpm • Spindle taper: ISO SK 50 Tool Magazine

Dati tecnici

1. Condizione: usato
2. Anno: 2016

CNC Sliding Head Lathe (used) Manufacturer: CITIZEN Model: C-16 Serial Number: X11290 Year of Manufacture: approx. 2003 Control System: CINCOM M6C Specifications: • Number of spindles: 2 • Driven tools: Yes • Max. bar diameter: 16 mm • Main spindle speed: up to 10,000 rpm • Sub spindle speed: up to 10,000 rpm • Cross slide spindle speed: up to 5,000 rpm • Electrical connection: 400 V

Dati tecnici

1. Condizione: usato
2. Anno: 2000

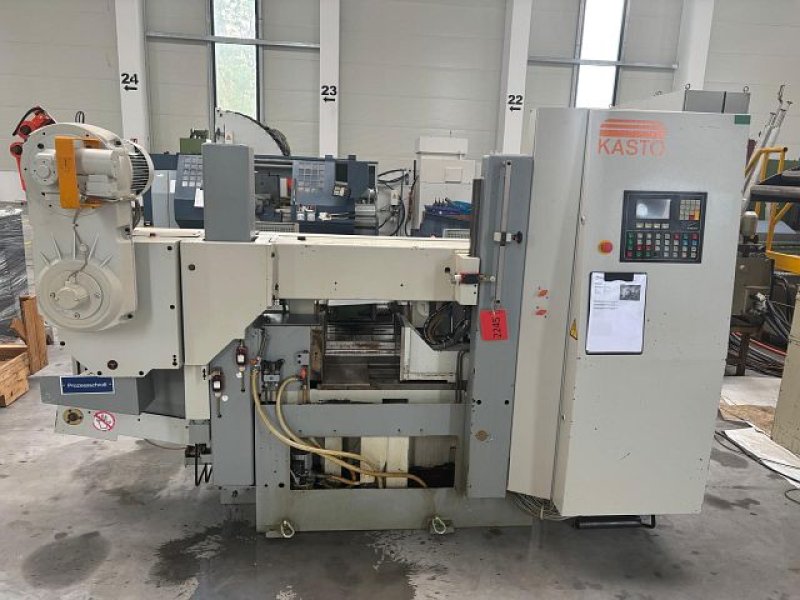

Bandsaw – Automatic (used) Manufacturer: KASTO Model: HBA 360 AU Serial Number: 6016 109 102 Year of Manufacture: approx. 1995 Control System: PLC control Technical Data: • Max. cutting height: 360 mm • Saw blade length: 5334 mm • Saw blade width: 41 mm • Max. bar feed (single stroke): 600 mm • Cutting speed range: 20 – 130 m/min Electrical Specifications: • Total power consumption: 17 kW Dimensions / Weight: • Space requirement (left–right): 2900 mm • Space requirement (front–back): 2900 mm • Overall height: 1900 mm • Total weight: approx. 2,540 kg

Dati tecnici

1. Condizione: usato
2. Anno: 1995

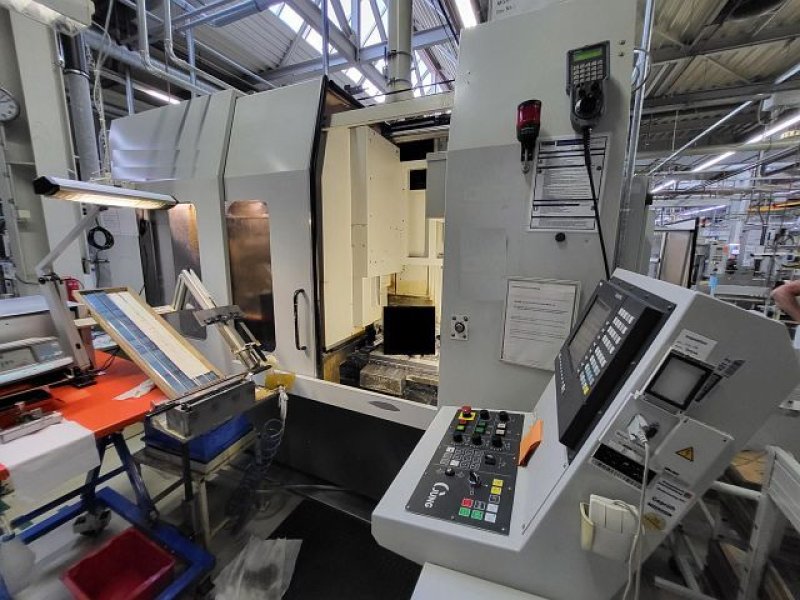

Surface and Profile Grinding Machine (used) Manufacturer: JUNG Model: C 740 CNC Serial Number: 8179 Year of Manufacture: approx. 2003 Control System: SIEMENS SINUMERIK CNC Surface Grinding Area: • Grinding length: 880 mm • Grinding width: 510 mm Table (Surface Grinding): • Clamping surface (L×W): 800 × 430 mm • Max. workpiece weight: 800 kg Magnetic Chuck: • Length: 800 mm • Width: 400 mm Grinding Spindle: • Speed range from: 1 500 rpm

Dati tecnici

1. Condizione: usato
2. Anno: 2003

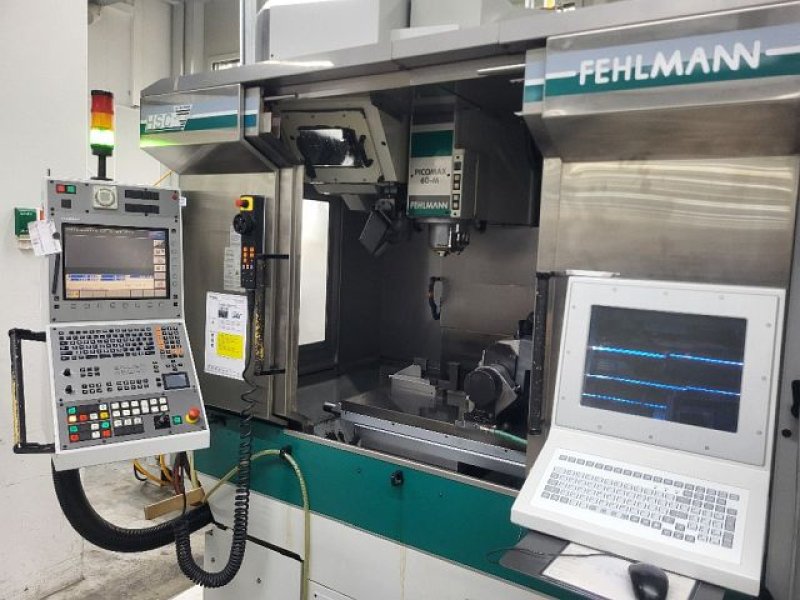

Universal Machining Centre (APC) (used) Manufacturer: FEHLMANN Model: PICOMAX 60 M Serial Number: 14508590 Year of Manufacture: approx. 2008 Control System: HEIDENHAIN iTNC 530 Specifications: • Number of machining axes: 5 • Travel (X / Y / Z): 505 / 355 / 610 mm • Max. spindle speed: 20,000 rpm • Tool holder: ISO SK 30 • Tool magazine capacity: 32 positions • Workpiece handling: Pick-up manipulator

Dati tecnici

1. Condizione: usato
2. Anno: 2008

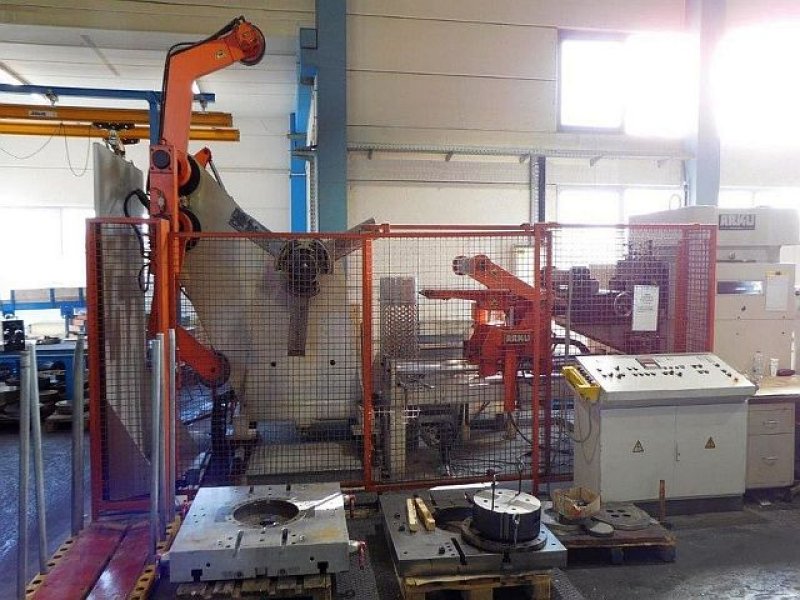

Coil Processing Line (used) Manufacturer: ARKU Model: RM 5035.4/21 Year of Manufacture: approx. 1989 Overhauled: 2006 Control System: Siemens S5-115U PLC Line Data (Coil Processing): • Max. sheet width: 350 mm • Max. sheet thickness: 8 mm • Max. coil weight: 4 t • Max. working speed: 10 m/min • Material feed direction: left–right Coil Uncoiler Unit: • Type: Single uncoiler • Max. sheet width: 350 mm • Max. coil weight: 4 t • Max. outside coil diameter: 1500 mm • Expansion range: 370–530 mm • Max. working speed: 10 m/min Straightening Unit: • Max. sheet width: 350 mm • Max. sheet thickness: 8 mm • Number of straightening rollers: 21 • Straightening roller diameter: 50 mm • Number of entry/exit rollers: 2 • Entry roller diameter: 120 mm • Max. working speed: 10 m/min Electrical Specifications: • Total power consumption: 38 kW • Voltage: 380 V • Frequency: 50 Hz Dimensions / Weight: • Approx. total weight: 13,000 kg Included Equipment: • ARKU AH4000/MSG-4Q single uncoiler with hydraulic expansion Hydraulic front coil stop roller Hydraulic upper and lower pressure arms • ARKU sheet introduction aid Hydraulic top roller Adjustable bottom table (hydraulic) Manual adjustable wedge guide • ARKU precision straightening machine RM 5035.4/21 Drive for all straightening and feed rollers Hydraulic feed roller adjustment Motorized roll stand adjustment • ARKU loop bridge with ultrasonic loop control Remarks

Dati tecnici

1. Condizione: usato
2. Anno: 1989

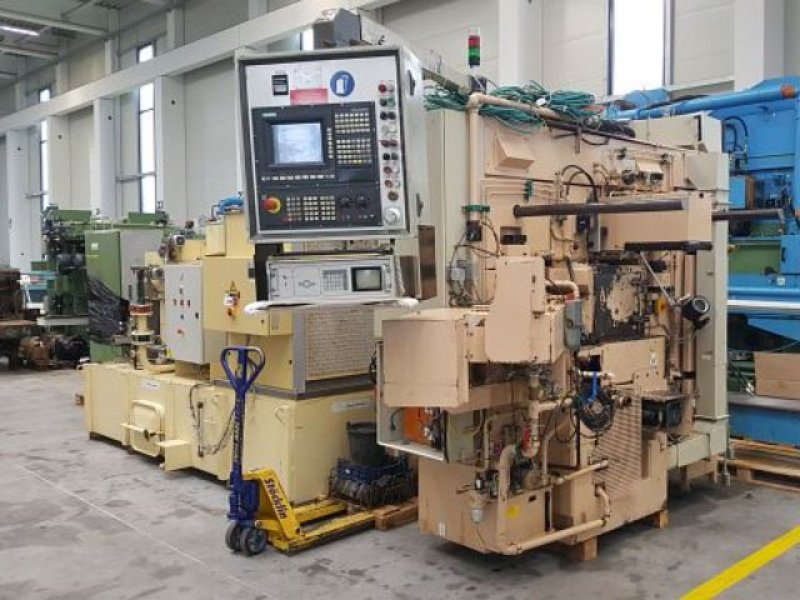

Double-face grinding machine, vertical (used) Manufacturer: DISKUS Model: DDS 457 III PRVM-CNC Serial number: 7976 Year of manufacture: approx. 1997 Control system: Siemens 840 C CNC control Working area (double-face grinding machine): • Grinding wheel diameter: 457 mm • Maximum grinding width (through-feed grinding): 80 mm • Maximum material thickness (through-feed grinding): 20 mm • Maximum grinding width (plunge grinding): 205 mm • Maximum material thickness (plunge grinding): 80 mm Grinding spindles: • Spindle 1 – Drive power: 23 kW • Spindle 2 – Drive power: 23 kW Part feed: • Design: Circular feed • Feed speed: 20–240 mm/min Accessories and scope of delivery: • Complete machine • Emulsion tank, built in 2012 • IONIC 17A measuring controller

Dati tecnici

1. Condizione: usato
2. Anno: 1997

Deep Hole Drilling Machine (cubic type, used) Manufacturer: TBT Model: BW 200 Serial Number: 106061-11 Year of Manufacture: 2001 Control System: Siemens 840 D CNC Working Area – Cubic: • Number of machining axes (without parallel axes): 5 • X-axis travel: 800 mm • Y-axis travel: 600 mm • Z-axis travel: 800 mm • W-axis travel: 1250 mm • B-axis rotation range: 0° – 360° Drilling Section: • Max. drilling depth: 800 mm • Drilling capacity (solid drilling, steel): 25 mm

Dati tecnici

1. Condizione: usato
2. Anno: 2001

Vertical Double Disc Grinding Machine (used) Manufacturer: DISKUS Model: DDS 750 XR Serial Number: 2022 Year of Manufacture: approx. 2000 Control System: SIEMENS 840 D Specifications: • Grinding wheel diameter: 750 mm • Max. grinding width (through-feed): 180 mm • Max. material thickness (through-feed): 30 mm • Max. grinding width (plunge-cut): 300 mm • Max. material thickness (plunge-cut): 80 mm • Grinding spindle drive (each): 48 kW • Workpiece feed: Rotary feed type, speed up to 20 mm/min

Dati tecnici

1. Condizione: usato
2. Anno: 2000
