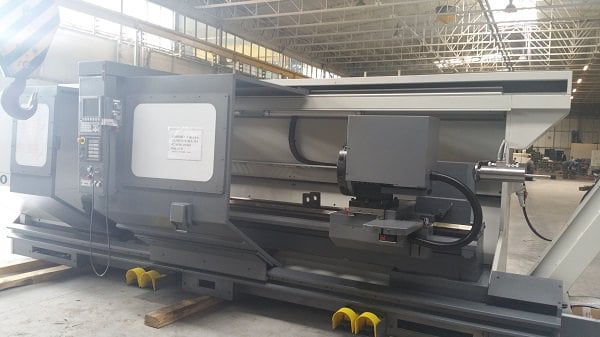

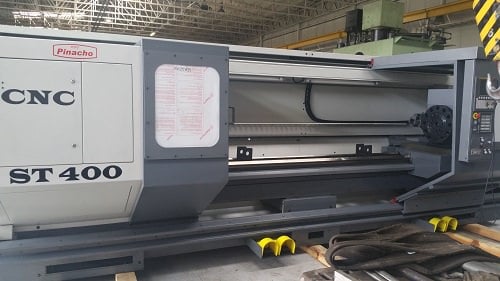

PINACHO ST400 /4000 2015
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND10824
Dati tecnici
- Condizione: usato
- Anno: 2015
Descrizione
Technical specifications:
Control: Fanuc 0-iTD + Manual Guide I
Specification:
Swing over bed: 805 mm
Swing over support: 720 mm
Swing over cross slide: 515 mm
Center height: 400 mm
Planschlitt ...
Technical specifications:
Control: Fanuc 0-iTD + Manual Guide I
Specification:
Swing over bed: 805 mm
Swing over support: 720 mm
Swing over cross slide: 515 mm
Center height: 400 mm
Planschlittenweg: 400 mm
Turning length: 4000 mm
Spindle:
Spindle motor power: 17 kW
Spindle speed: 0-450, 450-1700 U / min (stepless)
Arbeitsvorchube the axes Z, X: 0-7000 mm / min
Rapid advance along the Z axis, X: 10 m / min
Spindle taper: A2-8
Spindle taper: MT5
Spindle bore: fi 105
Screw cone diameter in axis X, Z: fi 32/5, 50/10
Rewolwerdrehkopf:
Tool number: 12 pieces
In Trie Bene tool number: 12 pieces
Tool speed: 3000 U / min
Turret Manufacturer: PRAGATI
Cooling: External
Hydraulic tailstock:
Pinoledurchmesser: fi 96 mm
Inner cone tailstock: Morse 6
Spindle stroke: 215 mm
Other data:
Machine weight about 6.46 t
Space ca .: 5530 x 1800 x 2230 mm
EQUIPMENT this lathe:
- FANUC 0i-TD + Manual Guide I, Monitor 10 "Color
- FANUC servo X-axis, Z

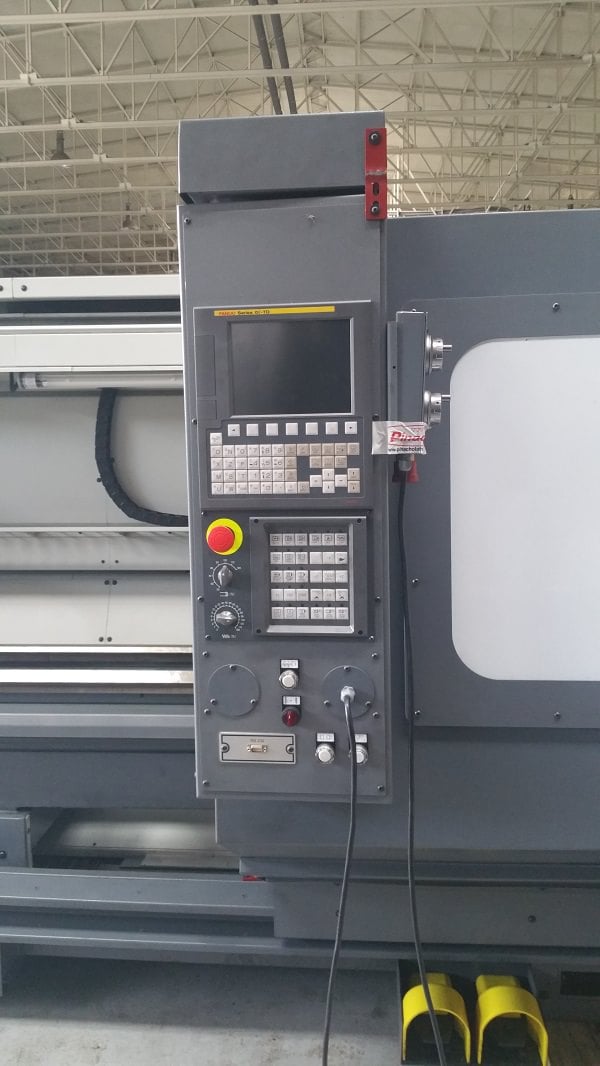

- Convenient control panel

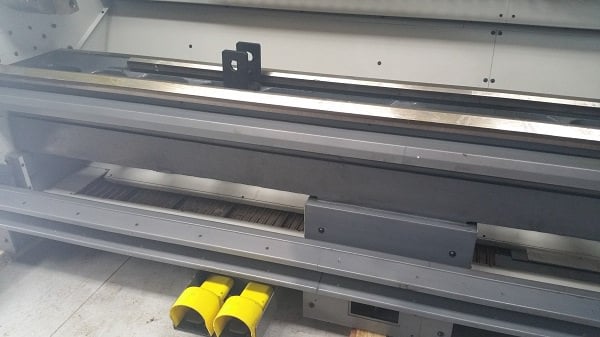

- Integrated machine bed
- Full hydraulics on the machine or hydraulic tailstock, 3-jaw chucks fi 400 mm with jaws hard and hydraulic cylinder (air cylinder 92 mm)
- The tool head 12 Stueck (driven tools, VDI40)
- Chip conveyor
- Manual wheel operator
- Teilgehaeuse
- A2-8 spindle taper, spindle diameter hole: 105 mm
- Max spindle speed 1700 U / min (infinitely).
- Halogen lighting workplace - double-sided
- Automatic tuerschloss
Hardened mechanitte The body of the machine on the casting -
- Automatic lubrication system
- Ethernet RS 232
- Socket Shlot CF card
- USB
- CE standard
- Technical documentation in English language
