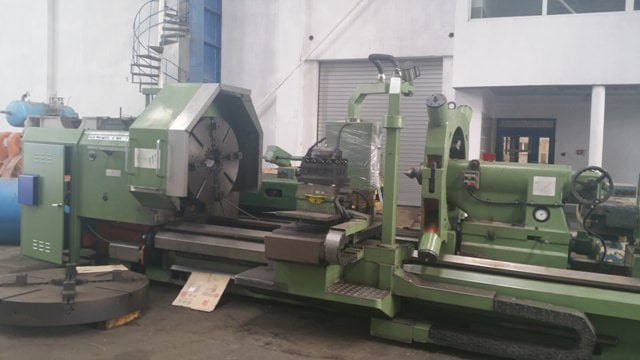

GEMINIS 1400 -3G 1994
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND10840
Dati tecnici
- Condizione: usato
- Anno: 1994
Descrizione
Manufacturer: GEMINIS - SPANIS
Model: CNC – 1400 - 3G
Condition: Very good
Control: CNC SINUMERK 810 T
New in : 1994
Technical details :
Height of centres from the flat guide: 705 mm
...
Manufacturer: GEMINIS - SPANIS
Model: CNC – 1400 - 3G
Condition: Very good
Control: CNC SINUMERK 810 T
New in : 1994
Technical details :
Height of centres from the flat guide: 705 mm
Max. diameter over cross slide: 1 150 mm
Turning diameter: 1 400 mm
Turning length: 3 000 mm
Spindle rotation (continuous) : 2,8 – 710 rpm
Range I: 2,8 - 90
Range II: 5,6 - 180
Range III: 11,2 – 355
Range IV: 22,4 – 710
Main spindle bore diameter: 104 mm
Nose Geminis: 15 in
Spindle diameter on front bearing: 240 mm
Centre: Metric-80
Motor:
Main motor D.C. cont. Service S-1 ( 100 % ): 55 kW
Max torque Cont.Service S-1 ( 100 % ): 15000 Nm
Longitudinal servo-motor (Zaxis) D.C.: 32 Nm
Transversal servo-motor (X axis) D.C.: 12,5 Nm
Displacements and slides
Longitudinal screw dia./thread: 80/12 mm
Cross screw dia./thread: 50/6 mm
Length of longitudinal slide: 1300 mm
Width of cross slide: 510 mm
Cross slide stroke: 670 mm
Max. longitudinal rapid traverse: 8 m/min
Max. cross rapid traverse: 6 m/min
Longitudinal working feeds: 0-4000 mm/min
Cross working feeds: 0-2000 mm/min
Pitch thread: 0 … acc. to control model
Tailstock:
Quill diameter: 220 mm
Traverse: 270 mm
Rotary centre incorporated: 75º
Bed
Width: 1150 mm
Height up to plane guide: 700 mm
Maximum Admissible Weithts:
Between centers: 16000 kg
With one steady / with two steadies: 20000 / 25000 kg
On air with gravity centre at 315 mm: 3150 kg
The lathe equipped with:

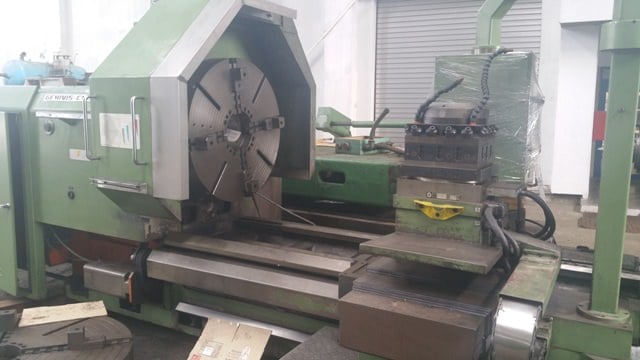

- 4 jaw chuck installed on the lathe fi 1000 mm
- 4-jaw chuck fi 1400 mm - additional

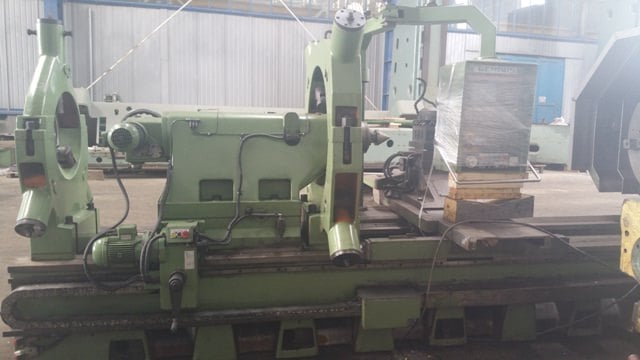

- Big lunet fi 900 mm
- Small lunet fi 520 mm
- Milling attachment ( look at the picture )

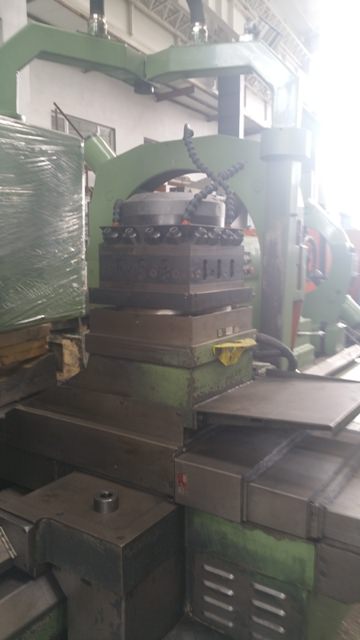

- Toolholder- automatic 4 position – Model: Sauter 0.5.320.032 ( Germany )
- Tailstock with electrical driver along with a sleeve
- Chip conveyor
