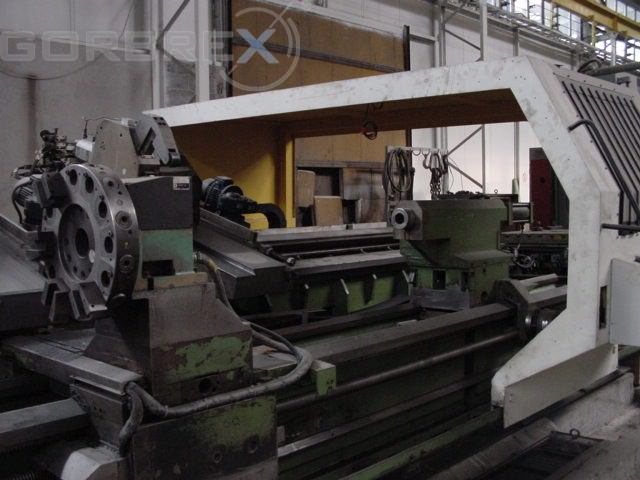

POTISJE PA 45/6000 1991
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND10847
Dati tecnici
- Condizione: usato
- Anno: 1991
Descrizione
Manufacturer: POTISJE - Yugoslavia
Model: PA 45/6000
New in: 1991
Condition:
very good, machine complete, in working condition
Technical details
Swing over bed: 910 mm
Swing over carri ...
Manufacturer: POTISJE - Yugoslavia
Model: PA 45/6000
New in: 1991
Condition:
very good, machine complete, in working condition
Technical details
Swing over bed: 910 mm
Swing over carriage: 630 mm
Height of centres: 450 mm
Max turning lenght: 6000 mm
Turning length in bridge: 400 mm
Range of carriage feeds: 42
Longitudinal carriage feed min: 0,049 rpm
Longitudinal carriage feed max: 5,6 rpm
Transversal carriage feed min: 0,024 rpm
Transversal carriage feed max: 2,8 rpm
Type of taper: Morse 6
Spindle speeds min: 11 rpm
Spindle speeds max: 500 rpm
Screw cutting range:
- metric: 0,75-64 mm
- inch: 64....9/16 m
- module: 1...16 m
Dimensions (lenght x width): 8725 x 1400 mm
Main motor power: 15 kW
Weight: ca.11000kg
