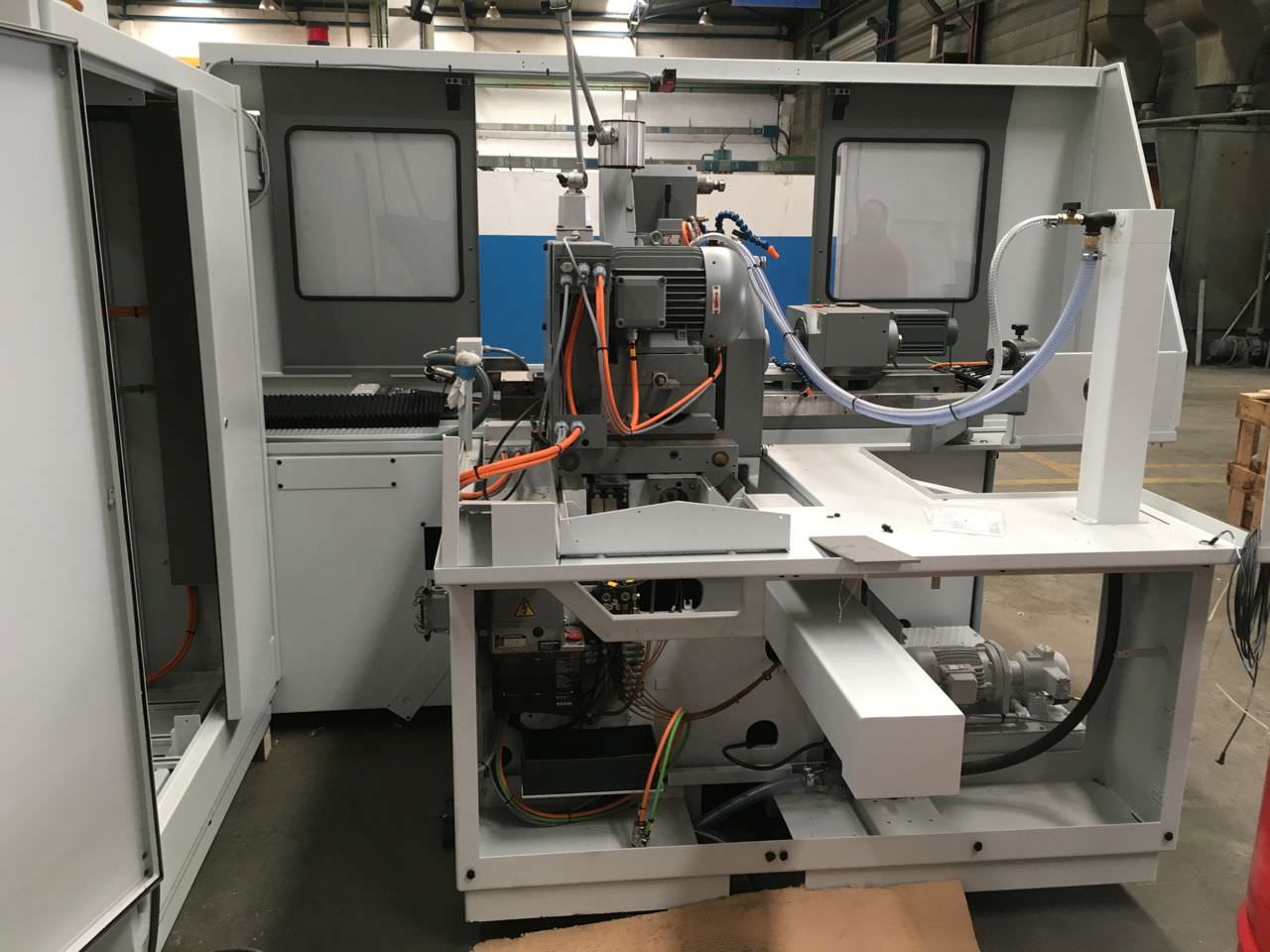

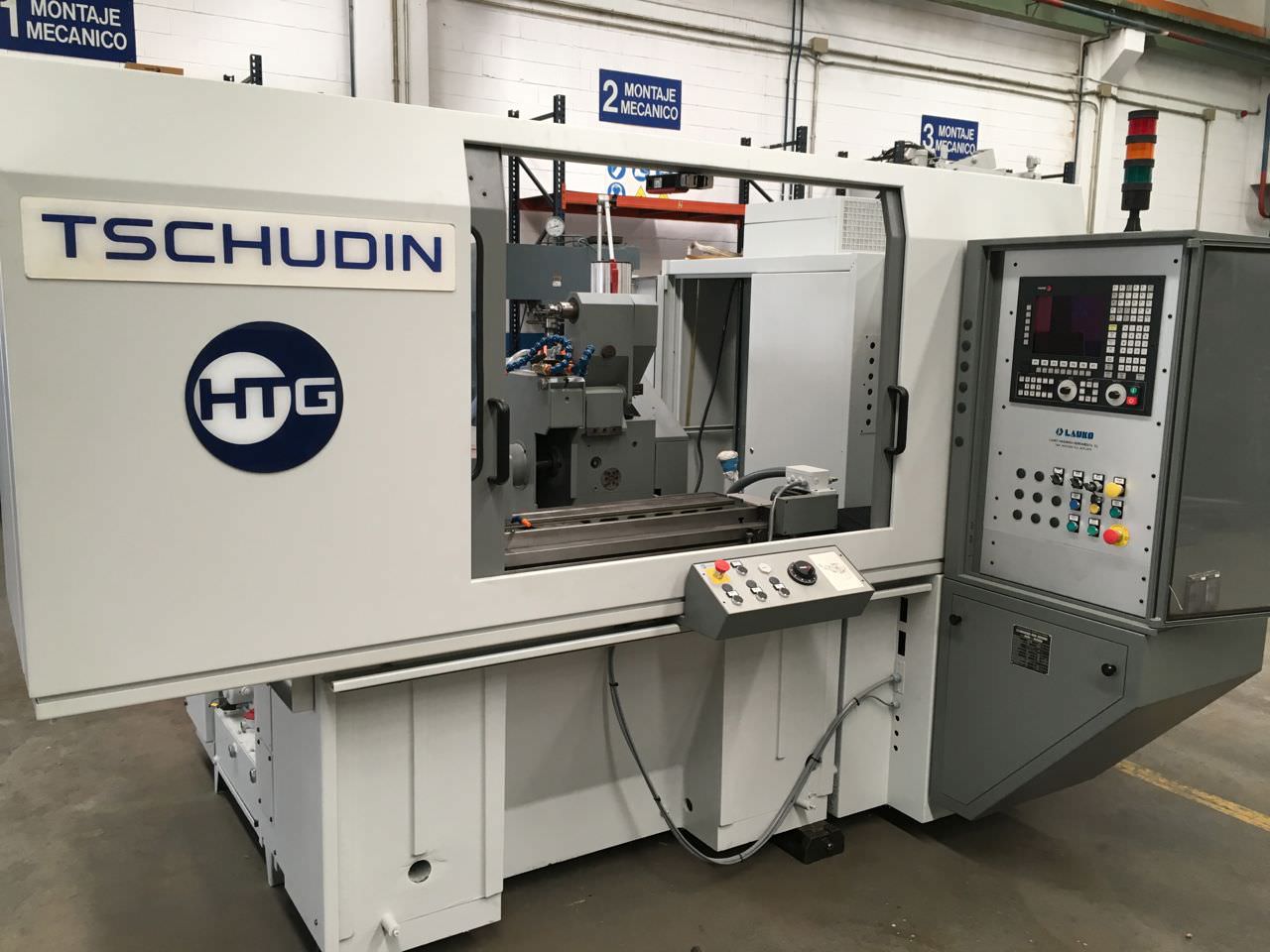

TSCHUDIN htg 22
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND11602
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione
• Center height 100 mm
• Center distance 650 mm
• Grinding length 620 mm
• Grinding wheel Ø x width 500 x 80 mm
• Grinding spindle speeds up to 1150-1600 r / min.
• Grinding carriag ...
• Center height 100 mm
• Center distance 650 mm
• Grinding length 620 mm
• Grinding wheel Ø x width 500 x 80 mm
• Grinding spindle speeds up to 1150-1600 r / min.
• Grinding carriage expressway 60 mm
• Grinding slide swiveling about + / - 3 °
• Rapid traverse of the cross slide max. 3,000 mm
• Workpiece spindle head rotates 360 °
• Infinitely variable speeds. 50-500 U / min

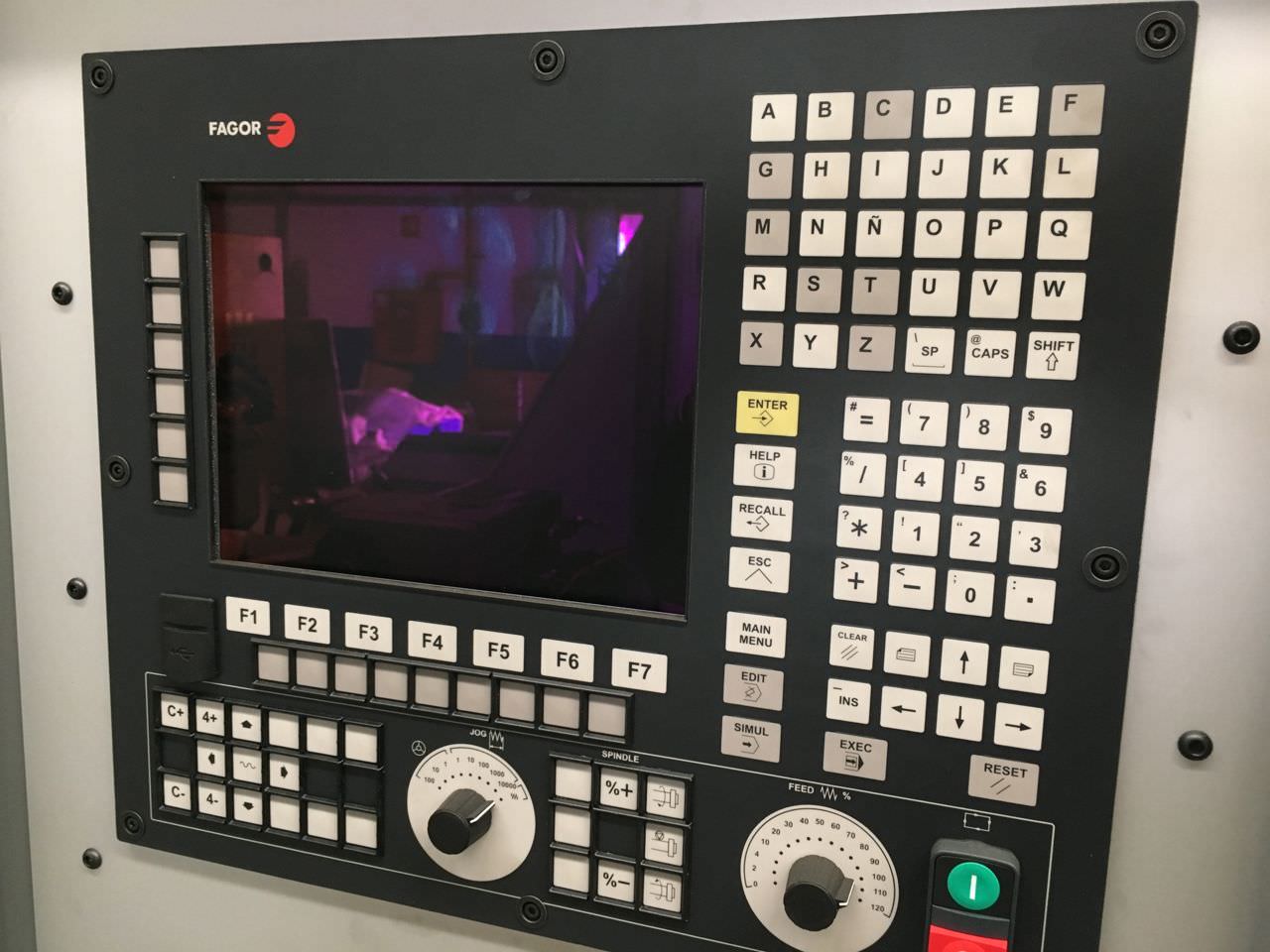

• CNC Fagor 8055
• Coolant system with paper band filter
