SFX EDM8C
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND13660
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione
Product description:

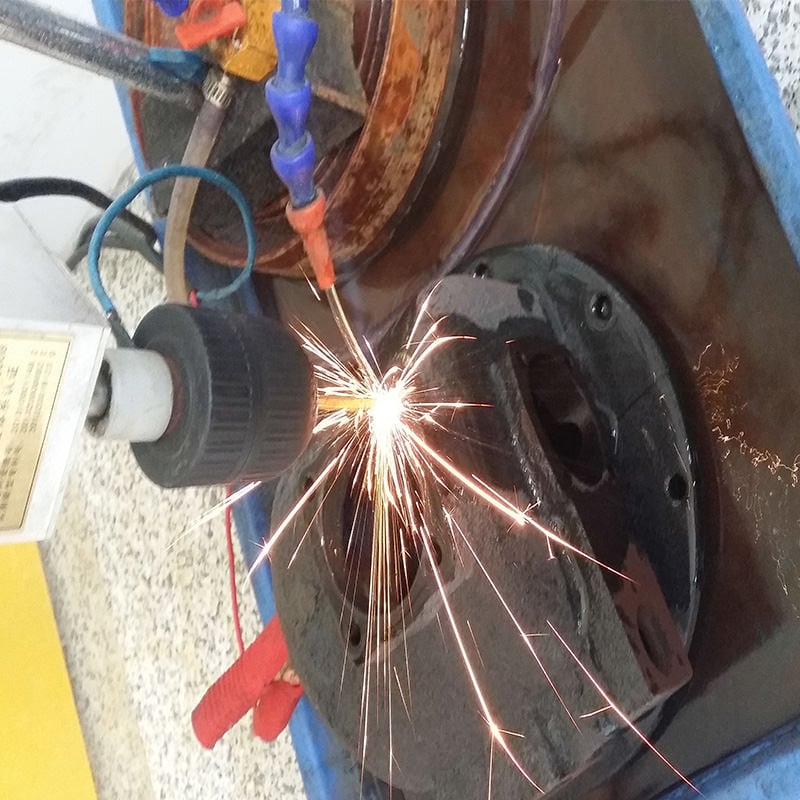

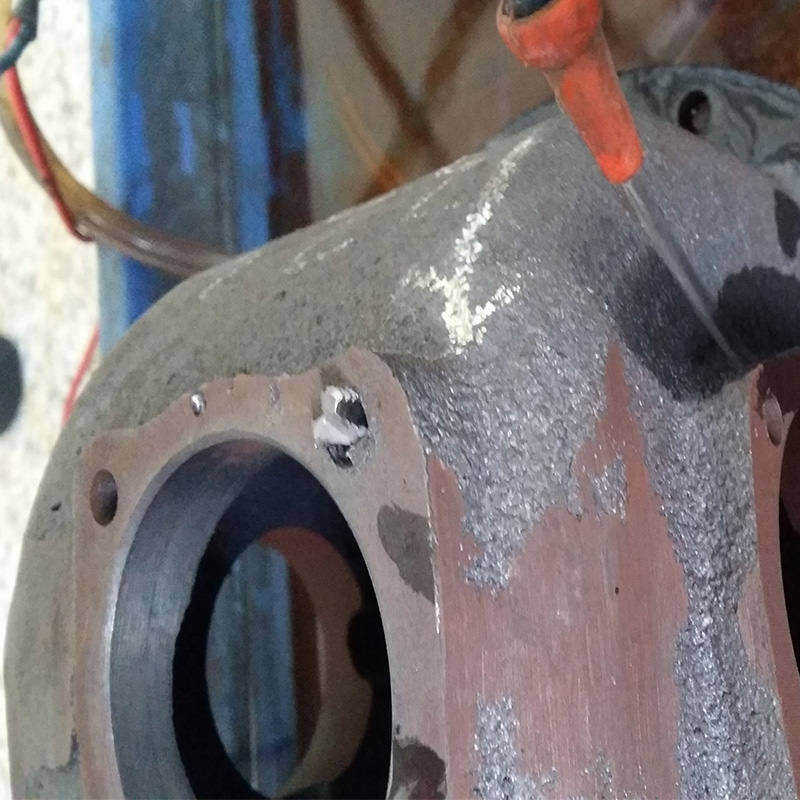

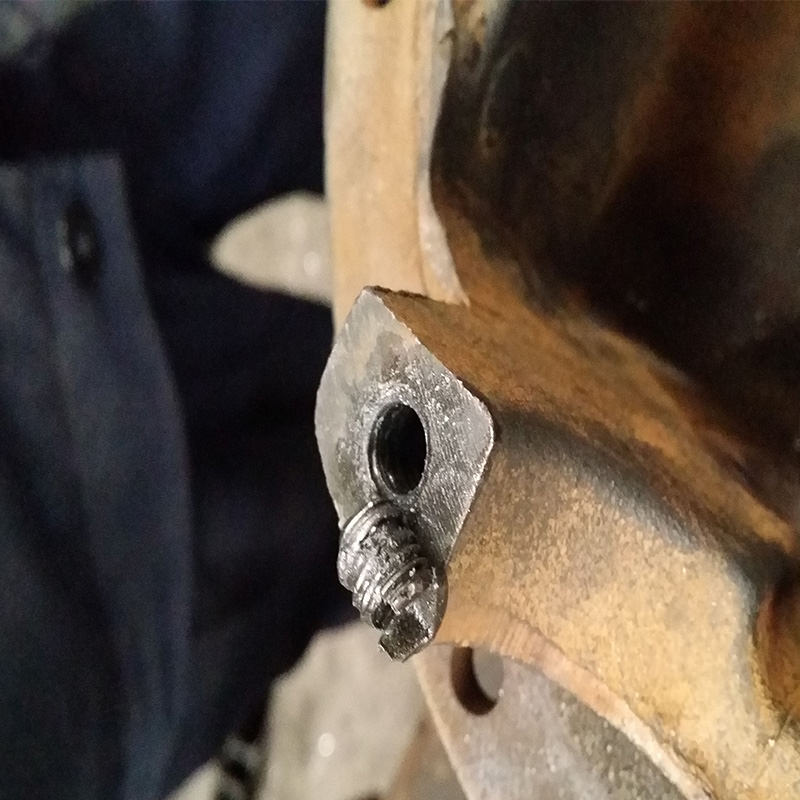

1.This machine is designed to conveniently remove broken taps, bolts, drills, etc, The size range is M2 to M48 (M2 - M30 for EDM8C model);
2.This machine works by Spark Erosion ...
Product description:
1.This machine is designed to conveniently remove broken taps, bolts, drills, etc, The size range is M2 to M48 (M2 - M30 for EDM8C model);
2.This machine works by Spark Erosion principle, electrode size is half of the broken tap size, no contact with the work piece, then no damage to work piece.
3.This machine has a submersible pump that provide the dielectric (Tap water) to the work area, it could remove the disintegrated particles from the work piece to improve the burn time;
4.There is a vibration function that quite improve the processing time;
5.With its small size and light weight, it has special superiority for processing on large size work piece. Separated work head could rotate in any direction, very helpful for complex machining.
6.Automation: Auto feed; Depth setting (stop at a specific depth); Alarm and auto retract.
Product specification:

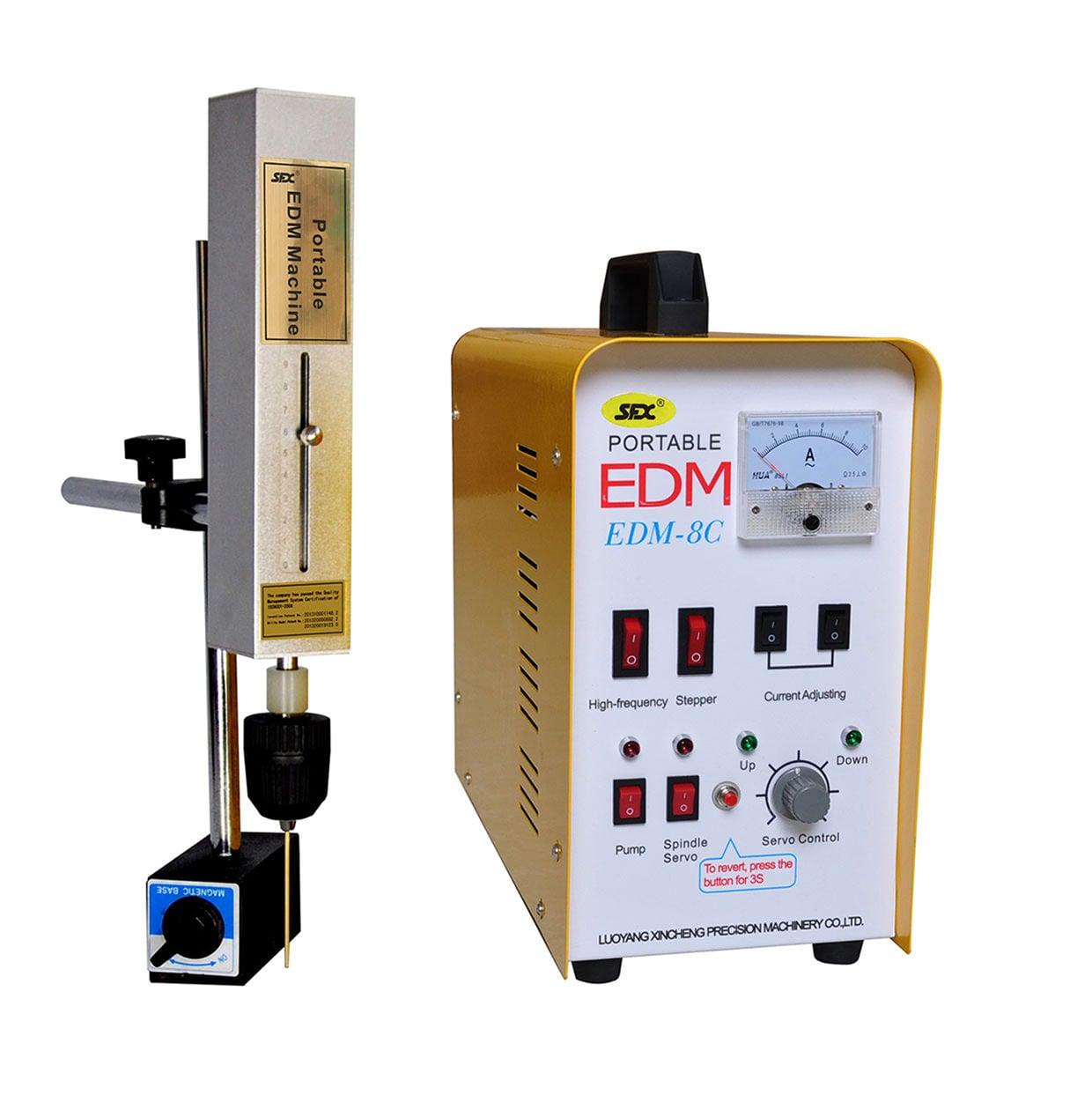

Name ----------------------- Broken tap remover EDM-8C
Input Voltage (V)-------------- AC110/220V 50/ 60Hz
Secondary Output Voltage (V)--- 10-70
Electrode Diameter Range------- 1-10mm
Max Travel of working head (mm)- 70mm
Max Processing Speed(mm/ min)--- 1mm/min
Working Liquid ---------------- Tap water
Power Frequency --------------- 50Hz
Remove Taps Sizes(mm)----------- M2-M30
Machine Size (L*W*H mm) -------- 380*160*300mm
Package size ------------------- 498*308*392mm
Net weight(KG) ---------------- 16KG
Gross weight ----------------- 18KG
Contact: Amy Nie Mobile: +86 13213632729 Skype: amynie2015 Email: amynie2015@outlook.com
