JED BLACK Jed Black 12 14 CNC VTL
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND14254
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione

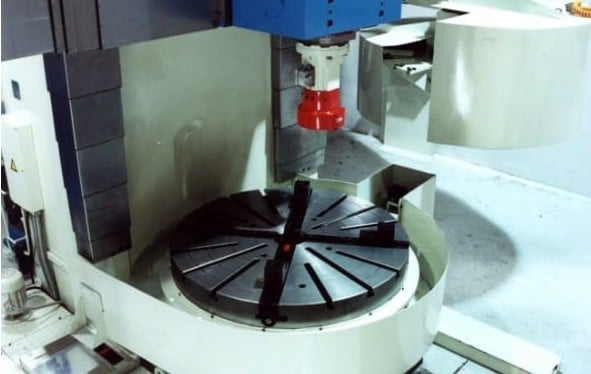

JED BLACK CNC SINGLE COLUMN VERTICAL TURNING LATHE MODEL 12 14
THE MACHINE IS DESIGNED FOR MACHINING MEDIUM AND LARGE SERIES OF WORKPIECES, BY ROUGHING AND FINISHING OPERATIONS OF:
CYLINDRICAL TURN ...
JED BLACK CNC SINGLE COLUMN VERTICAL TURNING LATHE MODEL 12 14
THE MACHINE IS DESIGNED FOR MACHINING MEDIUM AND LARGE SERIES OF WORKPIECES, BY ROUGHING AND FINISHING OPERATIONS OF:
CYLINDRICAL TURNING - INNER AND OUTER
TWO-DIMENSIONAL CONTOUR TURNING
FACING WITH CONSTANT SPEED
THREADING
THE MACHINE IS INTENDED FOR MACHINING A WIDE RANGE OF WORKPIECES’ MATERIALS, INCLUDING LIGHT ALLOY, CAST IRON, MILD STEEL, STAINLESS STEEL, HIGH-TEMPERATURE ALLOY, HIGH-STRENGTH MATERIAL SUCH AS TITANIUM AND ANY METAL SPRAY COMPOSITIONS AND IS ABLE TO OPERATE USING CERAMIC INSERT CUTTING TOOLS.
TECHNICAL CHARACTERISTICS
TABLE DIAMETER……………………………………………………………………1,200 MM
SWING…………………………………………………………………………………1,400 MM
HEIGHT UNDER CROSS RAIL………………………………………………………900 MM
HEIGHT UNDER STANDARD TOOLHOLDER…………………………………….800 MM
MAX. WEIGHT OF WORKPIECE……………………………………………........6,000 KGS
FANUC / SIEMENS MAIN DRIVE MOTOR……………………………………..37 / 45 KW
SPEED RANGE OF TABLE…………………………………………………………..1 – 300 RPM
CROSS RAIL TRAVEL……………………………………………VERTICAL……...600 MM
CROSS RAIL SPEED………………………………………………………………….400 MM/MIN

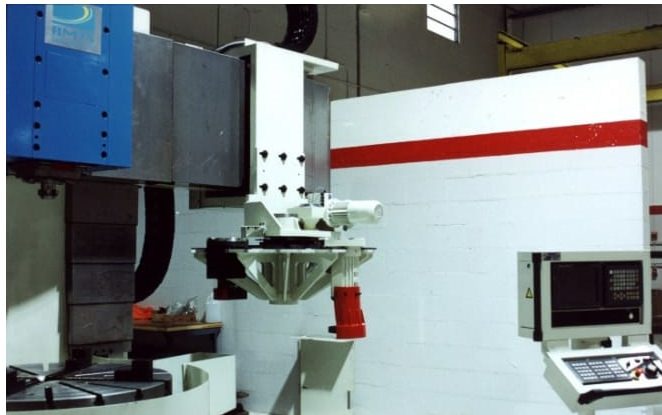

AUTOMATIC TOOL CHANGER…………………………………………………….DISK TYPE – 12 SEATS

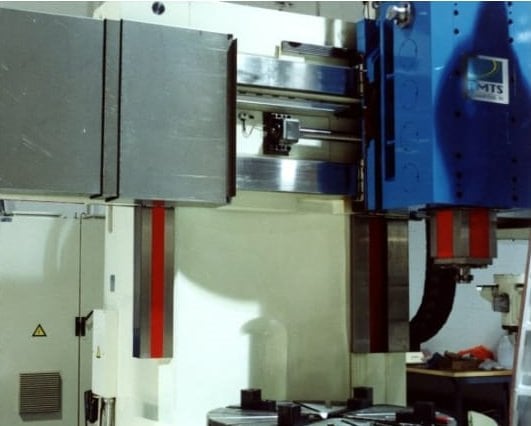

VERTICAL RAIL HEAD.……………………………………………………………..RAM TYPE
VERTICAL RAILHEAD RAM SECTION…………………………………………….250 X 250 MM
X AXIS. RAILHEAD DISPLACEMENT……………………………………………..1,626 MM
X AXIS. RAILHEAD LH LIMIT POSITION………………………………………… - 508 MM
X AXIS. RAILHEAD RH LIMIT POSITION………………………………………… 1,118 MM
Z AXIS. RAILHEAD RAM VERTICAL DISPLACEMENT………………………….800 MM
Z AXIS. RAILHEAD RAM UPPER LIMIT DISPLACEMENT…………………….0 MM
WORKING FEEDS RANGE………………………………………………………..1 – 4,000 MM/MIN
FAST DISPLACEMENT SPEEDS…………………………………………………..8,000 MM/MIN
