1MAI PLOIESTI
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND14519
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione

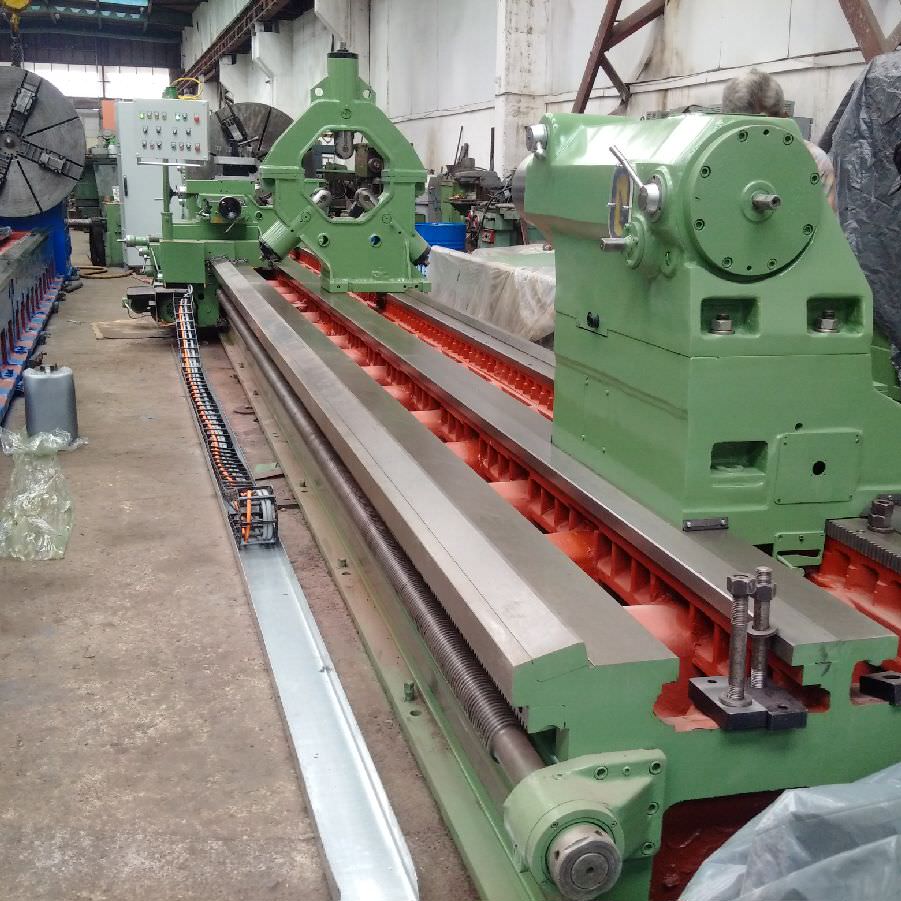

TORNIO PARALLELO SN1400X10000 / 1 Mai Ploiesti Romania
Status : completely retrofitted
Manufacturer: 1MAI PLOIESTI (Romania)
Year of manufacture: 1982
Main technical data :
• face plate dia ...
TORNIO PARALLELO SN1400X10000 / 1 Mai Ploiesti Romania
Status : completely retrofitted
Manufacturer: 1MAI PLOIESTI (Romania)
Year of manufacture: 1982
Main technical data :
• face plate diameter: 1400mm
0oqr 7v3uvkharrzgpzt Tra
• max. swing over bed: 1390mm
• max. swing over slide: 1100mm
• height of centers: 700mm
• distance between centers: 10000mm
• Weight of the workpiece: 16 to
• speed range of the main spindle: 0.8 – 160rpm
• main drive motor: 55KW
• longitudinal feed: 0.4 – 480 mm/min
• transversal feed: 0.2 – 240 mm/min
• intermediate slide feed: 0.15 – 180 mm/min
• intermediate slide travel: 500mm
• cross slide travel: 520mm
• tool holder travel: 175mm
• Machine weight: ab. 29500kg
Standard accessories :
- 4 jaw face plate
- 2 steady rests
Following operations were made to the lathe on retrofitting:
- New casted bedway;
- All the guideways of the bed were new grinded;
- All the friction surfaces were plated with Turcite;
- The oiling installation was repaired and old parts were replaced;
- The gear box, carriage, slides and tail stock were dismantled, checked and replaced the worn out one;
- New electrical cabinet with Schrack components and new cables and cables support were mounted;
- 55 KW DC motor with new Parker driver;
- Feed DC motor with new Parker driver;
- New control panel;
- The precision of the lathe like a new machine as per ISO norms;
- The machine new painted
