1MAI PLOIESTI 2016
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND14554
Dati tecnici
- Condizione: usato
- Anno: 2016
Descrizione

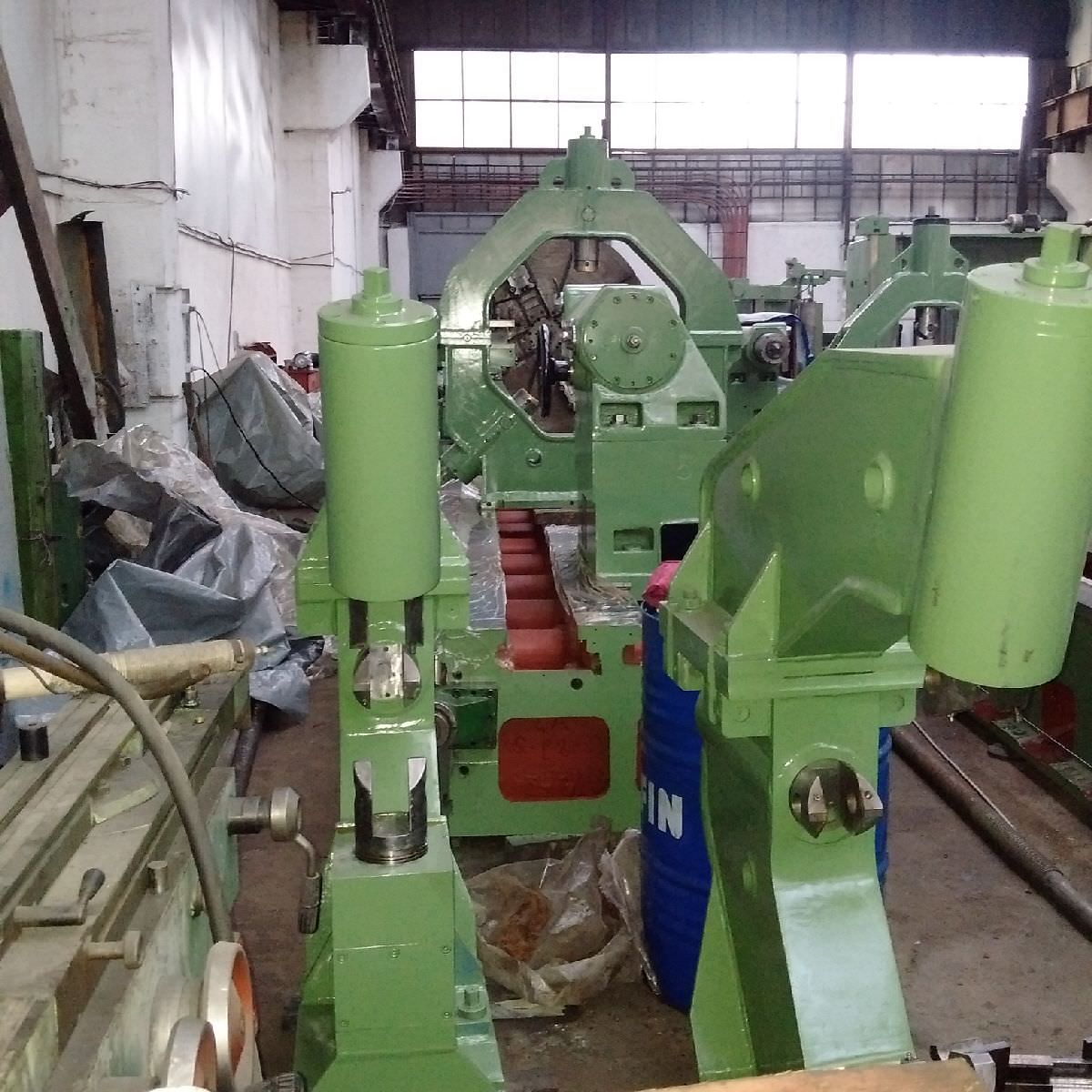

Heavy duty lathe SN1600X5000 ( torni paralleli )
Status : Retrofitted
Manufacturer: 1MAI PLOIESTI (Romania)
Completely retrofitted in 2016
Main technical data :
- face plate diameter: 1600mm
...
Heavy duty lathe SN1600X5000 ( torni paralleli )
Status : Retrofitted
Manufacturer: 1MAI PLOIESTI (Romania)
Completely retrofitted in 2016
Main technical data :
- face plate diameter: 1600mm
- max. swing over bed: 1580mm
• max. swing over slide: 1300mm
• max. turning diameter of steady rest: 900mm
• height of centers: 800mm
• distance between centers: 5000mm
• Max. weight of the workpiece: 16to • speed range of the main spindle: 0.8 – 160rpm
• main drive motor: 55KW • longitudinal feed: 0.4 – 480 mm/min
• transversal feed: 0.2 – 240 mm/min
• intermediate slide feed: 0.15 – 180 mm/min
• intermediate slide travel: 500mm
• cross slide travel: 520mm
• tool holder travel: 175mm
• Machine weight: ab. 26800kg
Boov3qb 8eejzozrsw
Standard accessories :
- 4 jaw face plate
- milling attachment
Following operations were made to the lathe on retrofitting:
- New casted bedway;
- All the guideways of the bed were new grinded;
- All the friction surfaces are plated;
- The oiling installation is repaired ;
- The gear box, carriage, slides and tail stock were dismantled, checked all the parts and replaced the worn out one;
- New electrical cabinet with Schrack components and new cables and cables support;
- 55 KW old DC motor with new Siemens driver;
- New Siemens feed motors with Siemens driver ;
- New control panel;
- The machine new painted
