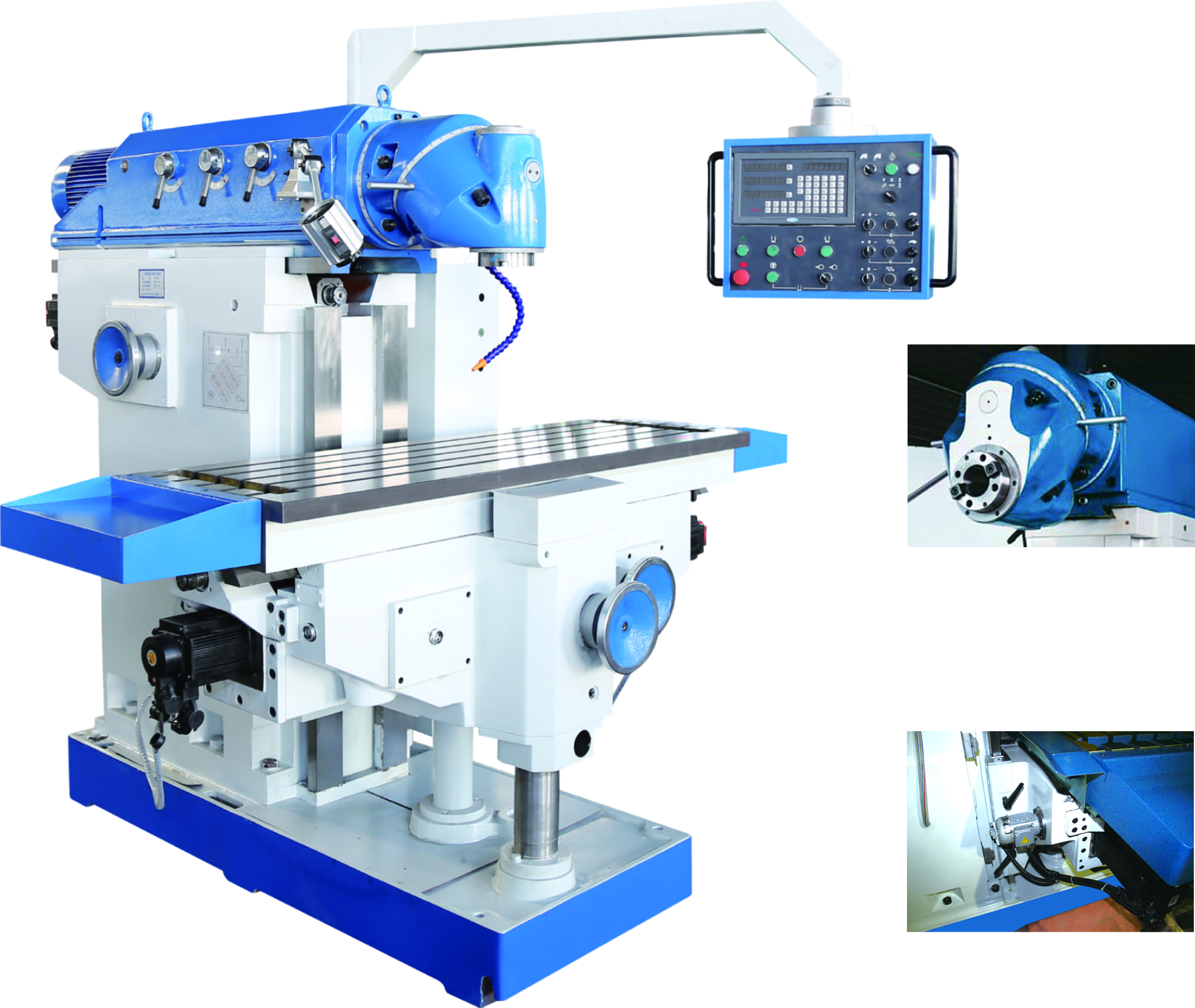

TENGZHOU XILI X5746
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND15278
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione
X5746 Table: 460x1235mm, X/Y/Z-axis stroke: 900/650/450mm, V. spindle taper: NT40, V. spindle speed: (27 steps) 30-2050rpm, X/Y/Z-axis feed rate: 10-1000/10-1000/6-640mm/min., variable (servo motor dr ...
X5746 Table: 460x1235mm, X/Y/Z-axis stroke: 900/650/450mm, V. spindle taper: NT40, V. spindle speed: (27 steps) 30-2050rpm, X/Y/Z-axis feed rate: 10-1000/10-1000/6-640mm/min., variable (servo motor drive), V. spindle motor: 5.5kW, Torque of X/Y/Z-axis feed motor: 15/15/18 Nm
X5750 Table: 500x1600mm, X/Y/Z-axis stroke: 1200/700/500mm, V. spindle taper: NT50, V. spindle speed: (27 steps) 30-2050rpm, X/Y/Z-axis feed rate: 10-1000/10-1000/5-500mm/min., variable (servo motor drive), V. spindle motor: 7.5kW, Torque of X/Y/Z-axis feed motor: 15/15/18 Nm
X5750A Table: 500x2000mm, X/Y/Z-axis stroke: 1400/700/500mm, V. spindle taper: NT50, V. spindle speed: (27 steps) 30-2050rpm, X/Y/Z-axis feed rate: 10-1000/10-1000/5-500mm/min., variable (servo motor drive), V. spindle motor: 7.5kW, Torque of X/Y/Z-axis feed motor: 15/15/18 Nm
