MAG GIDDINGS & LEWIS VTC2500 2014
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND15449
Dati tecnici
- Condizione: usato
- Anno: 2014
Descrizione

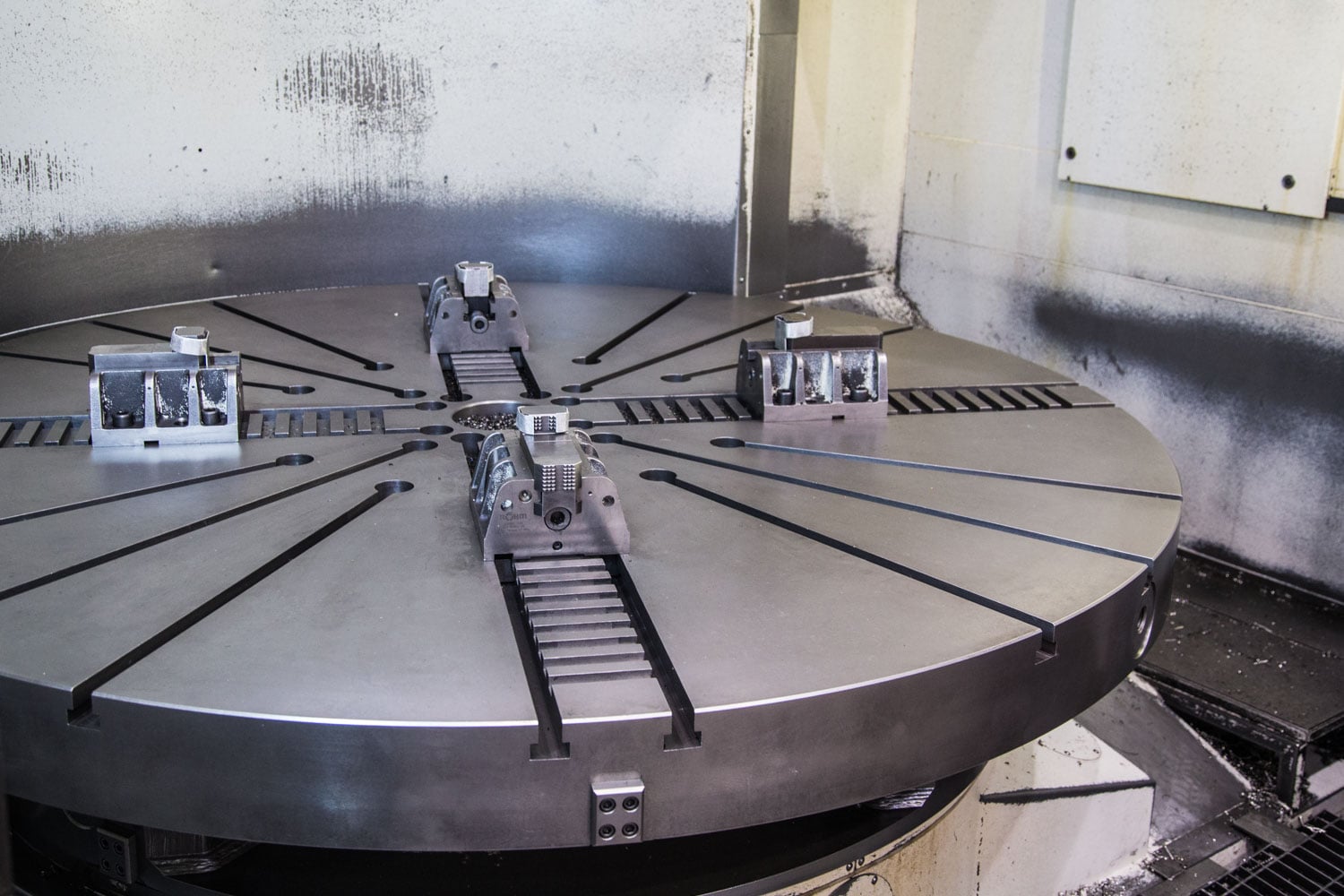

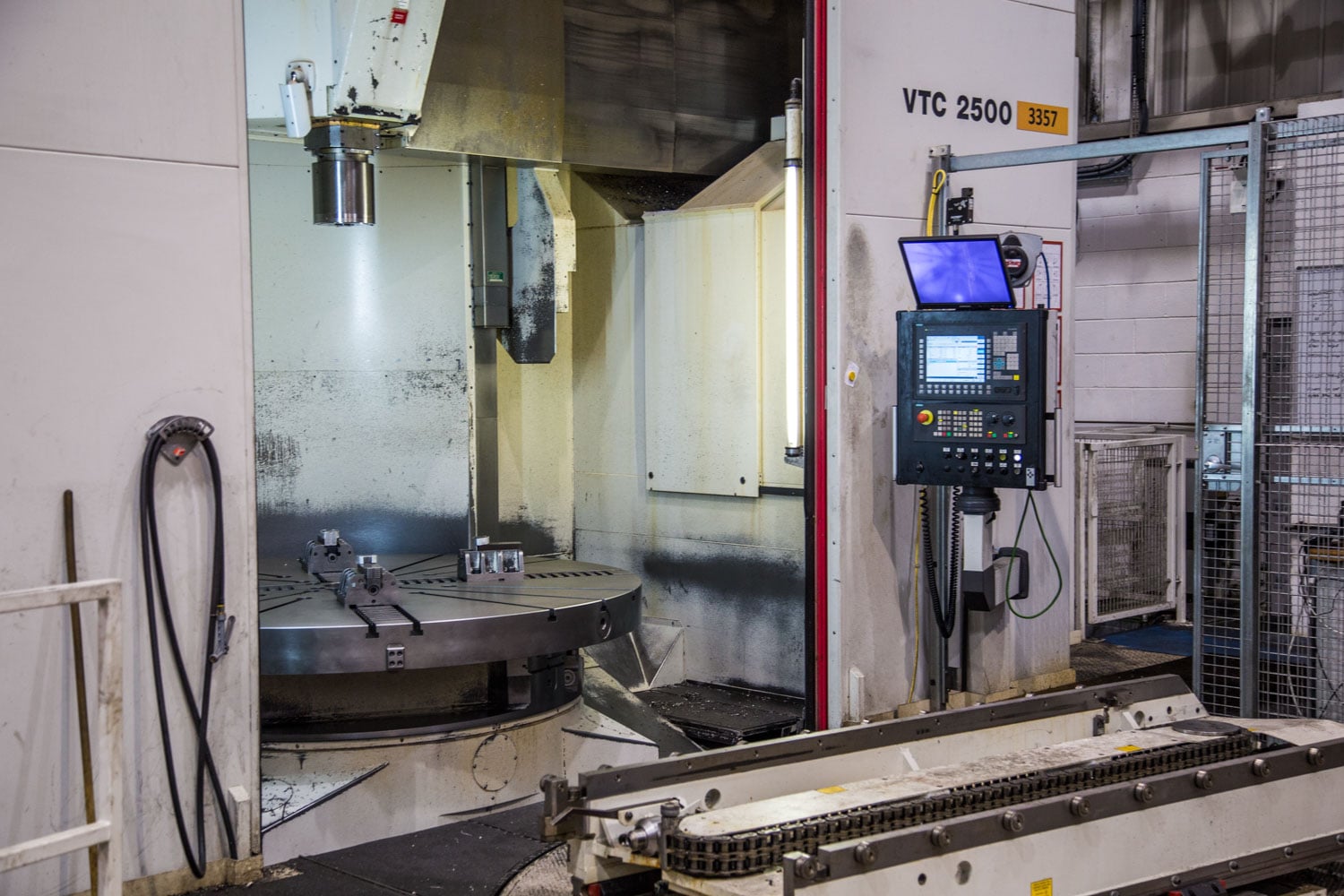

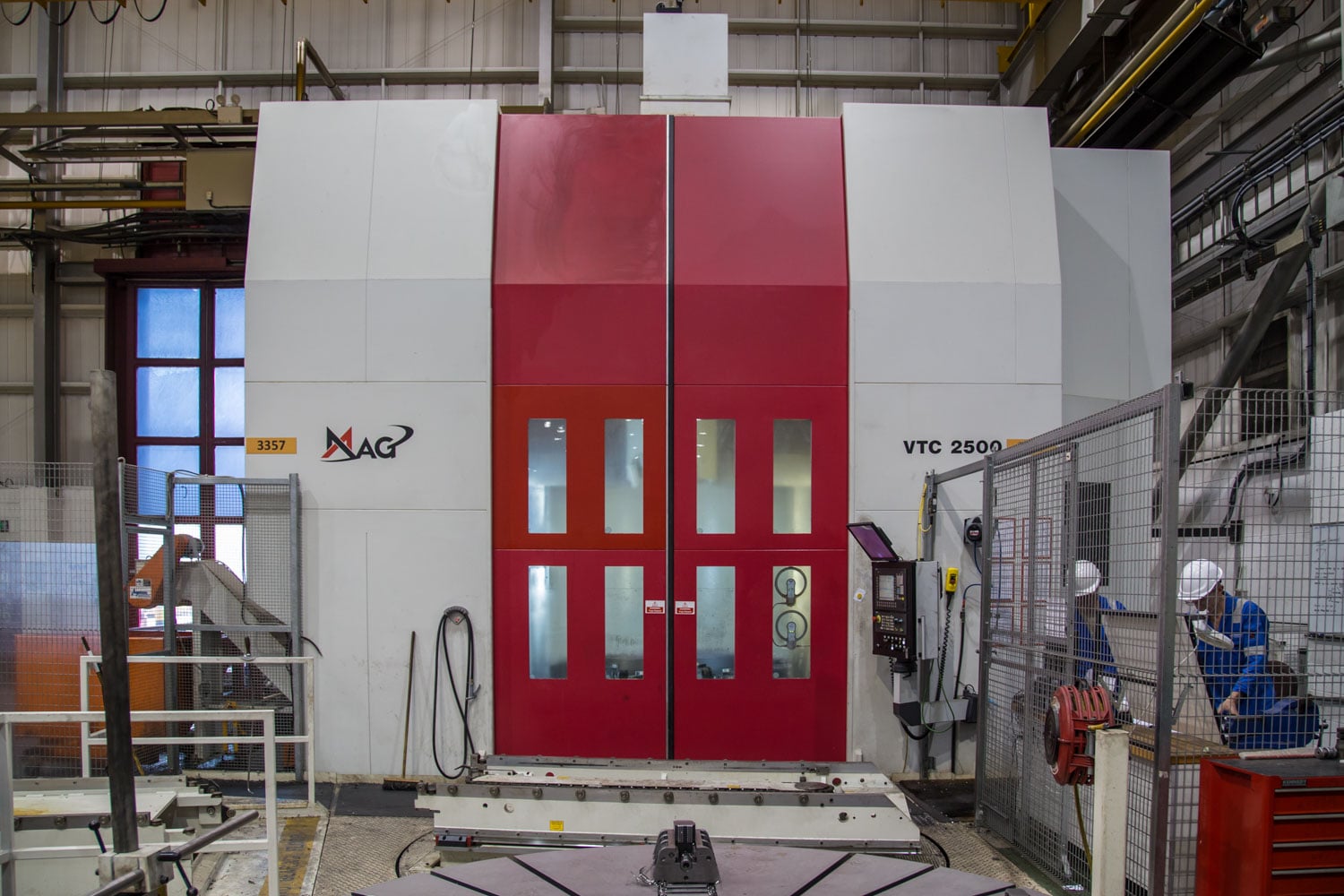

LOT 1 - MAG Model VTC2500 CNC Twin Pallet Vertical Turning Centre. Siemens 840DSI Solution Line. Year 2014 (Plant No.3357)
Chuck Size 2500mm.Maximum swing 2700mm.Maximum Work Height (chuck to ram) 33 ...
LOT 1 - MAG Model VTC2500 CNC Twin Pallet Vertical Turning Centre. Siemens 840DSI Solution Line. Year 2014 (Plant No.3357)
Chuck Size 2500mm.Maximum swing 2700mm.Maximum Work Height (chuck to ram) 3300mm.Table speeds 1-200 rpm. Live Spindle Speeds 6-2000 rpm. Live Head Attachment to 4,000 rpm. Z Axis Ram Travel 1750mm. Ram Section 250mm x 250mm. C Axis - 360°contouring. Rapids X&Z 20,000mm/min. Live Spindle Power 33kW. 25 Auto Toolchanger (5 Wedgeloc, 1 live spindle).Main Drive 84 kW. Through Spindle Coolant. Flush Coolant 20 bar. High Pressure Coolant 70 bar. Renishaw HPMA Tool Probe (motorised arm). Renishaw RPM60M Job Probe. Balluf Chip & Inspection Swarf Conveyor.Siemens 840DSI Solution Line Control. Live camera & screen.Tooling Package.
MACHINE FOR SALE BY PRIVATE TREATY SALE EX PLANT, LEEDS, UK
