DORRIES SCHARMANN VC2800/280 2002
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND15451
Dati tecnici
- Condizione: usato
- Anno: 2002
Descrizione

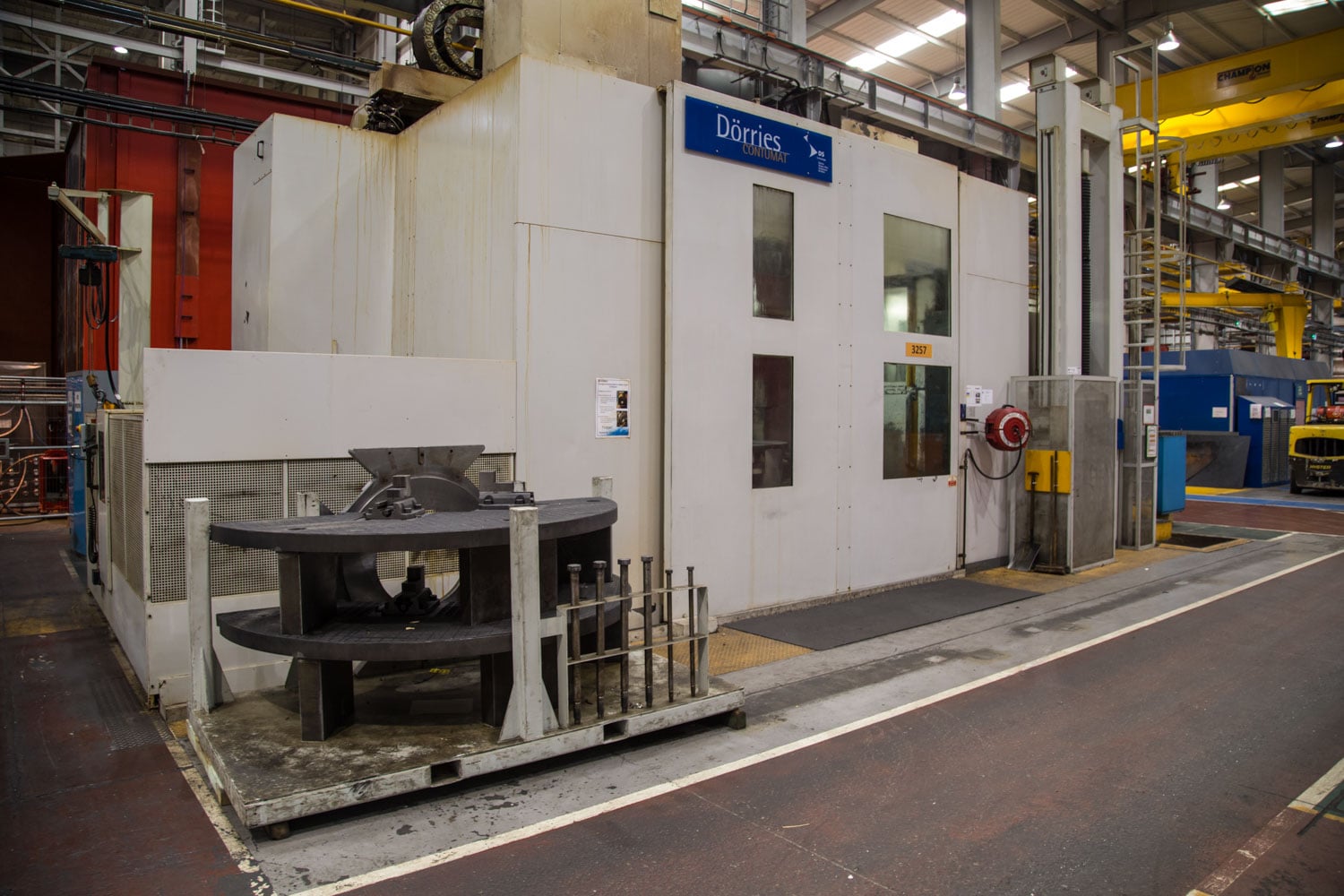

LOT 3 - DORRIES SCHARMANN Contumat VC 2800/280 CNC Vertical Turning Centre.Siemens 840D Powerline. Year 2002. (Plant No.3257)
Chuck Size 2800mm. Hollow Spindle 880mm. Max Swing 2800mm.Max Work Height ...
LOT 3 - DORRIES SCHARMANN Contumat VC 2800/280 CNC Vertical Turning Centre.Siemens 840D Powerline. Year 2002. (Plant No.3257)
Chuck Size 2800mm. Hollow Spindle 880mm. Max Swing 2800mm.Max Work Height 3400mm.Max Chuck Load 25,000Kg. Ram stroke 2500mm. Ram Section 300mm x 300mm. Chuck speeds 0.3 - 180 rpm. Live Spindle Speeds 6 - 2000 rpm. Main Drive 2 x 60kW. Milling Power 30kW.Rapid Feedrate 1200mm/min. Through Spindle Coolant. ATC 30. Elevating Operators Enclosed Platform.Swarf Conveyor.
MACHINE FOR SALE BY PRIVATE TREATY SALE EX PLANT, LEEDS, UK
