GIDDINGS & LEWIS H60 1997
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND15478
Dati tecnici
- Condizione: usato
- Anno: 1997
Descrizione

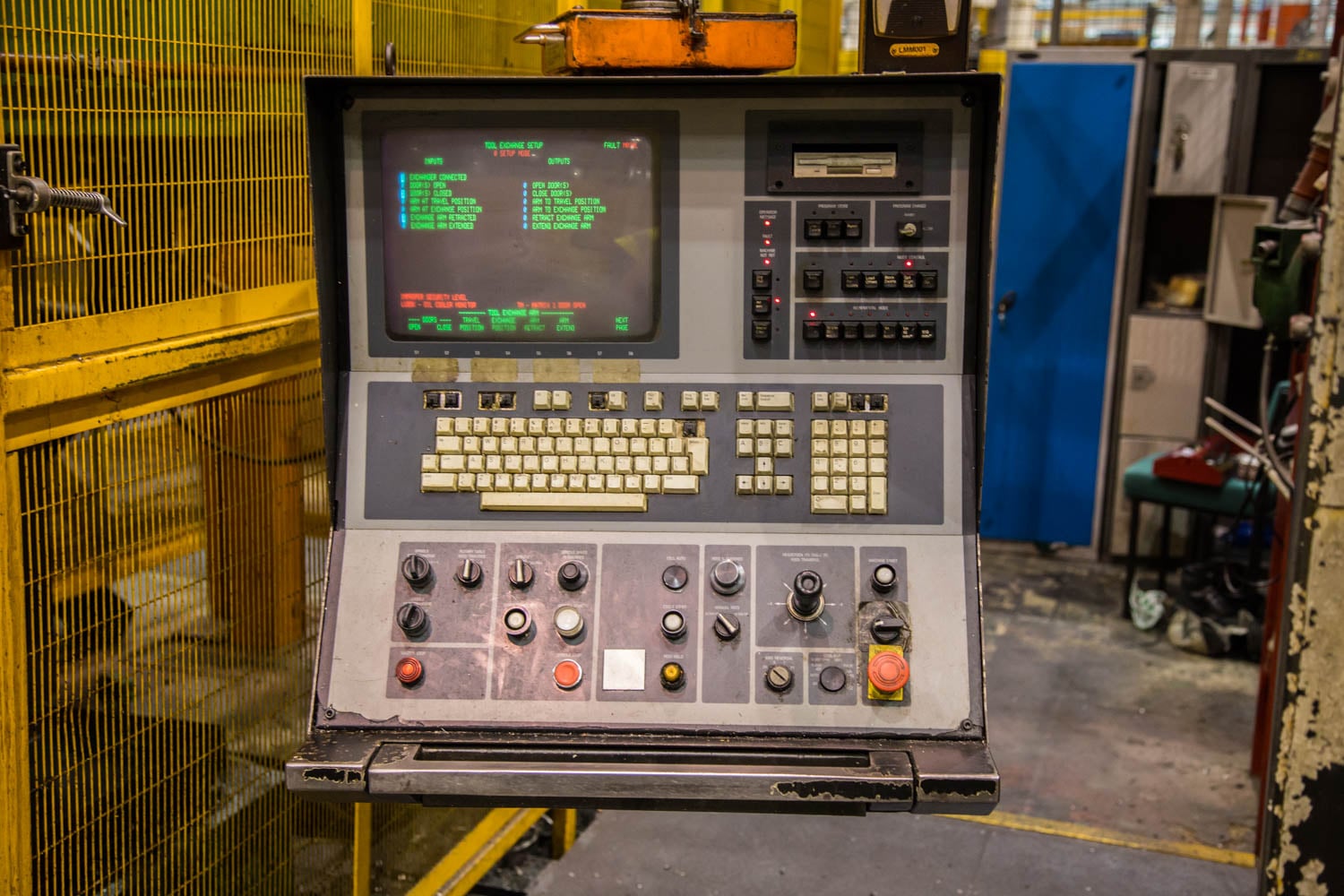

LOT 18 - GIDDINGS & LEWIS H60 CNC Table Type Horizontal Borer. Numeripath 800M. Year 1997. (Plant No.3239)
Spindle dia. 152mm. Spindle Taper SK50. Spindle Speeds 9 - 2,200 rpm. Spindle power 30kW. Ta ...
LOT 18 - GIDDINGS & LEWIS H60 CNC Table Type Horizontal Borer. Numeripath 800M. Year 1997. (Plant No.3239)

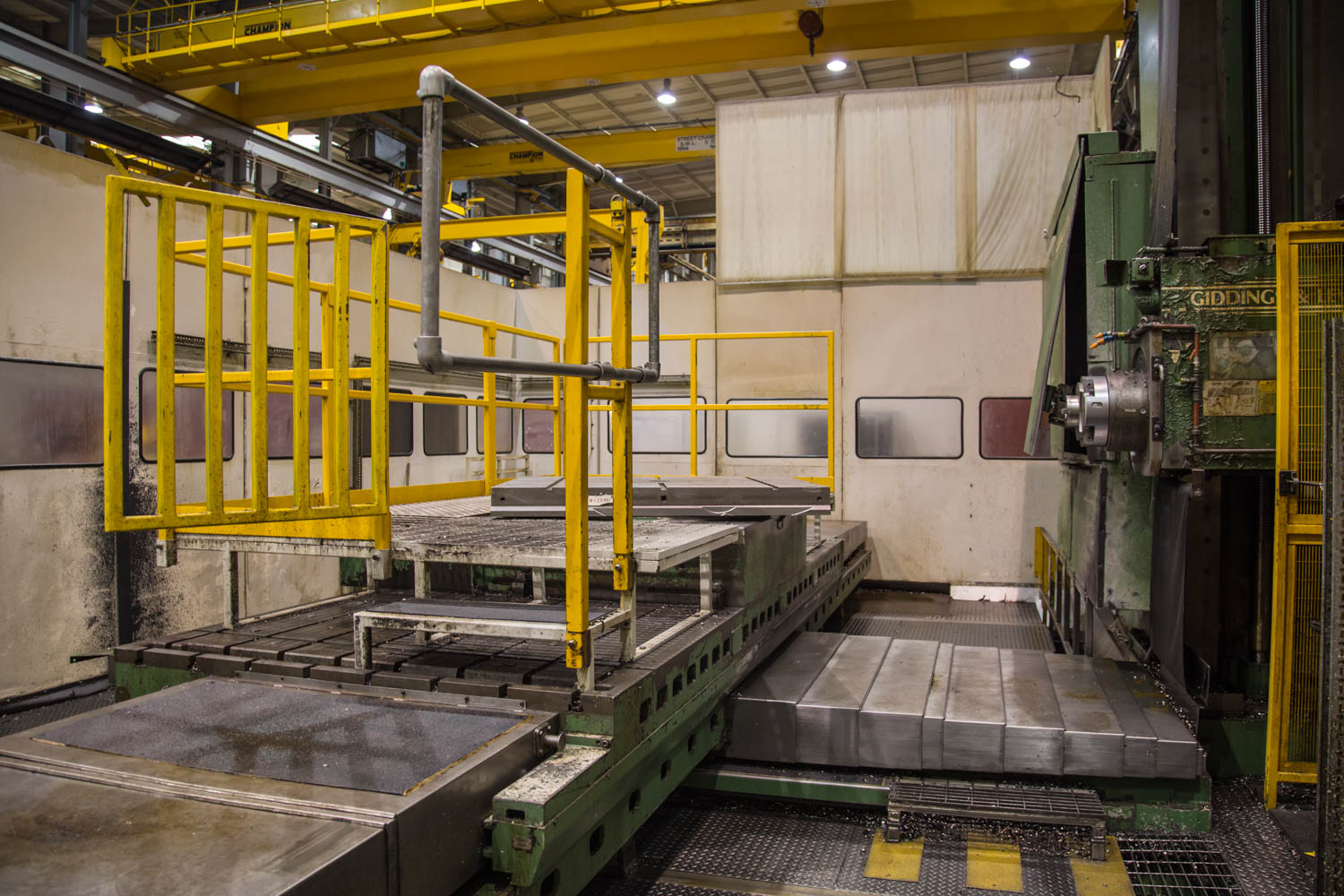

Spindle dia. 152mm. Spindle Taper SK50. Spindle Speeds 9 - 2,200 rpm. Spindle power 30kW. Table Size 1828mm x 4267mm. Table loading 40 ton. CNC Index Table 1219mm x 1524mm. Table Loading 11.2 ton. X/Y/Z/W Travels 4267mm/2540mm/2921mm/1219mm.Axis 360°. ATC 100. Swarf Conveyor.
This machine can be offered “as is” or with a complete retrofit package including new motors, new drives, Siemens 840D Solution Line Control, Electrical Cabinet and CNC Rotary Table which was purchased by the client but never fitted. See Lot 19.
