cf 22 - 9670107 1996
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND15480
Dati tecnici
- Condizione: usato
- Anno: 1996
Descrizione

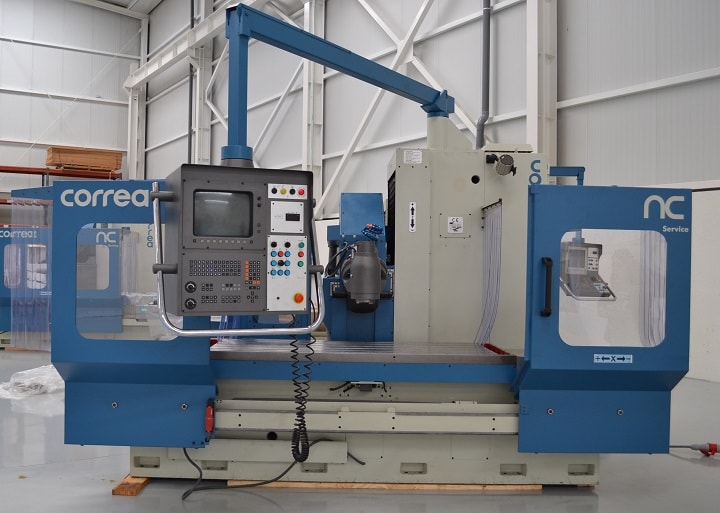

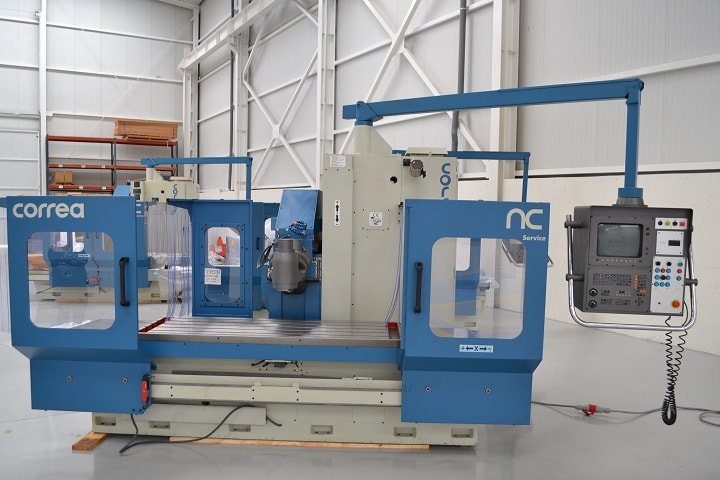

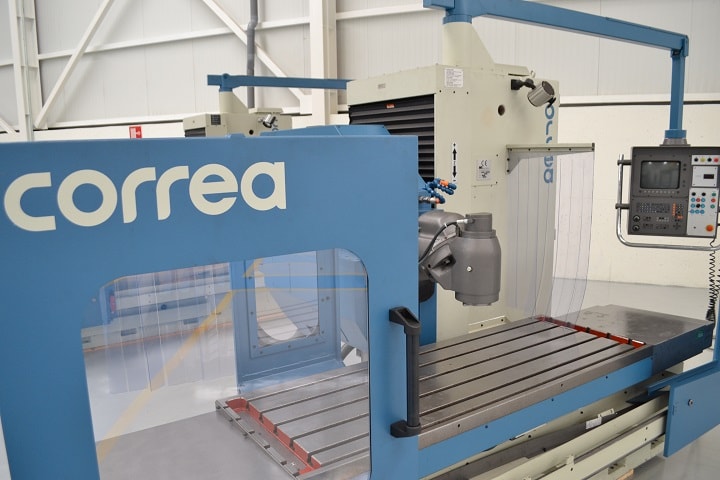

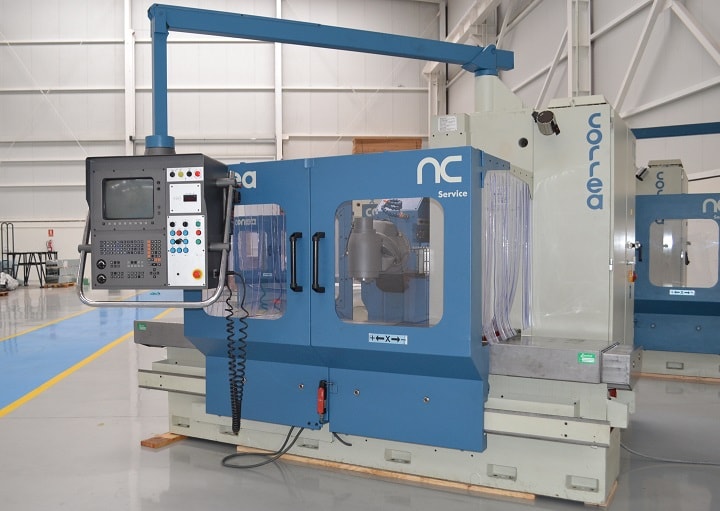

Bed milling machine CORREA CF 22
Year of manufacture: 1996
Year of refurbishment: 2017
CNC HEIDENHAIN TNC-426
Table dimensions: 2000 x 700 mm
Number of T slots: 5
T slots dimensions: 22 mm
X/ ...
Bed milling machine CORREA CF 22
Year of manufacture: 1996
Year of refurbishment: 2017
CNC HEIDENHAIN TNC-426
Table dimensions: 2000 x 700 mm
Number of T slots: 5
T slots dimensions: 22 mm
X/Y/Z axis traverse (mm): 2000 / 800 / 800
Head type: Universal Manual
Tool clamping system: Hydraulic
Taper nose: A50 DIN69871
Speed range: 20 – 4000 rpm
Spindle power: 22 kW
Feedrate: 5 / 5000 mm/min
X-Y,Z Rapid feedrate: 12000 mm/min
Max Weight on table: 3500 kg
Machine weight: 9000 kg
Machine dimensions: 5200 x 2900 x 2760 mm
Electronic Handwheel: HR-410
Guarding
Guaranteed
