a10 - 9560412
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND15481
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione

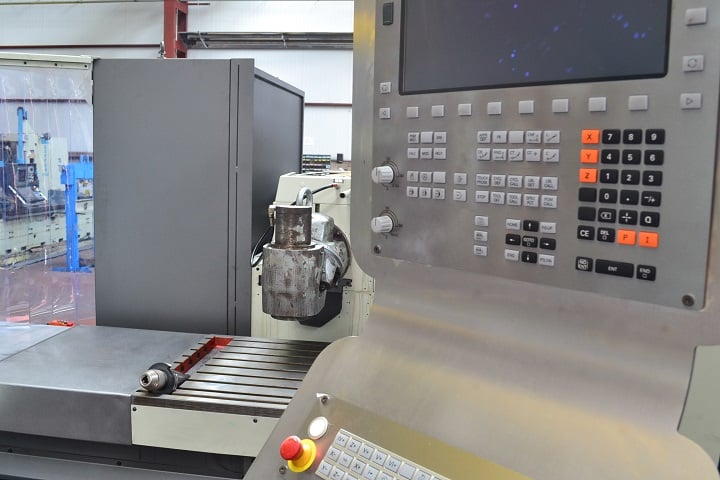

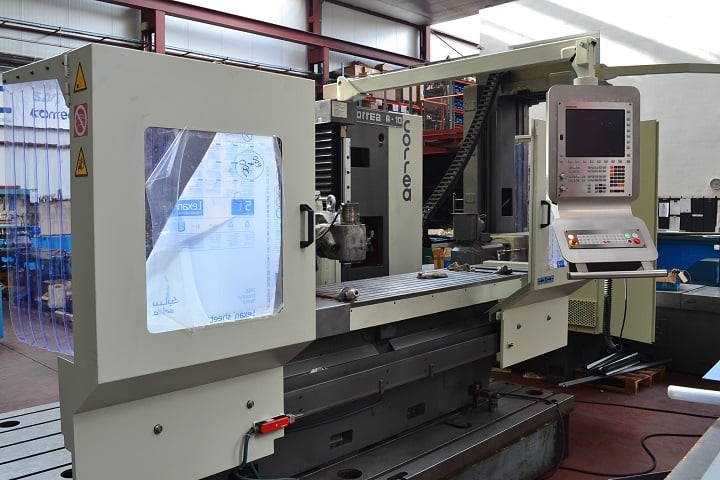

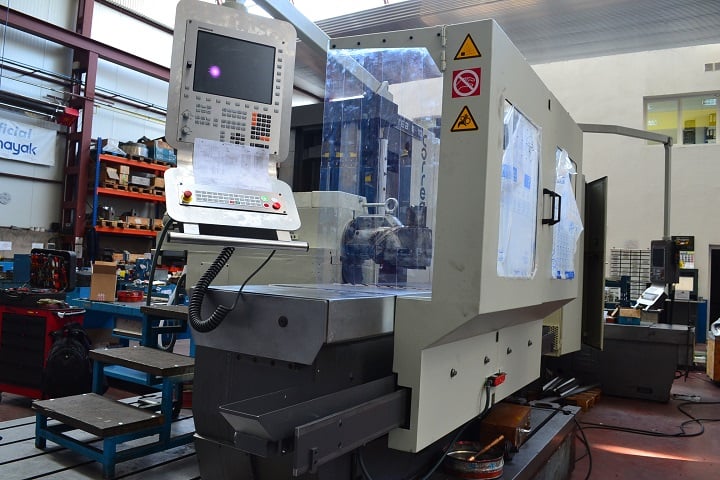

Bed milling machine CORREA A10
Year: 1987
Year of refurbish: 2017
NEW CNC Heidenhain TNC-320
Table dimensions: 1700 x 630 mm
Number of slots: 6
T slots dimensions: 18 mm
X/Y/Z axis traverse: 13 ...
Bed milling machine CORREA A10
Year: 1987
Year of refurbish: 2017
NEW CNC Heidenhain TNC-320
Table dimensions: 1700 x 630 mm
Number of slots: 6
T slots dimensions: 18 mm
X/Y/Z axis traverse: 1300 / 630 / 630 mm
Head type: Universal Manual DM16
Tool clamping system: Hydraulic
Taper nose: ISO 50
Speed range: 80 - 2500 rpm
Spindle power: 16 kW
Feedrate: 5- 5000 mm/min
Rapid feedrate: 8000 mm/min
Max weight on table: 3000 kg
Machine weight: 9000 kg
Machine dimensions: 4080 x 2629 x 2117 mm
New guarding
New electronic handwheel: HR-510
Warranty: 6 months mechanical parts
Sale price (Ex Work): On request
