ZAYER KM-11000 1992
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND20079
Dati tecnici
- Condizione: usato
- Anno: 1992
Descrizione

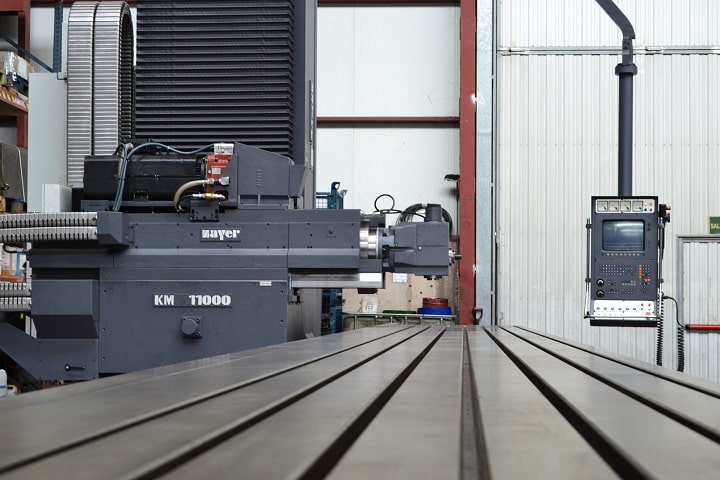

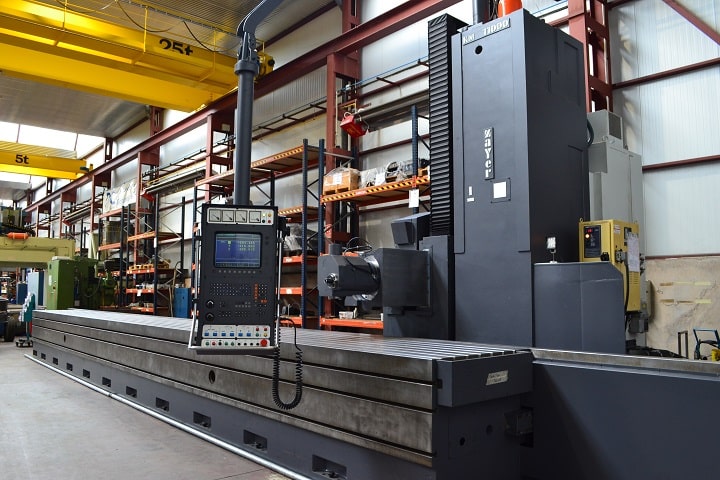

Mobile column milling machine Zayer KM 11000 (61023)
YOM: 1992
Condition: refurbished
CNC HEIDENHAIN TNC-415
Table dimensions: 11000 x 1000 mm
Number of T slots: 7
T slots dimensions: 22 mm
...
Mobile column milling machine Zayer KM 11000 (61023)
YOM: 1992
Condition: refurbished
CNC HEIDENHAIN TNC-415
Table dimensions: 11000 x 1000 mm
Number of T slots: 7
T slots dimensions: 22 mm
X axis traverse: 9300 mm
Y axis traverse: 1010 mm
Z axis traverse: 2000 mm
Head type: DM25
Tool clamping system: Hydraulic
Taper nose: ISO 50 / DIN2080
Speed range: 1800 r.p.m.
Spindle power: 34 kW
Feedrate: 6 - 5000 mm/min
Rapid feedrate (X / Y , Z): 10000 / 15000 mm/min
Max weight on table: 20000 kg
Machine weight: 48000 kg
Machine dimensions: 11000 x 4450 x 5480 mm
Coolant: external
Heidenhain electronic handwheel
Option: New guarding
Warranty: 6 months mechanical parts
Sale price (Ex Work): On request
