COWLISHAW WALKER CO S4-600-2800-300
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND20698
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione

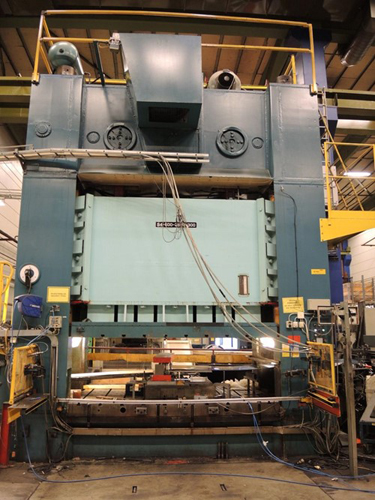

600 Ton Double Colum Mechanical Press - Serial No. 7071 - Year approx. 1973 with Coil Feed Unit APT with Press control - Stroke 300mm - Cushion 150 ton and stroke 200mm - With AP&T coilfeeders LMRF-10 ...
600 Ton Double Colum Mechanical Press - Serial No. 7071 - Year approx. 1973 with Coil Feed Unit APT with Press control - Stroke 300mm - Cushion 150 ton and stroke 200mm - With AP&T coilfeeders LMRF-1000-3,0 - IB-1000JS & UC-40-1300-5 (1994) - Max. Pressure 600 Ton - Bolster dimensions 2800 x 1700 mm - Slidedimensions 2800 x 1700 mm - Slideadjustment 200 mm - Stroke 300mm - Stroke Speed 15-30 SPM - Min/Max Shutheight stroke down 670/870 mm - Two Cushions in Slide, total 20 Ton
Cushion Stroke 25 mm - Cushion Platen 2200 x 250 mm - Three Cushions in Bed 150 Ton - Cushion Pressure total 100 Ton - Cushion Stroke 200 mm - Cushion Platen 2200 x 250 mm - Motor 46/92 kW - Overall dimensions: H (above floor)= 6500m x W= 4520mm x D = 3300mm - Weight 117 Ton - Coil Feed Unit, Mfg. APT, year 1994
Decoiler APT model UC 40-1300-5; Serail No. 1930; Year of Mfg. 1994 - Max Strip width 1300 mm; max thickness 5 mm - Coilfeed Unit APT model LMRE-1000-3,0; Serial No. 1930; Year of Mfg. 1994 - max Strip width 1000 mm; max thickness 3 mm
