CORREA Correa FPM60 (880901)
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND20853
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione

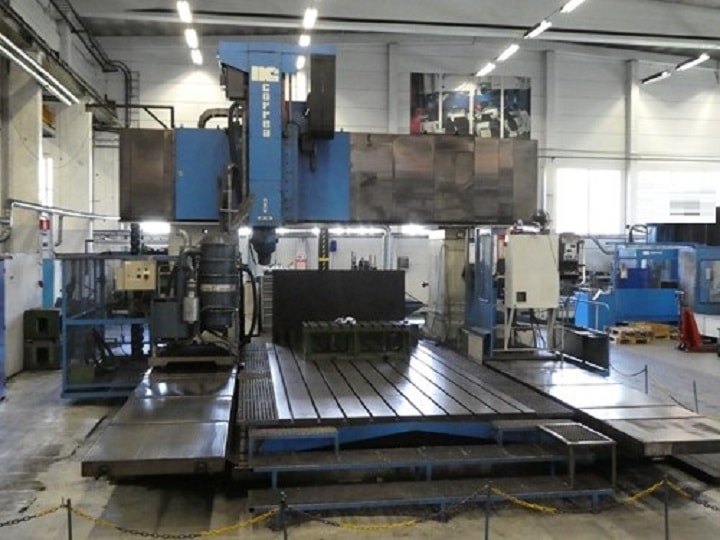

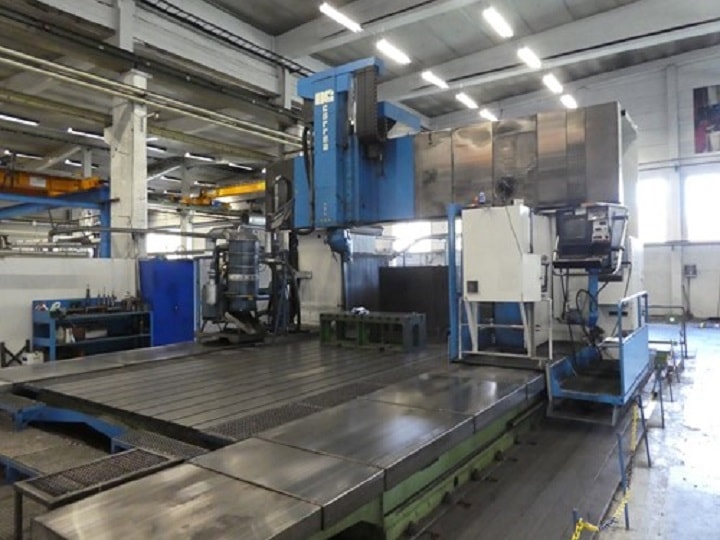

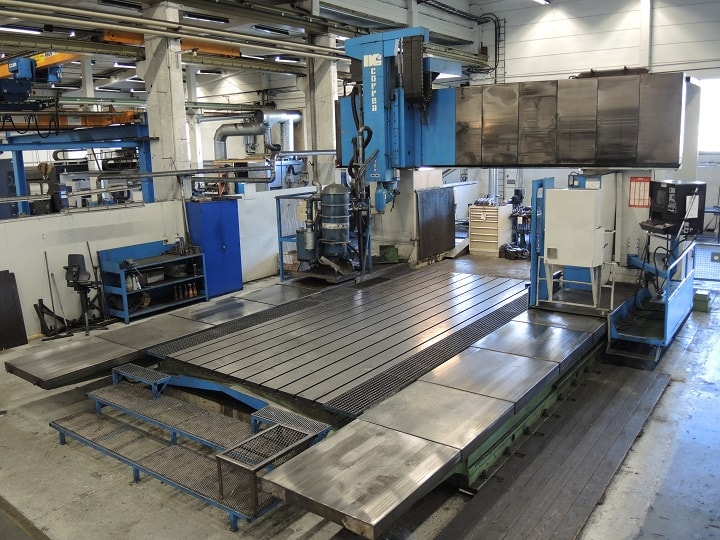

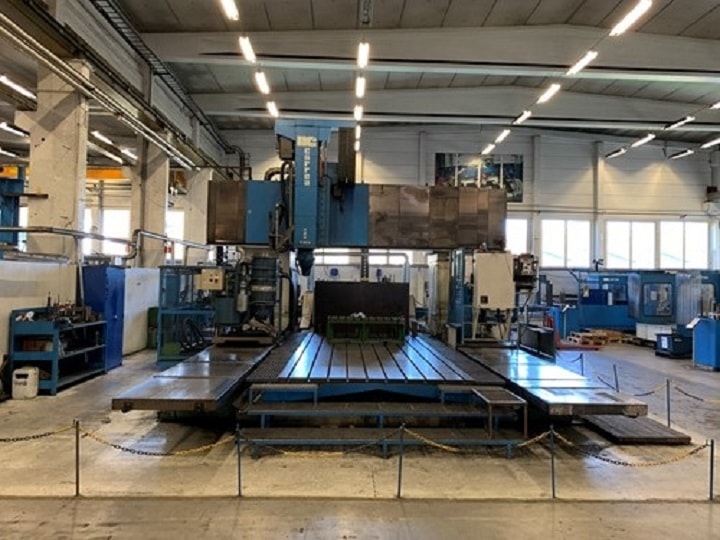

Gantry type milling machine CORREA FPM60
YOM: 1995
Year of refurbishment: 2019
Control Unit: Heidenhain TNC-426
Table dimensions: 6000 x 2500 mm
Number of T slots: 10
T slots dimensions: 22 mm ...
Gantry type milling machine CORREA FPM60
YOM: 1995
Year of refurbishment: 2019
Control Unit: Heidenhain TNC-426
Table dimensions: 6000 x 2500 mm
Number of T slots: 10
T slots dimensions: 22 mm
X axis traverse: 6000 mm
Y axis traverse: 3800 mm
Distance between columns: 3370
Z axis traverse: 1000 mm
Head type: 3º Auto-indexing milling head (UDG40)
Tool clamping system: Hydraulic
Taper nose: ISO 50
Speed range: 20 - 2000 rpm
Spindle power: 30 kW / 37 Nm
Feedrate: 2 - 5000 mm/min
X-Y,Z Rapid feedrate: 7200 mm/min
Max Weight on table: 15000 kg/m2
Machine weight: 75000 kg
Machine dimensions: 15300 x 6550 x 6180 mm
Guarding
Automatic tool changer: ATC-60
Coolant: External
2 longitudinal chip conveyors
Electronic handwheel: HR-410
Guarantee: 6 months mechanical spare parts
Sale price (Ex Work): On request
