GILDEMEISTER Sprint 32 Linear 2003
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND22225
.png)
.png)
.png)
Dati tecnici
- Condizione: usato
- Anno: 2003
Descrizione

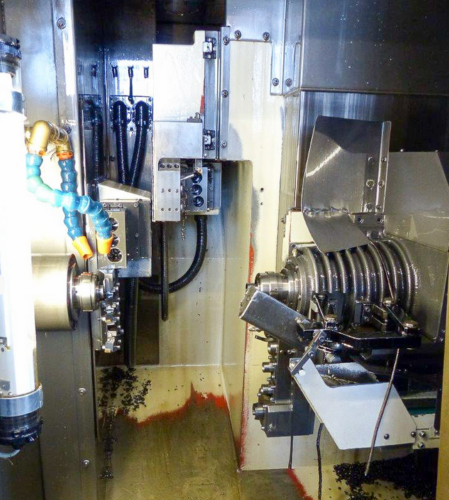

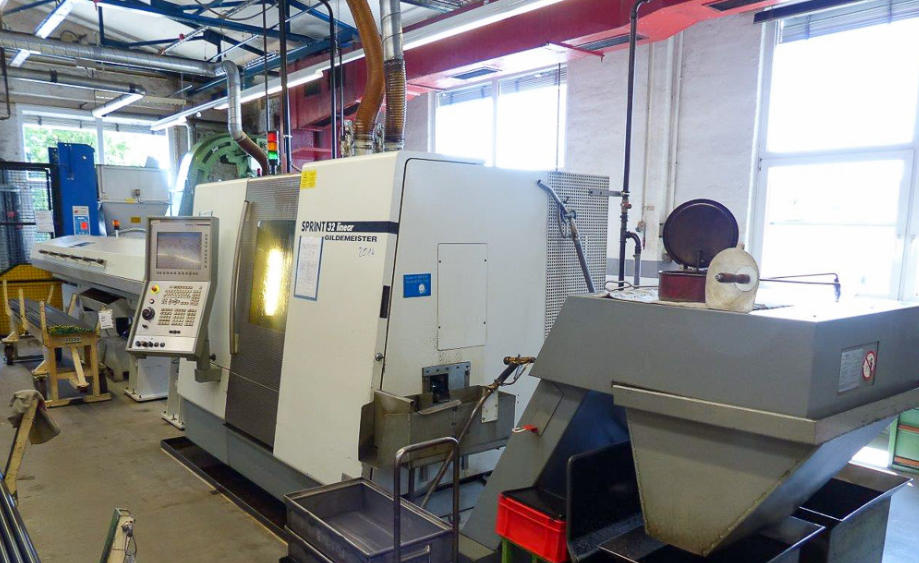

CNC turning and milling center Gildemeister Sprint 32 Linear incl, FMB bar loader
Manufacturer: Gildemeister
Type: Sprint 32 Linear
Year of construction: 2003
Condition: used
On-time machine in h ...
CNC turning and milling center Gildemeister Sprint 32 Linear incl, FMB bar loader
Manufacturer: Gildemeister
Type: Sprint 32 Linear
Year of construction: 2003
Condition: used
On-time machine in h: 52782
Automatic operation in hh: 38234

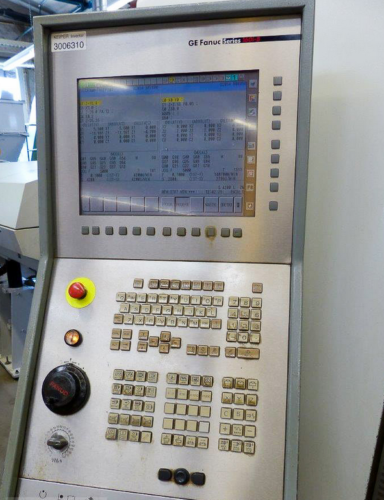

Control Fanuc 160 iTB
Axes: 6 + 2
Main and counterspindle
tool drive
Turning diameter max. 33 mm
Turning length Z1: 120 mm
Main spindle:
Max. Speed 8.000 min / -1
Drive power - main spindle 7,5 / 5,5 kW
Sledge I:
x-way 1: 65 mm
y-way 1: 350 mm
Tool positions 6/4 pos.
stationary stations 6
powered stations 4
Spindle:
Max. Speed 8.000 min / -1
Drive power - counterspindle 5.5 / 3.5 kW
Sledge II:
x-way 2: 265 mm
z-way 2: 320 mm
Tool places 2/3 pos.
established stations 2
powered stations 3
Slide Y2:
Tool positions 3/2/2 pos.
External machining 3
Internal machining 2
powered stations 2
feeds:
Rapid traverse 40 m / min
Acceleration 10 m / s²
Feed force X1: 120 / Y1: 250 daN
Total power requirement 34 kVA
Machine weight approx. 4.2 t
Space required approx. 8.5 x 2.5 x 2.1 m
documentation
Chip conveyor
share transfer

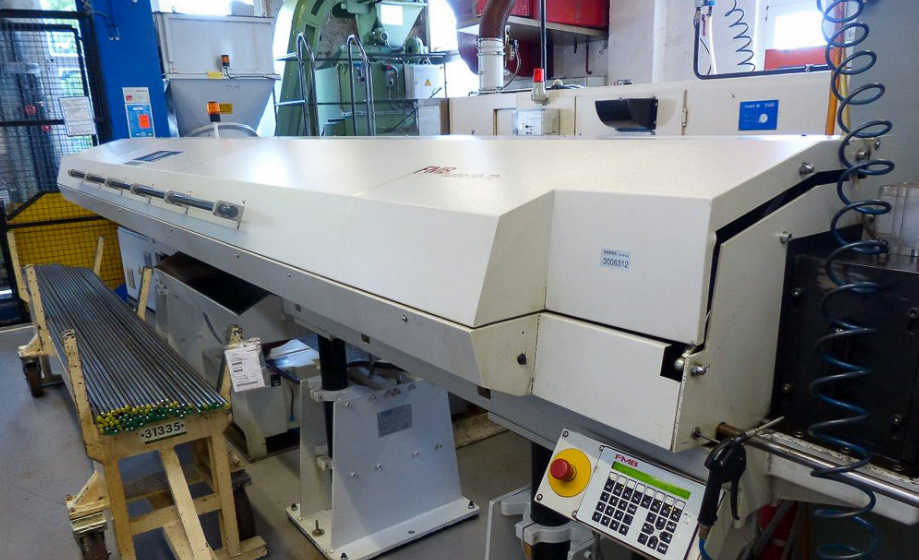

Bar loader FMB
Coolant system
High pressure coolant
tool drive
