GILDEMEISTER NEF 400 2008
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND22240
Dati tecnici
- Condizione: usato
- Anno: 2008
Descrizione

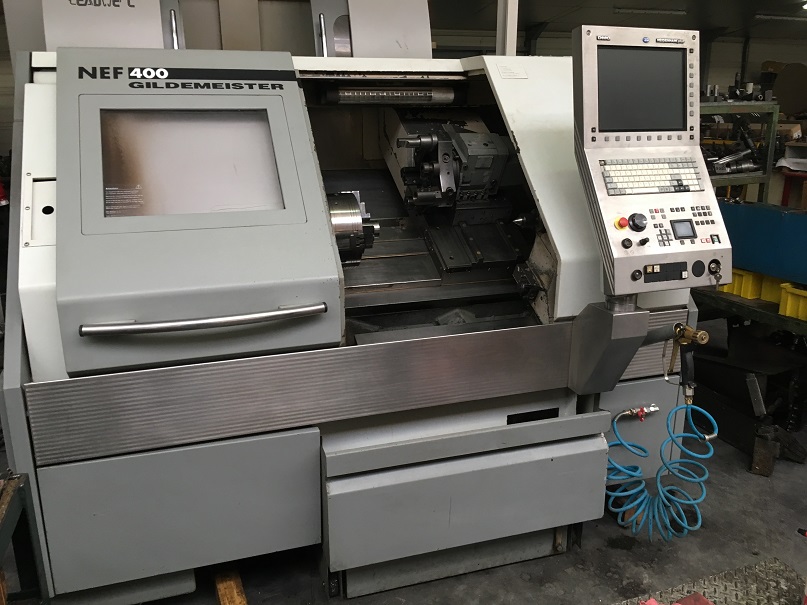

CNC lathe Gildemeister NEF400 year 2008
Max. Circumference diameter over bed / sleigh 400mm / 270mm
Max. Turning length 650mm, Cnc Heidenhain 4209 PILOT turn plus control
3-jaw chuck, 8-fold revolv ...
CNC lathe Gildemeister NEF400 year 2008
Max. Circumference diameter over bed / sleigh 400mm / 270mm
Max. Turning length 650mm, Cnc Heidenhain 4209 PILOT turn plus control
3-jaw chuck, 8-fold revolver, tailstock
Chip conveyor, coolant device
Technical information
Construction year
2008
5500 HOURS
Max. Circumference diameter over bed
400 mm
Max. Turning diameter over slide
270 mm
Max. turning length
650 mm
Plan path X
220 mm
Longitudinal path Z
700 mm
spindle hole
65 mm
Speed range
4000 rpm
tool turret
8 times
Tailstock
MK4
Rapid
15 m / min
Drive power spindle
11.5 kW
Weight approx.
3000 kg
Stock number:
3.2-779
