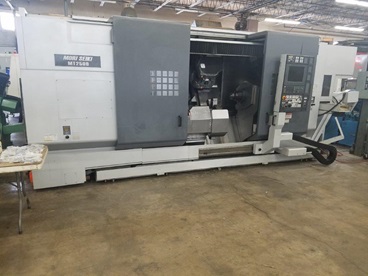

MORI SEIKI MT 2500SZ/1500 2005
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND22738
Dati tecnici
- Condizione: usato
- Anno: 2005
Descrizione
Max. Swing Over Bed: 35.8",Swing Over Cross Slide: 15.4"-33.4",Distance Between Centers: 71.9",Turret 1 Turning Diameter: 21.2",Turret 2 Turning Diameter: 11",Max. Turning Length: 60.2",Bar Work Capac ...
Max. Swing Over Bed: 35.8",Swing Over Cross Slide: 15.4"-33.4",Distance Between Centers: 71.9",Turret 1 Turning Diameter: 21.2",Turret 2 Turning Diameter: 11",Max. Turning Length: 60.2",Bar Work Capacity: 2.9",Max. Spindle Speed: 4,000 RPM,Spindle Nose: A2-8,Spindle Through Hole: 3.5",Min. Indexing Angle: 0.001°,Spindle Motor: 24.7 HP / 20 HP,Sub Spindle Bar Work Capacity: 2.5",Sub Spindle Speed: 4,500 RPM,Sub Spindle Nose: A2-6,Sub Spindle Through Hole: 2.9",Sub Spindle Min. Indexing Angle: 0.001°,Sub Spindle Motor: 20 HP / 15 HP,X-Axis Travel: 22.2",Y-Axis Travel: 9.1" (+/- 4.5"),Z-Axis Travel: 63",B-Axis Swivel Range: +/- 120°,Max. Milling Spindle Speed: 8,000 RPM,Indexing Time @ 90°: 2 sec.,Min. Indexing Angle: 0.001°,Motor: 24.7 HP / 20 HP / 15 HP,X, Z-Axis Rapid Traverse: 944 IPM,Y-Axis Rapid Traverse: 629 IPM,B-Axis Rapid Traverse: 27 IPM,C-Axis Rapid Traverse: 400 IPM,Lower Turret X-Axis Rapid Traverse: 787 IPM,Lower Turret Z-Axis Rapid Traverse: 944 IPM
EQUIPPED WITH: SamSys MultiSys 2000 Bar Feeder (Short Magazine Style),Fanuc MSX-501 CNC Control,60-Station Automatic Tool Changer,12-Station Lower Turret,S-30 Collet Chuck on Main Spindle,S-26 Collet Chuck on Sub Spindle,Chip Conveyor
