ANAYAK HVM-7000P 1998
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND25182
Dati tecnici
- Condizione: usato
- Anno: 1998
Descrizione

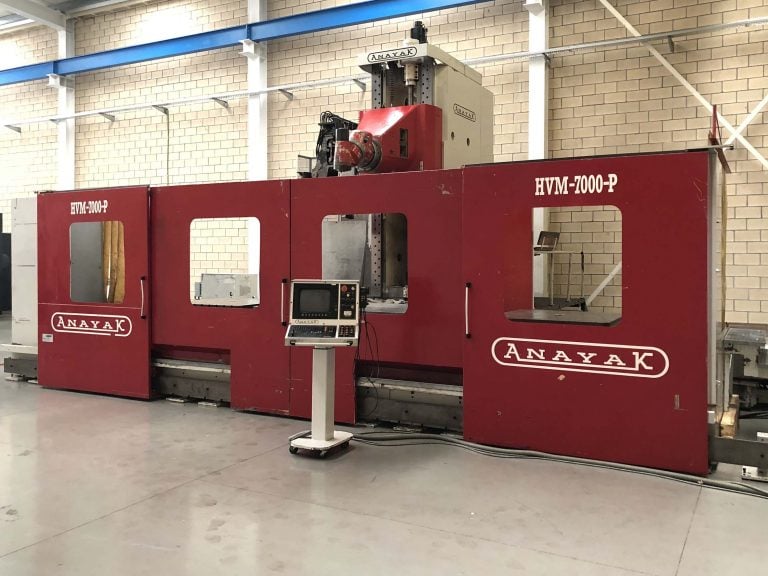

ANAYAK HVM-7000P TRAVELLING COLUMN MILLING MACHINE
• Manufacturer ANAYAK
• Model HVM-7000 P
• Year of Manufacture 1998
• CTable Surface: 7.000 X 1.200 mm
• Longitudinal Traverse (X Axis ...
ANAYAK HVM-7000P TRAVELLING COLUMN MILLING MACHINE
• Manufacturer ANAYAK
• Model HVM-7000 P
• Year of Manufacture 1998
• CTable Surface: 7.000 X 1.200 mm
• Longitudinal Traverse (X Axis): 6.300 mm
• Transversal Traverse (Y Axis): 1.500 mm
• Vertical Traverse (Z Axis) 2.000 mm
• Rapid Traverse 20.000 mm/min
• Max. Working Feed 10.000 mm/min
• Taper: ISO-50 (69871-B)
• Turning Speeds: 20 - 3.000 r.p.m.
• Speed Ranges 2 Ranges
• Auto Indexing Head BIRRA 2 ; 2,5º - 2,5º
• Main Motor Power 37/53 Kw.
• ATC INCLUDED
• Positions at ATC 120
• Internal Coolant 20 Bar INCLUDED
• Chip Conveyor INCLUDED
• 1 Rotary Table Spirsin 1200x1200 mm; 360.000 posiciones
• Max. Weight Allowed on Spirsin Rotary Table 5.000 Kg.
• Paper Filter- additional tank INCLUDED
• Double Operator Control Panel INCLUDED
• Frontside Operator platform INCLUDED
• Backside Operator platform INCLUDED
• Max. Carrying Load Table: 20.000 Kg.
• Machine Weight: 44.000 Kg.NC HEIDENHAIN TNC 426 CB
More information: https://www.maquinariacolas.com/en/machinery/anayak-hvm-7000p-travelling-column-milling-machine/
