CMZ CMZ TL 20M 2011
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND25190
.jpg)
.jpg)
.jpg)
.jpg)
Dati tecnici
- Condizione: usato
- Anno: 2011
Descrizione

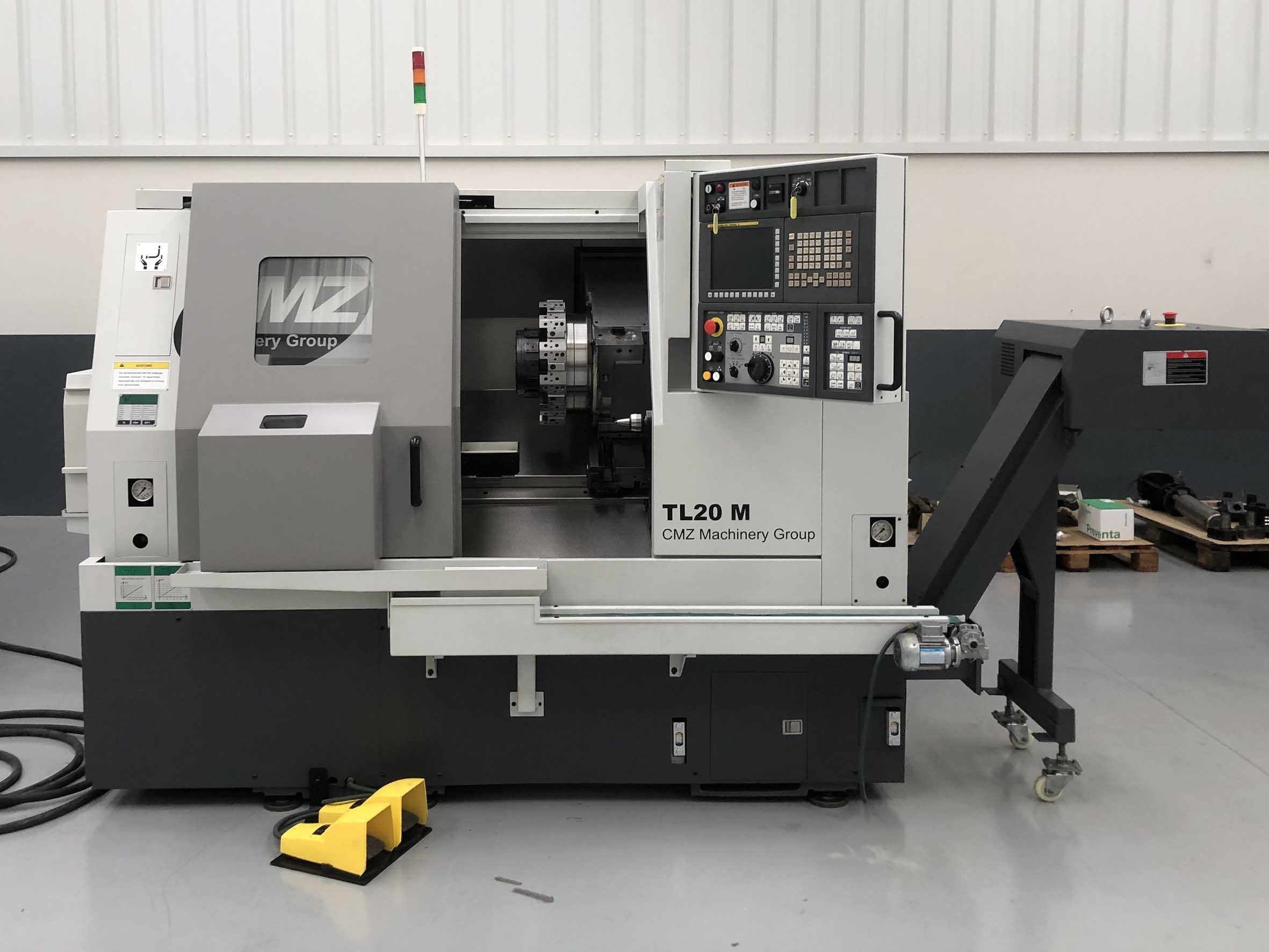

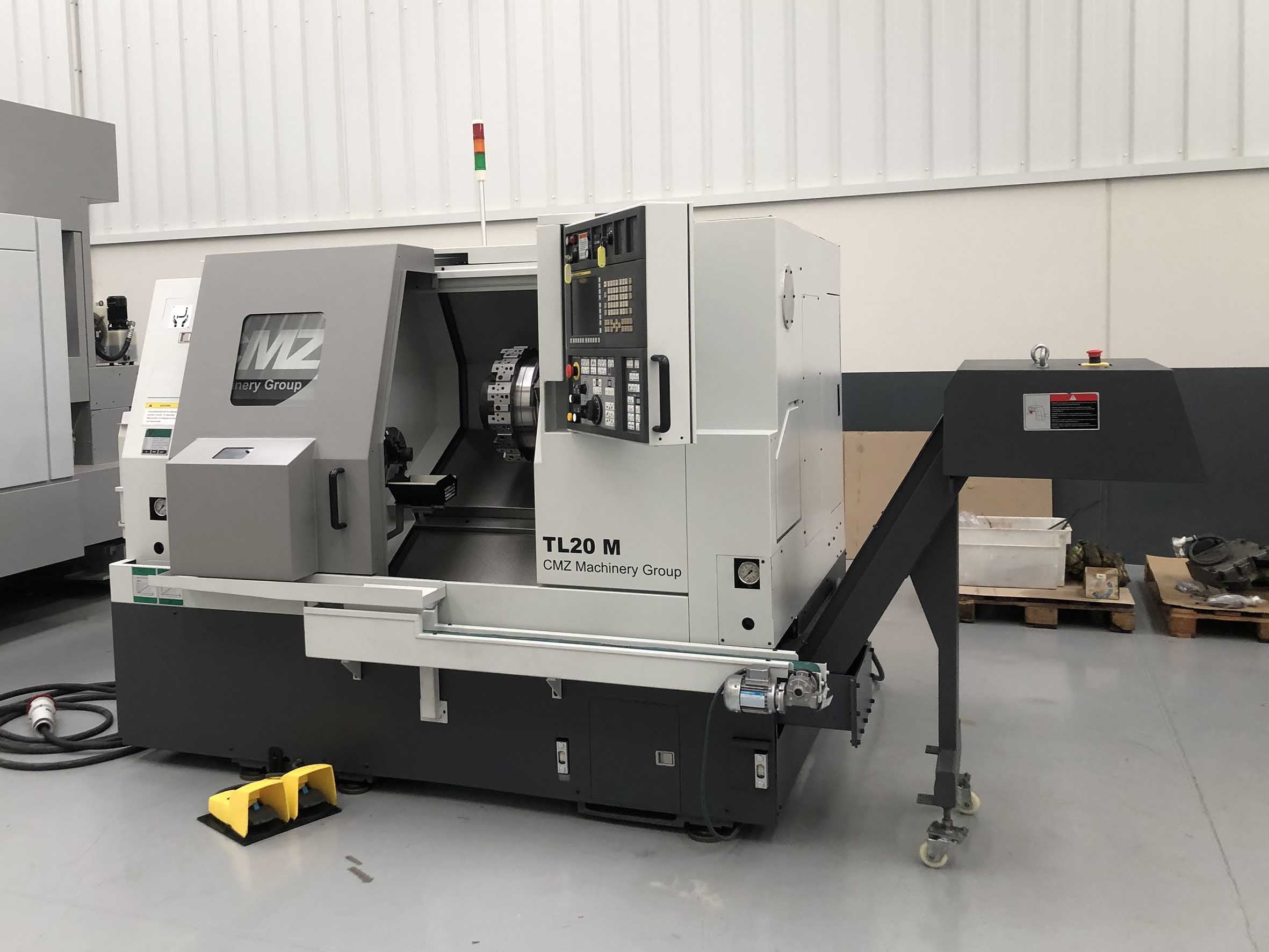

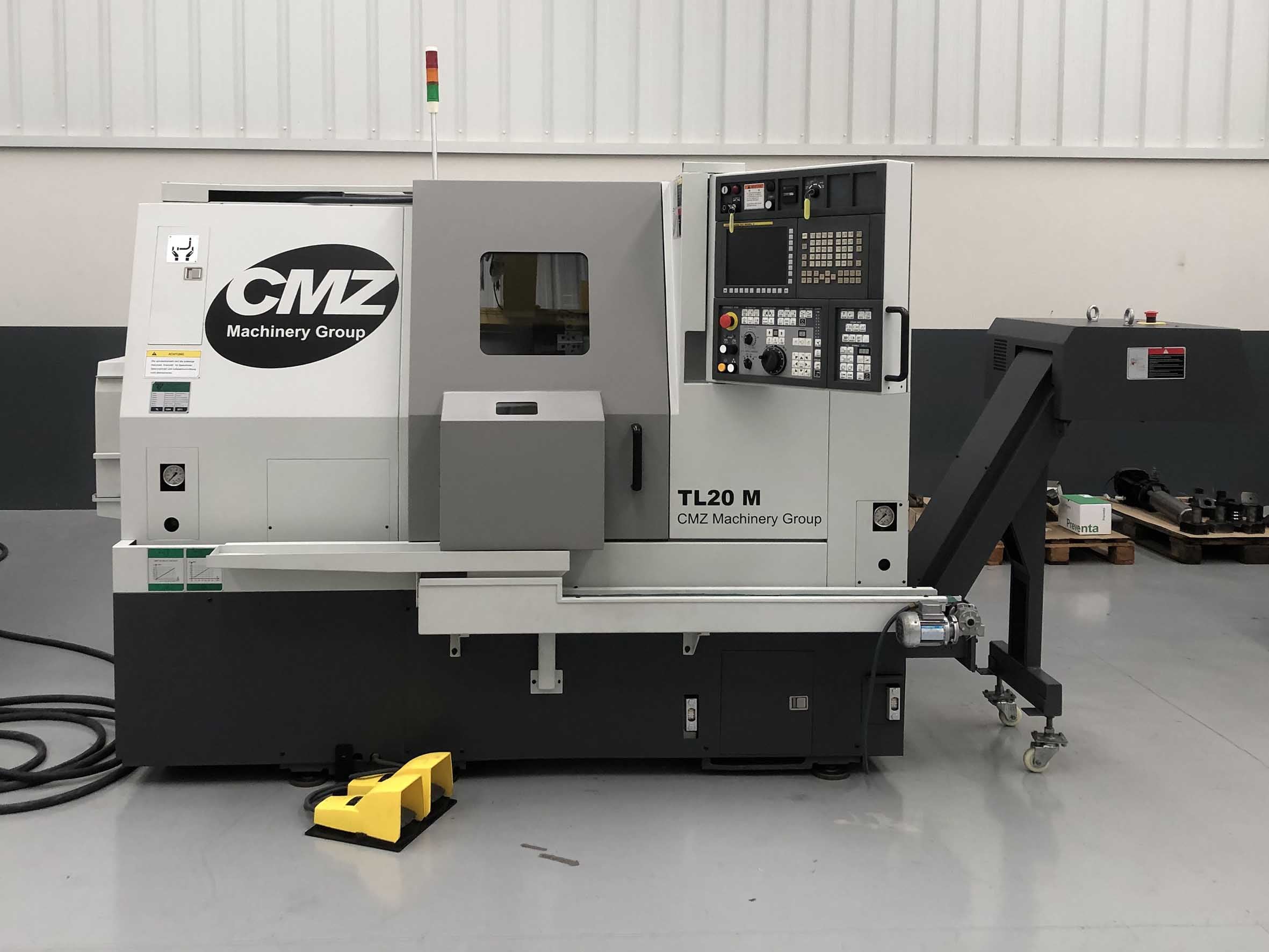

CMZ TL 20M WITH FANUC 32I LATHE
• Year :2011
• CNC :FANUC 32i Model A
• Swing over Bed :685 mm.
• Swing over Carriage :510 mm.
• Máximum Turning Diameter :400mm.
• Distance Between ...
CMZ TL 20M WITH FANUC 32I LATHE
• Year :2011
• CNC :FANUC 32i Model A
• Swing over Bed :685 mm.
• Swing over Carriage :510 mm.
• Máximum Turning Diameter :400mm.
• Distance Between Plate and point :692 mm.
• X Travel :240 mm.
• Z Travel :640 mm.
• Rapid Feed X :18.000 mm/min
• Rapid Feed Z
• :24.000 mm/min.
• Spindle Speed :4.000 rpm
• Ø Maximum Bar Size :66 mm.
• Inside diameter of spindle :73 mm.
• Chuck Diameter :210 mm.
• Chuck bar size :66 mm.
• Spindle Power :22 kW
• Tailstock Quill Diameter :90 mm.
• Taper :CM5
• Postions Turret :12
• Change Time Turret :30º 0.2s; 180º 0.5s
• C Axis : INCLUDED
• Driven Tools : INCLUDED
• Nr of Postions Driven Tools :12
• Speeds of Driven Tools :4.000 rpm
• Power Driven Tools :12 KW
• 2 Axial Driven Toolholders : INCLUDED
• 2 Radial Driven Toolholders : INCLUDED
• Chip Conveyor : INCLUDED
• Automatic Tool Measure : INCLUDED
• Automatic parts conveyor : INCLUDED
• Capacity of coolant tank :240 l.
• Capacity of hydraulic oil tank :9 l.
• Capacity of lubricantion oil tank :2 l.
• Fully Installed Power :40 KVA
• Machine Weight :5.100 Kg.
• Machine Dimensions :2322x1603x1800 mm
More information: https://www.maquinariacolas.com/en/machinery/cmz-tl20m-with-fanuc-32i/
