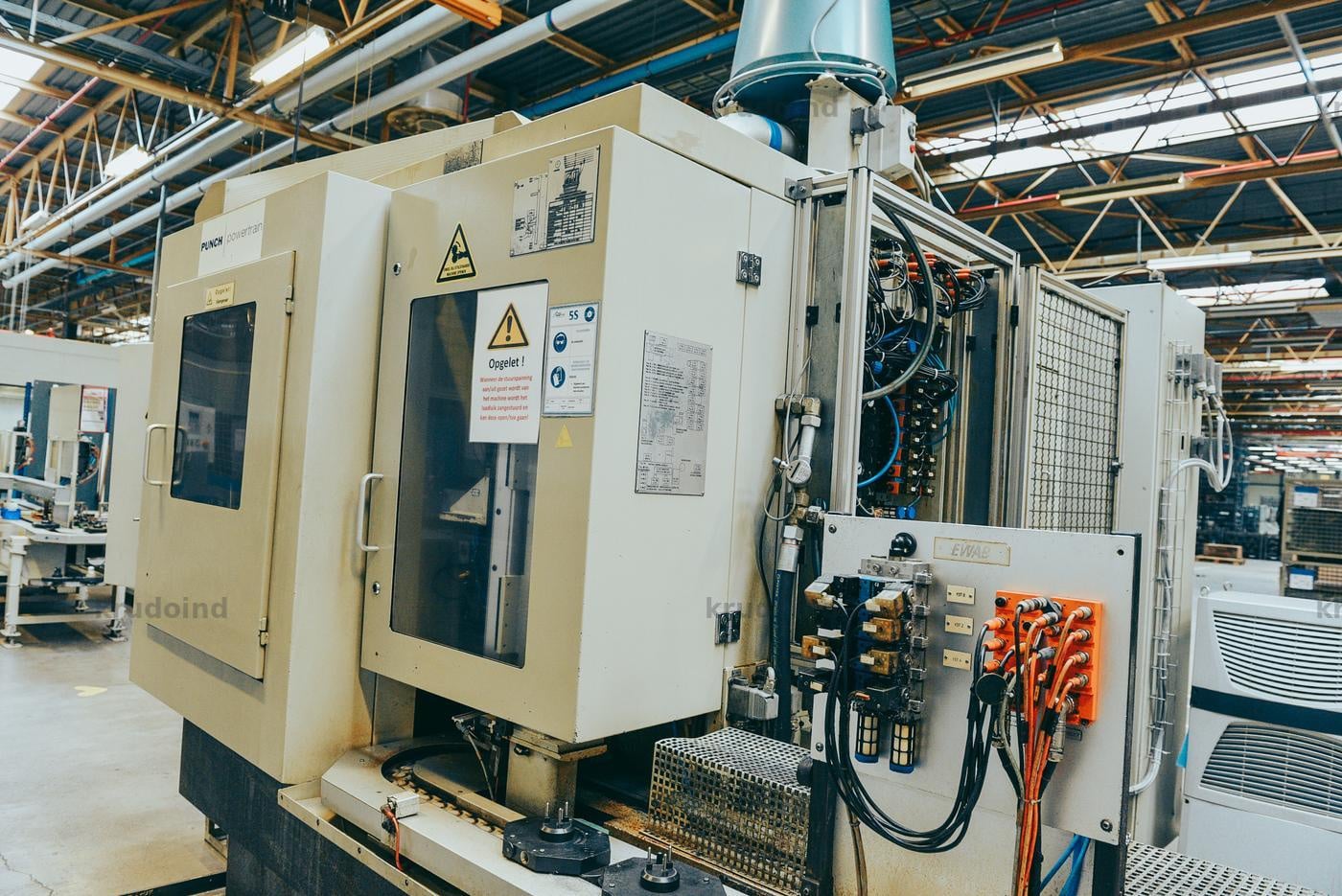

BUDERUS CNC 335 2002
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND26793
Dati tecnici
- Condizione: usato
- Anno: 2002
Descrizione
Bore grinding range: 5-100 mm
Maximum workpiece depth: 150 mm
Largest outer machining diameter:200 mm
Largest swivel diameter above the table: 310 mm
Height of workpiece spindle above ground: 1150 ...
Bore grinding range: 5-100 mm
Maximum workpiece depth: 150 mm
Largest outer machining diameter:200 mm
Largest swivel diameter above the table: 310 mm
Height of workpiece spindle above ground: 1150 mm
Workpiece spindle speeds NC – programmable: 0-3000 rpm
Table:
- Z-axis: 300 mm
- X-axis: 1050 mm
Table speed infinitely adjustable:
- Z-axis: 0-30 m/min
- X-axis: 0-90 m/min
Delivery speed infinitely variable: 0.01 - 10 mm/min
Delivery depending on stroke: 0.0005 -0.1 mm
Workpiece spindle drilling: Ø 45 mm
Mounting hole of the workpiece spindle: Ø 62 mm
Workpiece spindle flange diameter: Ø 220 mm
Workpiece spindle positioning C-axis
Diamond target roller: Ø 310 mm
Connected value of the machine: approx. 40 kW
Machine weight : approx. 7000 kg
