JUARISTI TX 1D 2007
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND26895
.JPG)
Dati tecnici
- Condizione: usato
- Anno: 2007
Descrizione

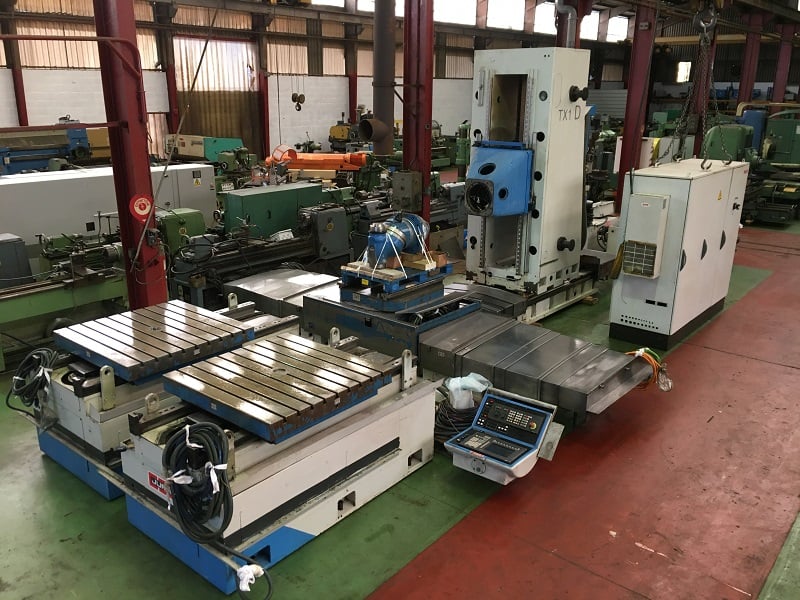

VERTICAL MILLING CENTER T-TYPE 4 AXIS JUARISTI TX1-D
Reference: CUV018
Model TX1-D-MGX6-ATC-APC
YOM 2007
Vertical travel (mm) Y1500
Travel of the column (mm) Z1500
Longitudinal travel (mm) X2000 ...
VERTICAL MILLING CENTER T-TYPE 4 AXIS JUARISTI TX1-D
Reference: CUV018
Model TX1-D-MGX6-ATC-APC
YOM 2007
Vertical travel (mm) Y1500
Travel of the column (mm) Z1500
Longitudinal travel (mm) X2000
Table size (mm) 1250x1250 (x2)
T-slots size 22H7
N°of T-slots 7
Distance between T-slots (mm) 160
Weight admitted (T) 6
A-C axis (°) +/- 1
B-axis (°) 0.001 (continuous)
ATC 40
Spindle attachment (Iso) 50 DIN 69872
Spindle speeds (Rpm) 2 range / 5-5000
Feeding speeds (mm/mn) XYZ 10000
Rapid feeding speed (m/mn) XYZ 25
Main motor power (Kw) 37
Machine equipped with : CNC SIEMENS 840 D / Swarf conveyor / Coolant through spindle pressure 20 Bars / Pallets changer
Weight of the machine (T) 35
