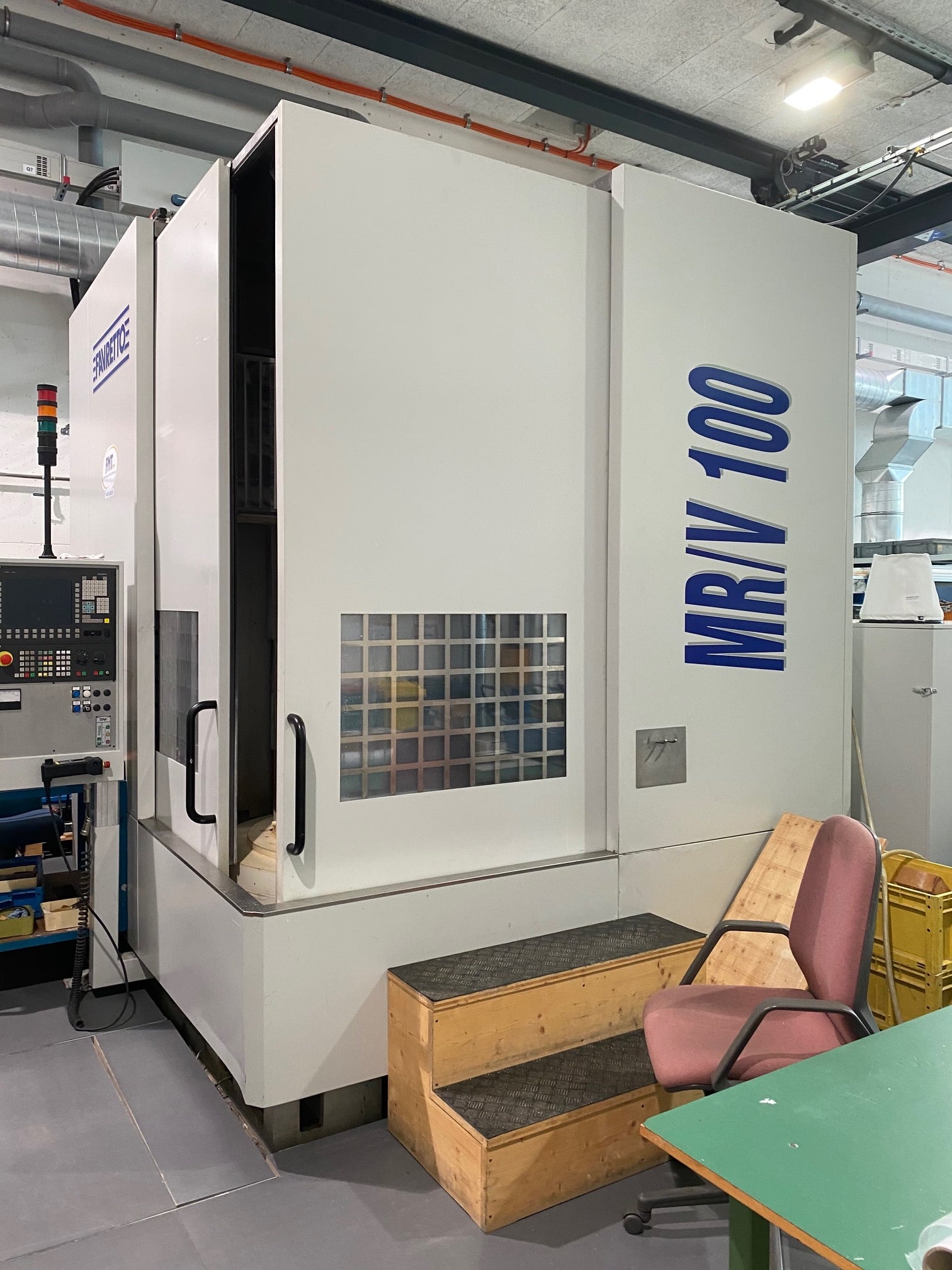

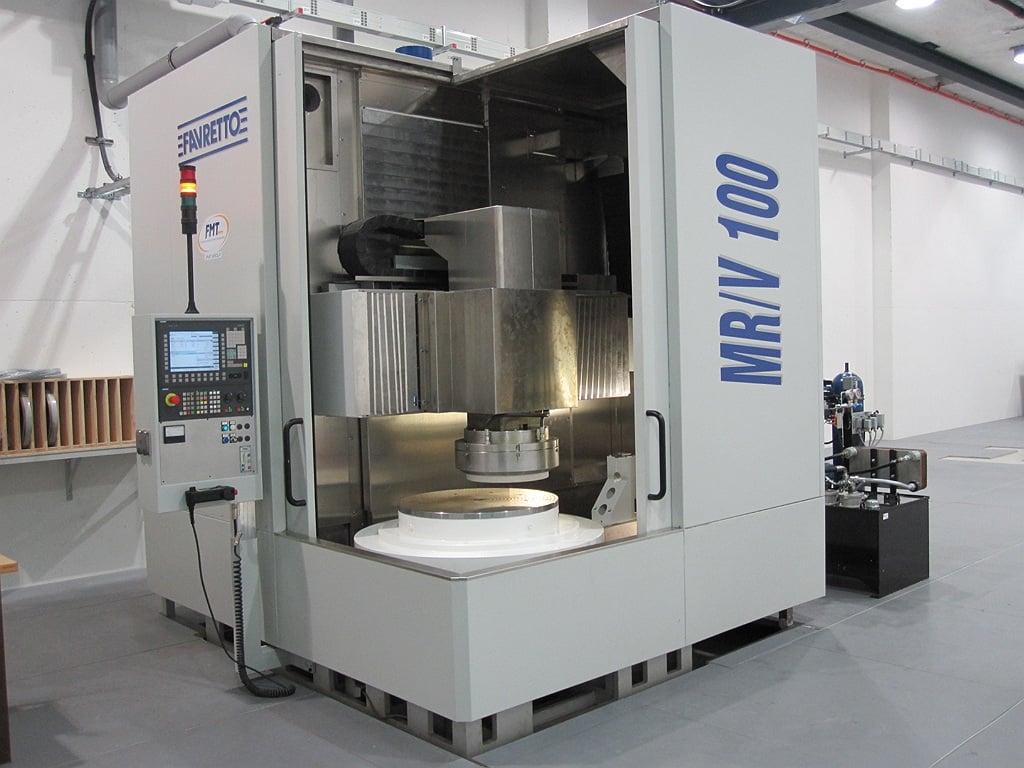

FAVRETTO MR/V 100 2009
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND27332
Dati tecnici
- Condizione: usato
- Anno: 2009
Descrizione
Rotary table surface grinder is suitable for metal grinding e.g. Eg cylinder heads
Rotary table up to 800 mm possible
Precise accuracy thanks to the hydrostatically mounted table
The machine has fe ...
Rotary table surface grinder is suitable for metal grinding e.g. Eg cylinder heads
Rotary table up to 800 mm possible
Precise accuracy thanks to the hydrostatically mounted table
The machine has few operating hours and is in perfect condition
grinding length 1100 mm
grinding width 600 mm
table load 800 kg

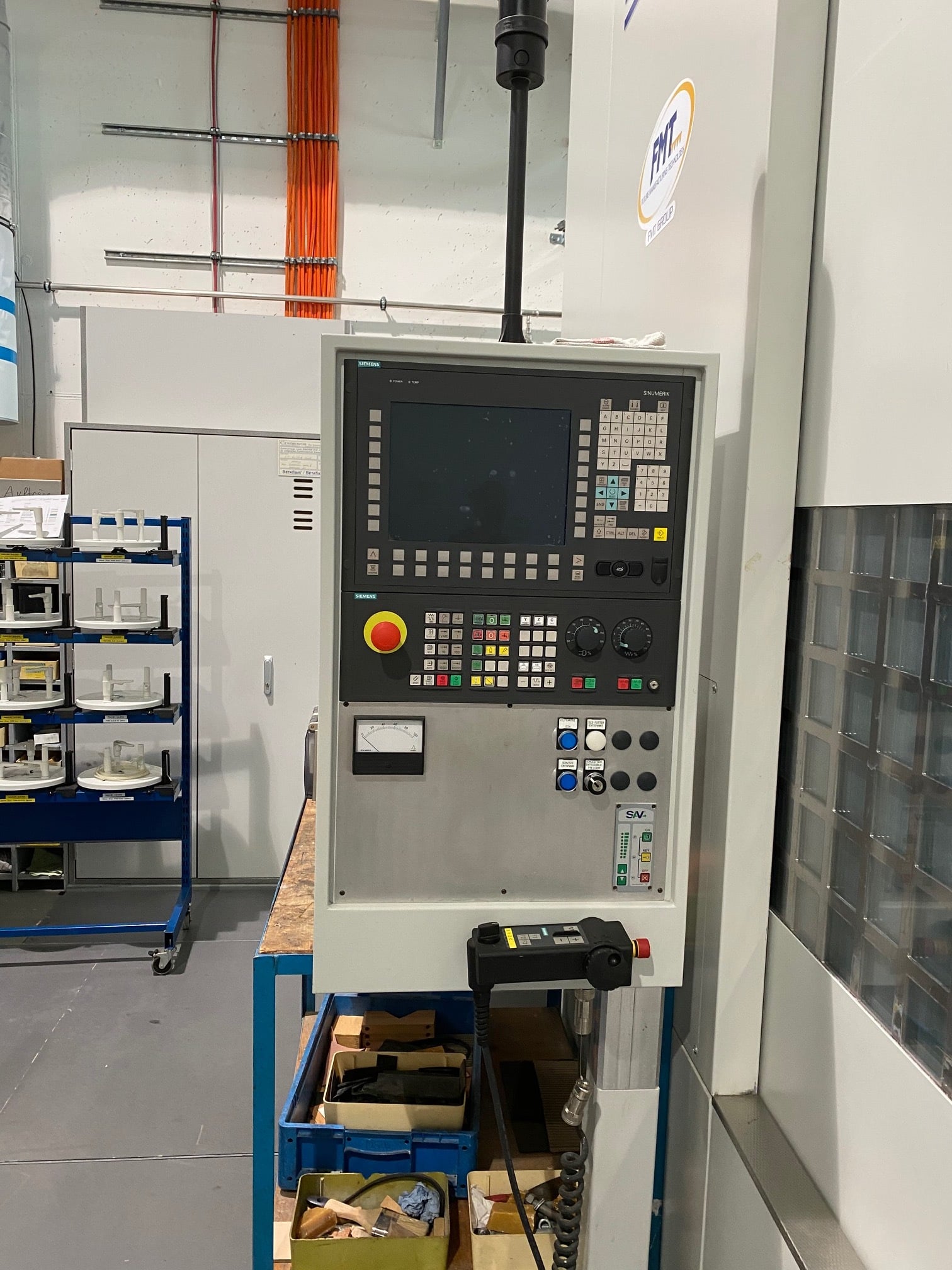

Control SIEMENS 840 D
internal grinding diameter 600x600 mm
grinding height 800 mm
spindle drive 22 kW
grinding wheel diameter 180-250 mm
grinding wheel turining speeds 2.000-10.000 U/min

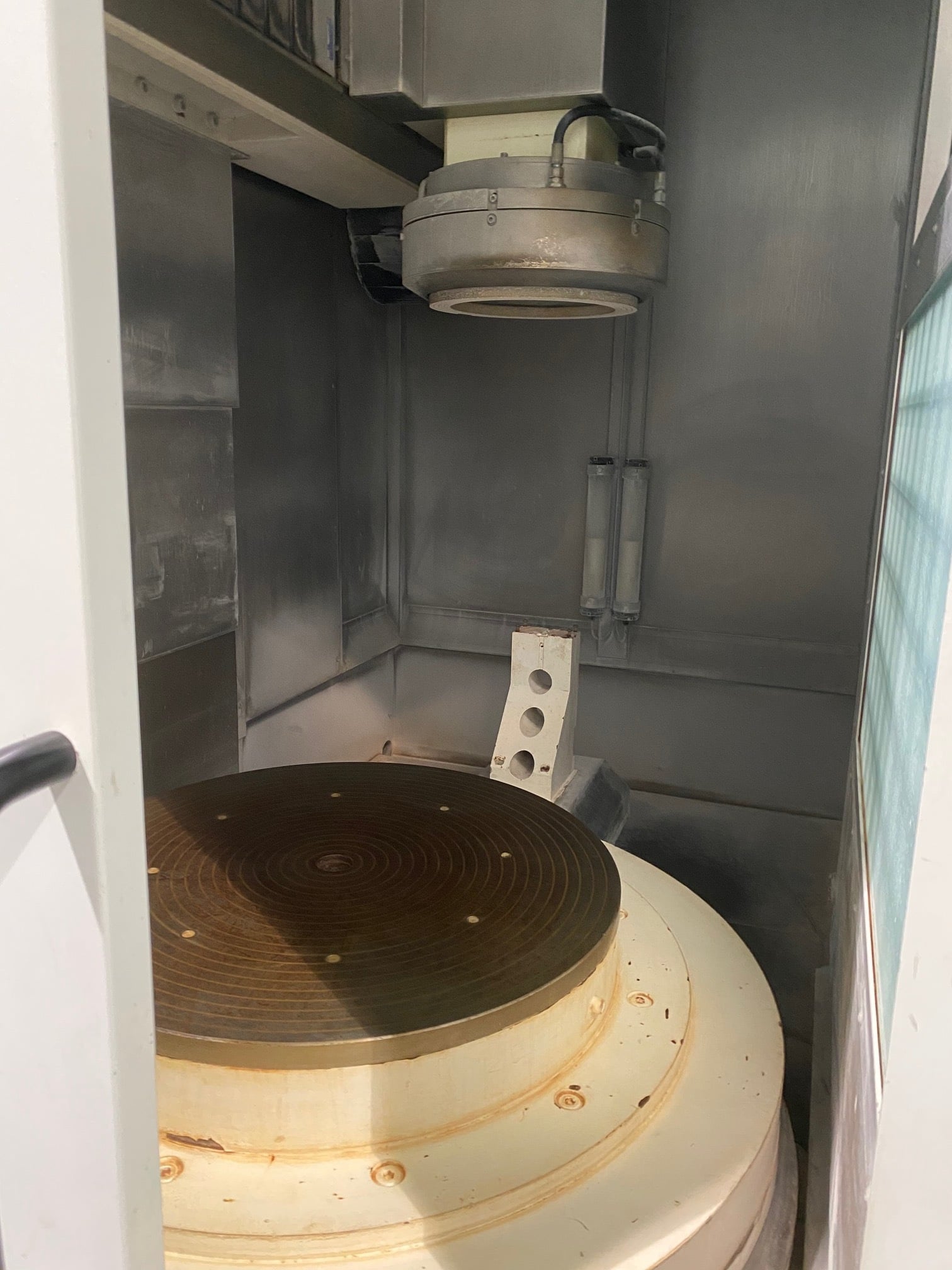

table diameter 1000 mm
table speeds 5-150 m/min
rapid traverse 15 m/min
grinding diameter 1000 mm
cross travel 900 mm
vertical movement 900 mm
total power requirement 55 kW
weight of the machine ca. 14 t
dimensions of the machine ca. 4,2x4,7x3,3 m
