SKODA W160HA
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND27559
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione
CNC – Floor Boring Machine
Manufacturer : SKODA
Model W 160 HB NC
New in 1987 : 1987

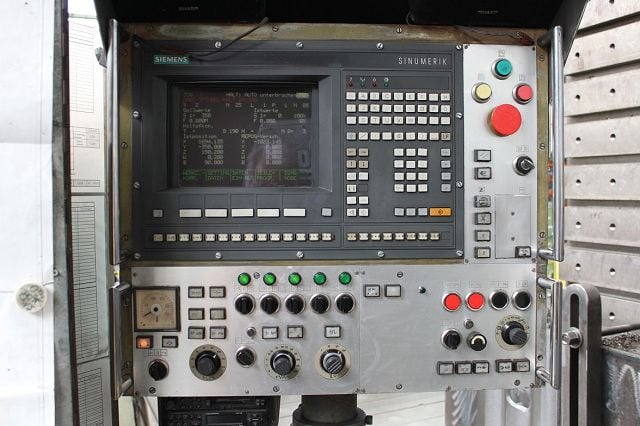

CNC – Control SIEMENS 850 M
Technical details
spindle diameter 160 mm ...
CNC – Floor Boring Machine
Manufacturer : SKODA
Model W 160 HB NC
New in 1987 : 1987
CNC – Control SIEMENS 850 M
Technical details
spindle diameter 160 mm
x-travel 8000 mm
y-travel 3000 mm
tool taper ISO 50
dimension of the ram 450 x 450 mm
ram stroke 1250 mm
spindle stroke 1600 mm
spindle turning speed range 1000 U/min
max. torque on the spindle 8000 Nm
main drive 52 kW
dimensions of the machine ca. 15,5 x 11,5 x 5,0 m
Additional information
Equipment:
NC - Rotary table : 3150 x 3150 mm, loading capacity 35 ton
Floor plate : 6400 x 1850 mm,
chip conveyor,
universal milling head
Facing head D ` Andrea
