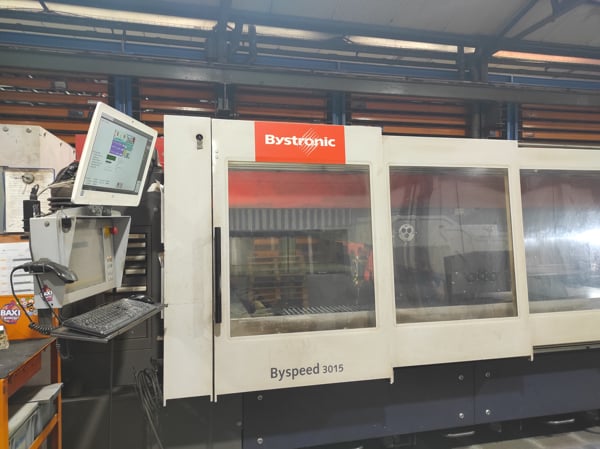

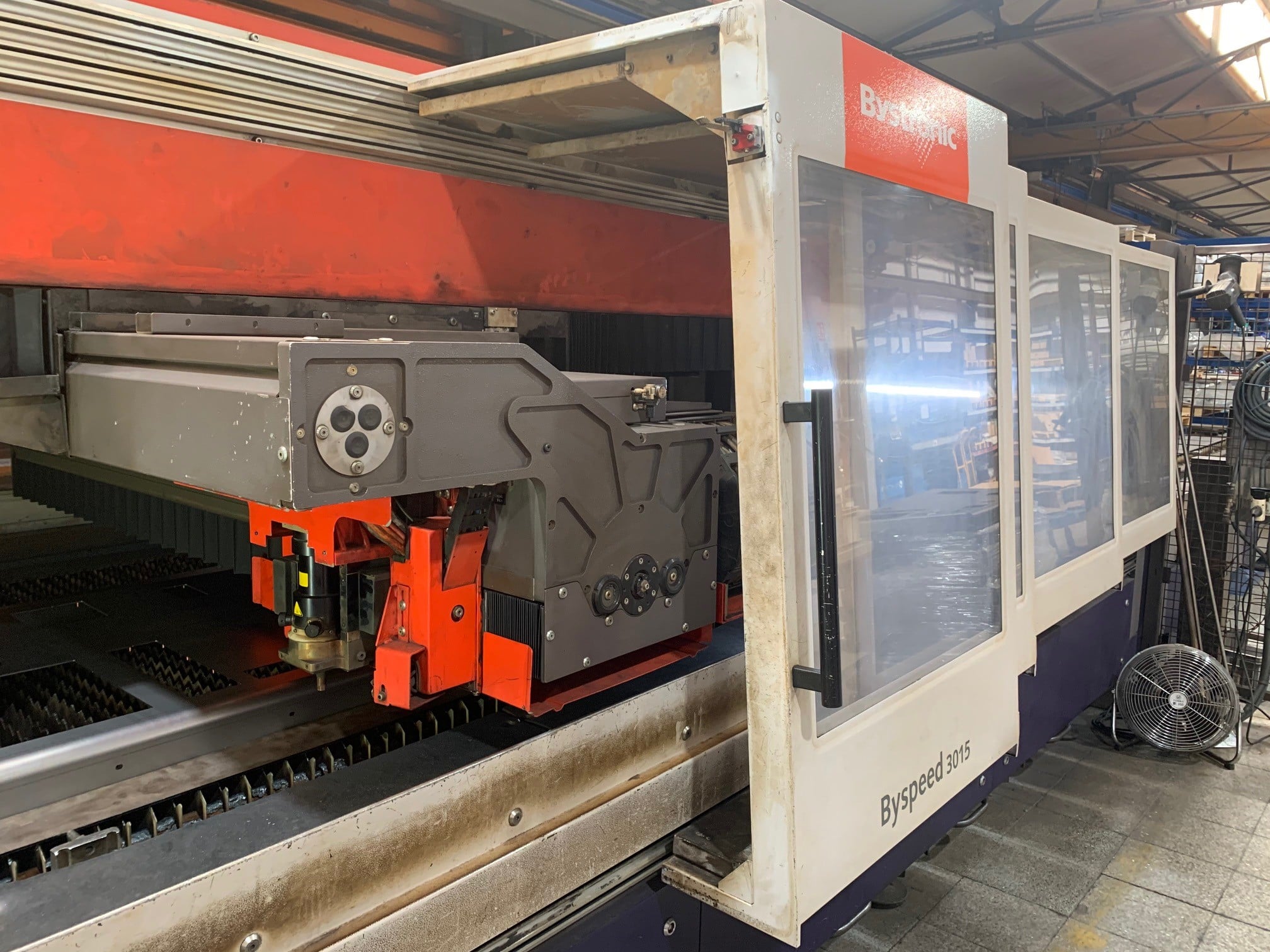

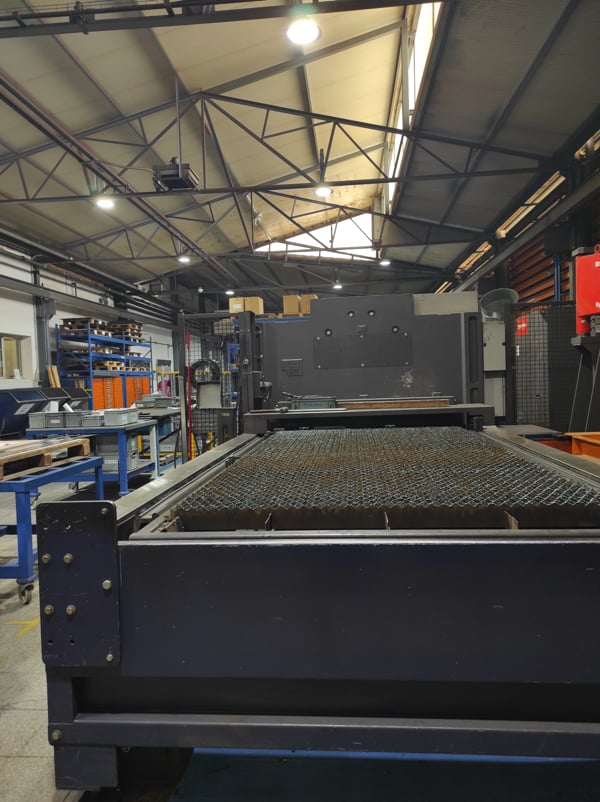

BYSTRONIC Byspeed 3015 4400w 2005
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND27570
Dati tecnici
- Condizione: usato
- Anno: 2005
Descrizione
CO2 BYSTRONIC BYSPEED 3015 (year 2005) 4.4 kW.
Working. Available February 2021. Hours: 41908
Tolerance: + – 0.1mm / m Repetition tolerance: + – 0.05 mm. Simultaneous positioning speed of X ...
CO2 BYSTRONIC BYSPEED 3015 (year 2005) 4.4 kW.
Working. Available February 2021. Hours: 41908

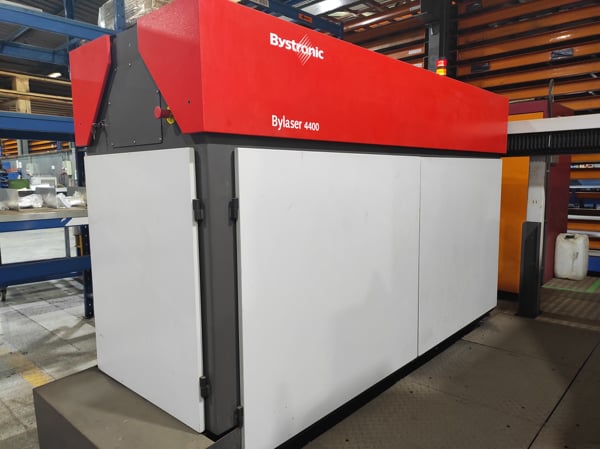

Tolerance: + – 0.1mm / m Repetition tolerance: + – 0.05 mm. Simultaneous positioning speed of X / Y axes: 169 m / min. Acceleration max. axial: 30 m / s2 Acceleration max. radial: 10 m / s2 Maximum cutting speed: 50m / min. Cutting area: X = 3000 mm. Y = 1500 mm. Cutter head stroke: Z = 100 mm. Maximum loading capacity of the changing table: 890 kg. Control: Byvision Automatic Bypos focal point adjustment. Cutcontrol. 2 Heads: 5 and 7.5 Bylaser 4400 Wavelength: 10600nm. Beam diameter: 20 mm. Maximum thicknesses: Steel: 0.8 – 25.0 mm. Stainless steel: 0.8-20.0 mm. Aluminium: 0.8… 12.0 mm. Dimensions: Complete installation: 13500 x 5550 mm. Weight of the cutting installation: 17,000 kg. Total weight, including peripheral devices: 20,000 kg. Software not included.
