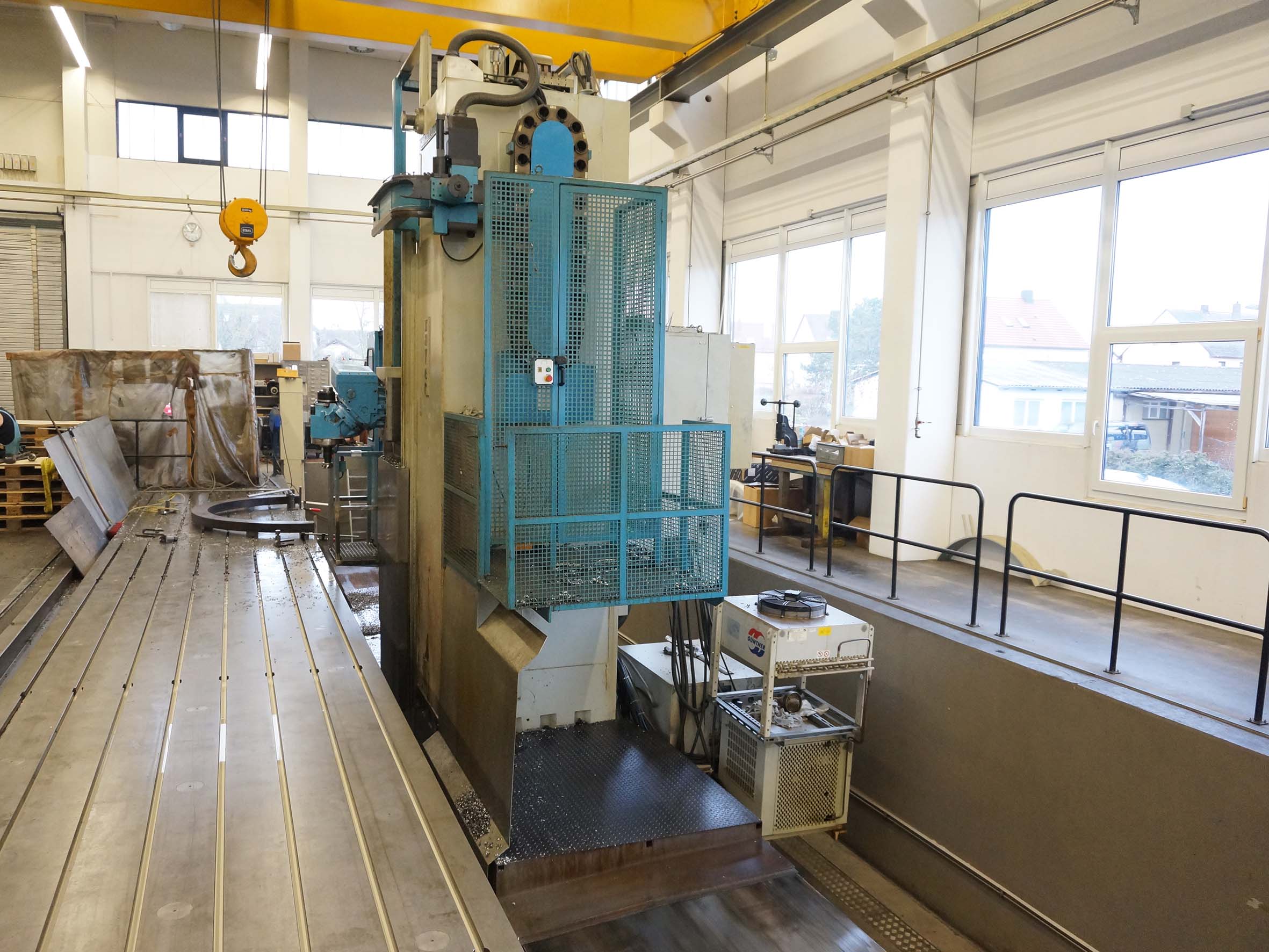

ZAYER ZAYER 30 KCU-22000 TRAVELING COLUMN MILLING MACHINE 2000
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND28545
Dati tecnici
- Condizione: usato
- Anno: 2000
Descrizione
Year 2000
CNC SIEMENS 840 D
Longitudinal Traverse ( X Axis) 22.000 mm
Cross Traverse (Y Axis) 1.500 mm
Vertical Traverse (Z Axis) 3.000 mm
Stoller Table 6000 X 2000 X 300 mm 2 Unid/ 2 Units
Rapi ...
Year 2000
CNC SIEMENS 840 D
Longitudinal Traverse ( X Axis) 22.000 mm
Cross Traverse (Y Axis) 1.500 mm
Vertical Traverse (Z Axis) 3.000 mm
Stoller Table 6000 X 2000 X 300 mm 2 Unid/ 2 Units
Rapid Traverse X Axis 10.000 mm/min
Rapid Traverse Y – Z Axis 15.000 mm/min
Maximum Working Feed 5.000 mm/min
Taper ISO 50 DIN 69871 AD 50
Turning Speeds 6.000 r.p.m.
AutoIndex Head 45 º
Head 360.000 Pos.
Elbow 360.000 Pos.
Main Motor Power 37 Kw.
Nº Change Range 2 Ranges
Automatic Tool Charger INCLUDED
Tools at ATC 30
Coolant Through Tool 20 Bar INCLUDED
Soluble Oil Tank with filter paper INCLUDED
Head Coolant System + CF Box INCLUDED
Longitudinal Chip Conveyor INCLUDED
Operator?s Platformd with 2000 mm Vertical movement. INCLUDED
Ready for Rotor Translating Table
(Regulator + Wires) /INCLUDED
Coolant System in Electrical Cabinet INCLUDED
Machine Weight 68.000 Kg.
Machine Colour RAL 7038 – 5012
Portable Handwheel INCLUDED
More information https://www.maquinariacolas.com/en/machinery/zayer-30-kcu-22000-floor-type-miiling-machine/
