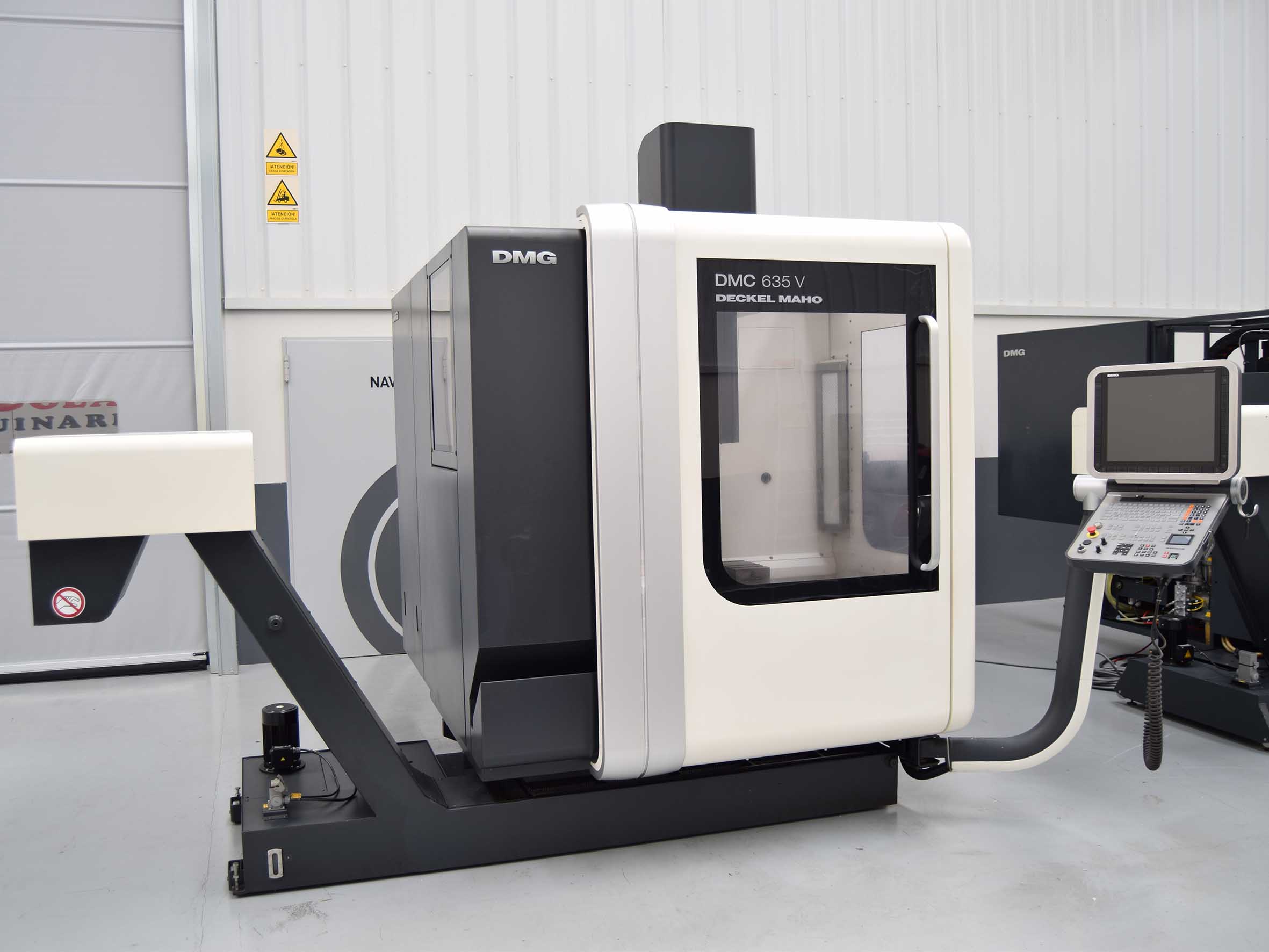

DECKEL MAHO DMG DMC 635V VERTICAL MACHINE CENTER 2011
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND28547
.JPG)
Dati tecnici
- Condizione: usato
- Anno: 2011
Descrizione
Manufacturer DMG
Model DMC 635V
Year 2011
CNC HEIDENHAIN ITNC530
Table Surface 790 x 560 mm.
Max Weight Allowed on Table 600 kg
Longitudinal Traverse (X Axis) 635 mm
Cross Traverse (Y Axis 510 ...
Manufacturer DMG
Model DMC 635V
Year 2011
CNC HEIDENHAIN ITNC530
Table Surface 790 x 560 mm.
Max Weight Allowed on Table 600 kg
Longitudinal Traverse (X Axis) 635 mm
Cross Traverse (Y Axis 510 mm
Vertical Traverse (Z Axis) 460 mm
Rapid Feed (X/Y/Z Axis) 30.000 mm/min
Working Feed (X/Y/Z Axis) 20-10.000 mm./min.
Spindle Speed 10.000 r.p.m.
Taper SK40-DIN 69871
Main Motor Power 9/13 kW
Main Spindle Torque 57/83 nm
ATC INCLUDED
ATC Positions 30
Ø max tool without free positions 80 mm
Ø max tool with free positions 130 mm
Max tool length 300 mm
Max tool weight 6 kg
Chip Conveyor INCLUDED
Tool Touch Probe HEIDENHAIN TT 140
Portable Handwheel HEIDENHAIN HR 410
Coolant tank capacity 120 l
4 Color Signal Lamp INCLUDED
Power on hours 10.709 h.
Running hours 5.291 h.
Machine Dimensions ( LxWxH) 3.500×4.000×2.700 mm.
Machine Weight 3.780 kg.
Machine condition SEMI – NEW
Tools INCLUDED
More information https://www.maquinariacolas.com/en/machinery/dmg-dmc-635v/
