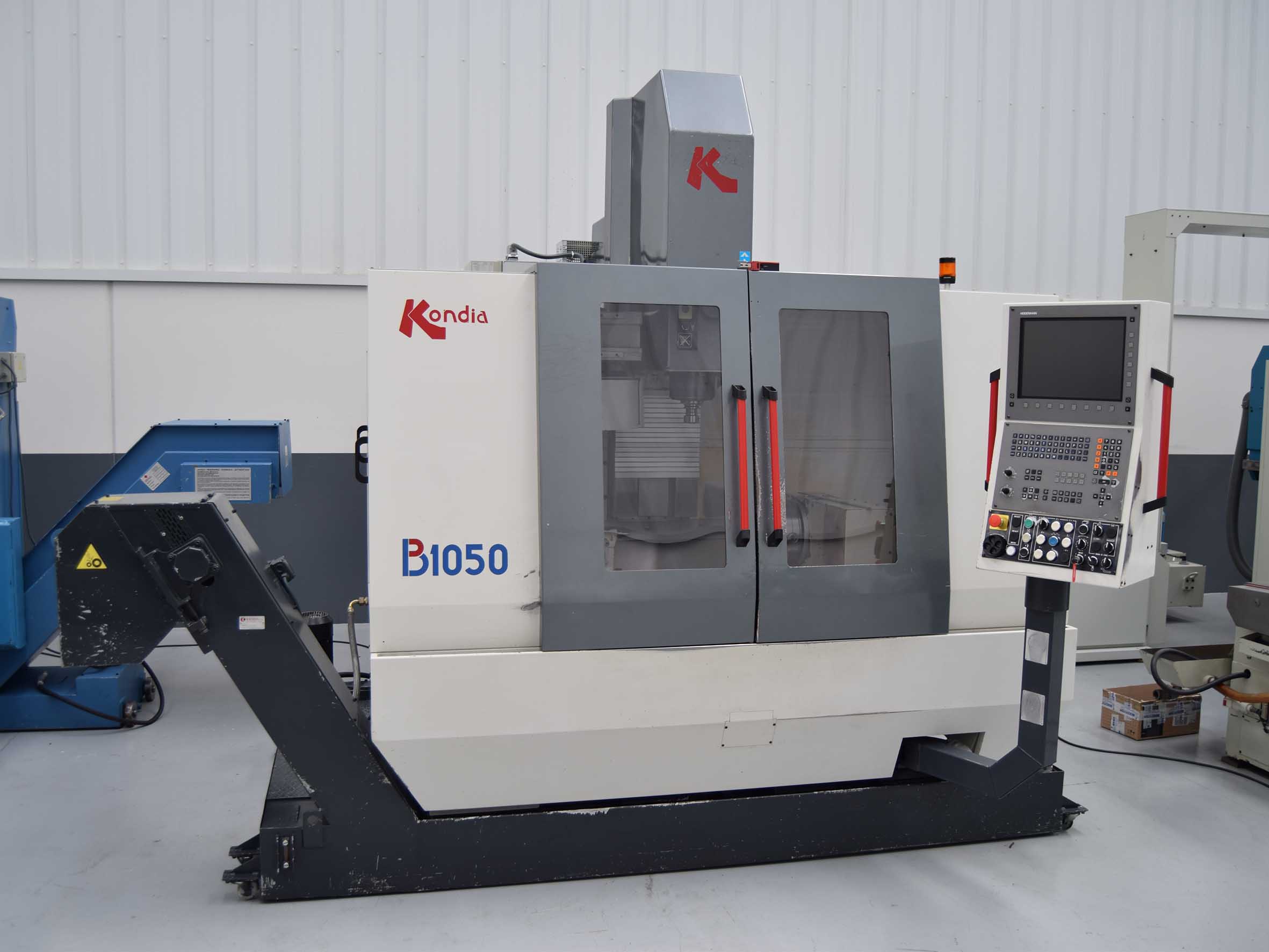

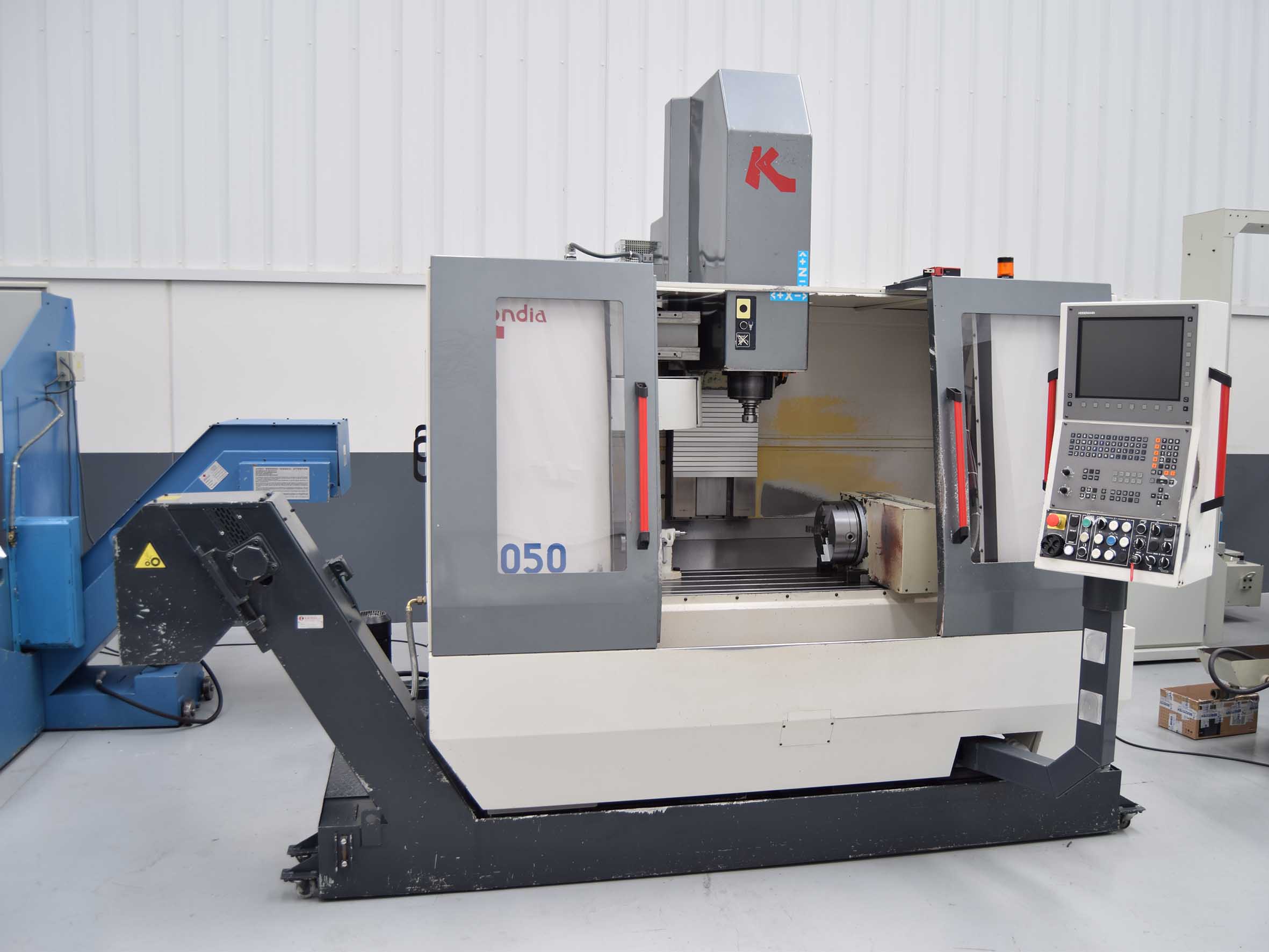

KONDIA B 1050 2005
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND28713
Dati tecnici
- Condizione: usato
- Anno: 2005
Descrizione
Manufacturer KONDIA
Model B-1050
Year 2005
CNC HEIDENHAIN TNC 426 D
Table Dimension 1.200 x 500 mm.
Travels (X/Y/Z Axis) 1.000/500/610 mm.
Rapid Feed X Axis 25.000 mm./min.
Taper ISO 40
Turnin ...
Manufacturer KONDIA
Model B-1050
Year 2005
CNC HEIDENHAIN TNC 426 D
Table Dimension 1.200 x 500 mm.
Travels (X/Y/Z Axis) 1.000/500/610 mm.
Rapid Feed X Axis 25.000 mm./min.
Taper ISO 40
Turning Speeds 6.000 rpm
Spindle power 7,5 kW
Max. weight allowed on table 500 kg.
ATC INCLUDED
ATC Positions 22
External Coolant 20 Bar INCLUDED
Coolant Tank Capacity 200 l.
Chip Conveyor INCLUDED
Portable Handwheel INCLUDED
Rotary Tabel Spirsin + Tailstock INCLUDED
Ø Rotary Table Ø 260 mm.
Machine Dimensions 2.650 x 2.345 x 2.870 mm.
Machine Aprox. Weight 5.100 kg.
More information https://www.maquinariacolas.com/en/machinery/used-kondia-b-1050-vmd/
