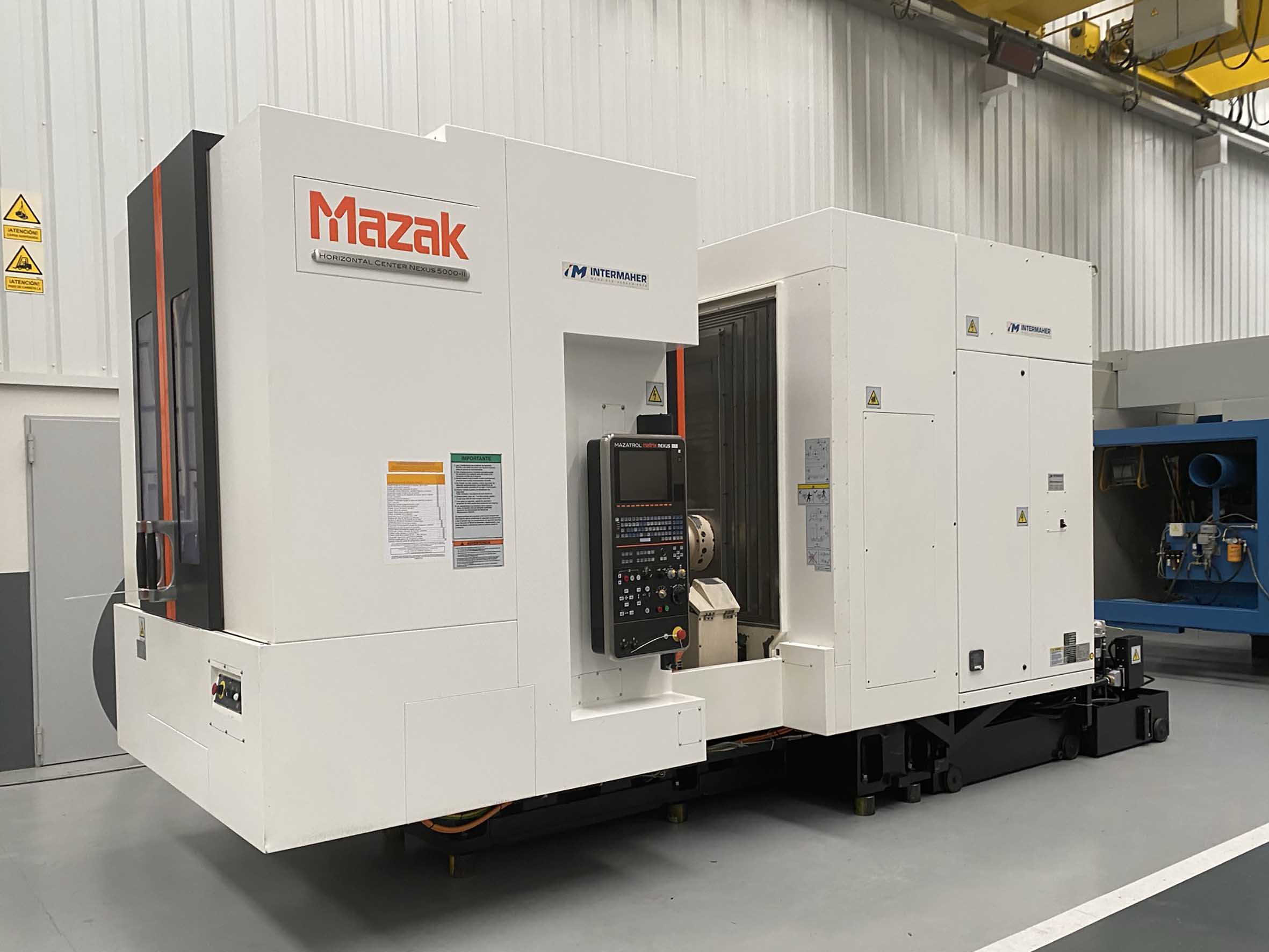

MAZAK NEXUS Mazak Nexus 5000 II 2013
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND28928
.JPEG)
.JPEG)
Dati tecnici
- Condizione: usato
- Anno: 2013
Descrizione
Manufacturer MAZAK
Model NEXUS 5000 II
Year 2013
CNC MAZATROL MATRIX
Table
Pallet size 500 x 500 mm.
Max workpiece dimension 800 x 1000 mm.
Pallet load capacity 700 kg
Min indexing angle incr ...
Manufacturer MAZAK
Model NEXUS 5000 II
Year 2013
CNC MAZATROL MATRIX
Table
Pallet size 500 x 500 mm.
Max workpiece dimension 800 x 1000 mm.
Pallet load capacity 700 kg
Min indexing angle increment 0.001º
Indexing time 1.5 s /90º
Automatic pallet changer
Number of pallets 2
Change system Rotary
Pallet change time 7,0 s.
Stroke
Travels (X/Y/Z) 730 mm.
Distance from pallet center to spindle nose 70-810 mm.
Distance from pallet surface to spindle center 100-830 mm.
Feedrate
Rapid traverse rate (X/Y/Z) 60.000 mm/min
Cutting feedrate (X/Y/Z) 1 – 60.000 mm/min
Axis acceleration 0.8G
Spindle
Taper ISO 40 DIN 6782
Turning Speeds 12.000 rpm
Speed ranges 2
Max spindle power 30 kW
Automatic tool changer
Tools shank type CAT nº40
ATC positions 40
ATC type Random
Max tool diameter 95 mm.
Max tool diameter, with adjacent pockets empty 150 mm.
Max tool length 420 mm.
Max tool weight 12 kg.
Tool change time 2.7 s.
Additional equipment
Internal Coolant 8 bar INCLUDED
Chip Conveyor INCLUDED
Synch Tapping INCLUDED
Dimensions and weight
Net Weight 11.000 kg.
Height 2804 mm.
Required floor space – including the coolant thank and chip conveyor
More information https://www.maquinariacolas.com/en/machinery/mazak-nexus-hcn-5000-ii/
