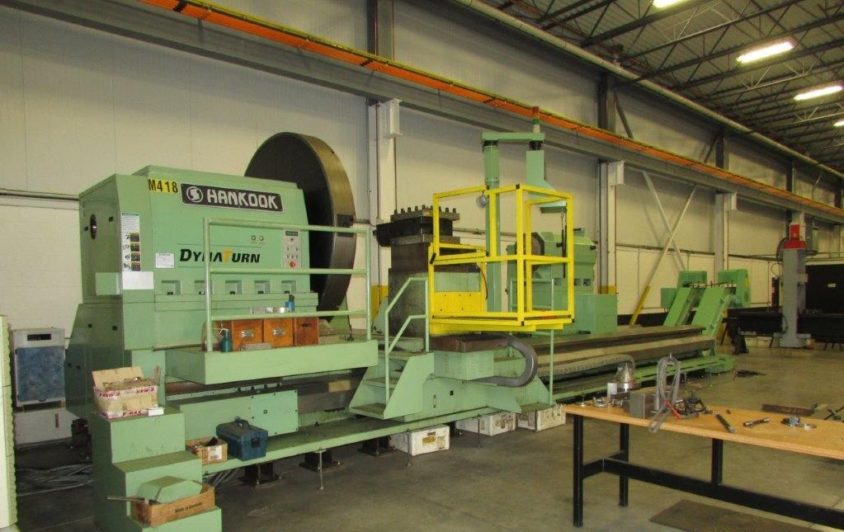

HANKOOK DYNATURN 2600 X 6000 2008
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND29449
Dati tecnici
- Condizione: usato
- Anno: 2008
Descrizione
Max. Turning Diameter: 2,600 mm (8.5’),Max. Swing Over Bed: 2,600 mm (8.5’),Max. Swing Over Slide: 2,200 mm (7.21’),Max. Cutting Length: 6,000 mm (19.68’),Max. Distance Between Centers: 6,000 ...
Max. Turning Diameter: 2,600 mm (8.5’),Max. Swing Over Bed: 2,600 mm (8.5’),Max. Swing Over Slide: 2,200 mm (7.21’),Max. Cutting Length: 6,000 mm (19.68’),Max. Distance Between Centers: 6,000 mm (19.68’),Hours: 567,Number of Spindle Speeds: Automatic 4 Step,Spindle Speed Range: 1-250 RPM,Tailstock Quill Diameter: 400 mm (15.75”),Overall Length: 13,500 mm (522”),Overall Depth: 5,165mm (204”),Overall Height: 3,570 mm (141”),Voltage: 440 Volts / 60 Hertz, Flatbed 102.4” X 236.22” & 86.6" Swing Over the Cross Slide, 250 RPM Max Spindle Speed with a 4 Step Gear Box and Massive Tailstock with a 15.75” Quill Diameter and a Load Capacity of 30 Tons, includes a 4 Jaw Manual Chuck, Chip Conveyor, An H-4 Hydraulic Turret with 4 Tool Holders and a Fanuc CNC Control.
Equipped with: Fanuc 32A Control, 90” 4 Jaw Independent Manual Chuck, (1) Roller Jaw Rest 150 - 500 mm, (1) Roller Jaw Steady Rest 500 - 800mm, Tail Stock with Load Meter with 30 Ton Capacity, Chip Conveyor with Chip Bin, Headstock Centers 60 Degrees and 75 Degrees, (1) Turning Holder, (3) Id Boring Holders 63 mm Capacity, (2) Boring Bar Sleeves, 640 M Program Storage, 200 Registered Programs, Extended Program Editing, Hydraulic H-4 Turret Tool Post (4 Positions), Rotary TailStock Center, Work Lamp and Patrol Lamp, Operating Maintenance Manuals, Transformer 220 Volt / 60 Hz and Number of Spindle Speeds Automatic 4-Step.
