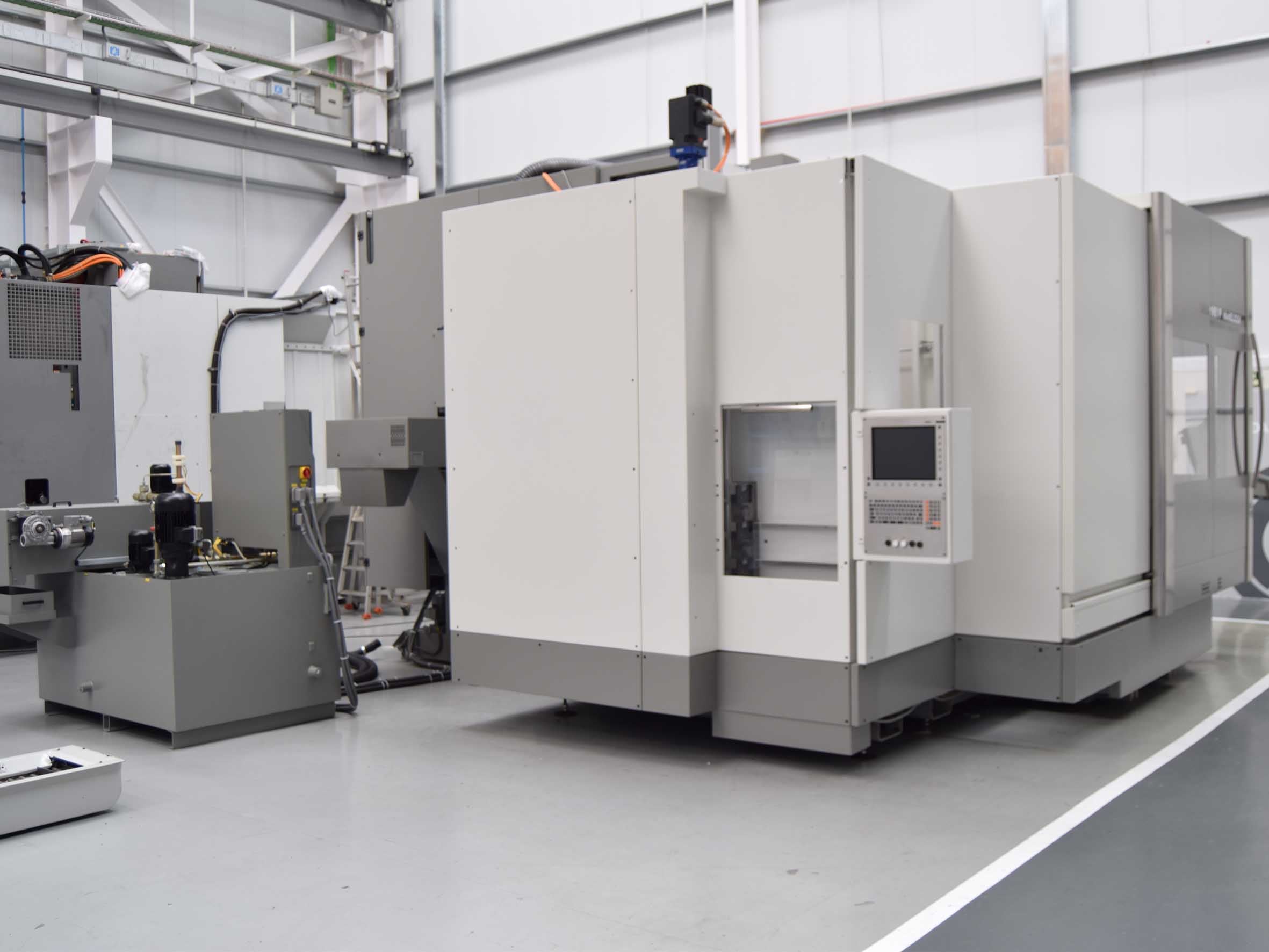

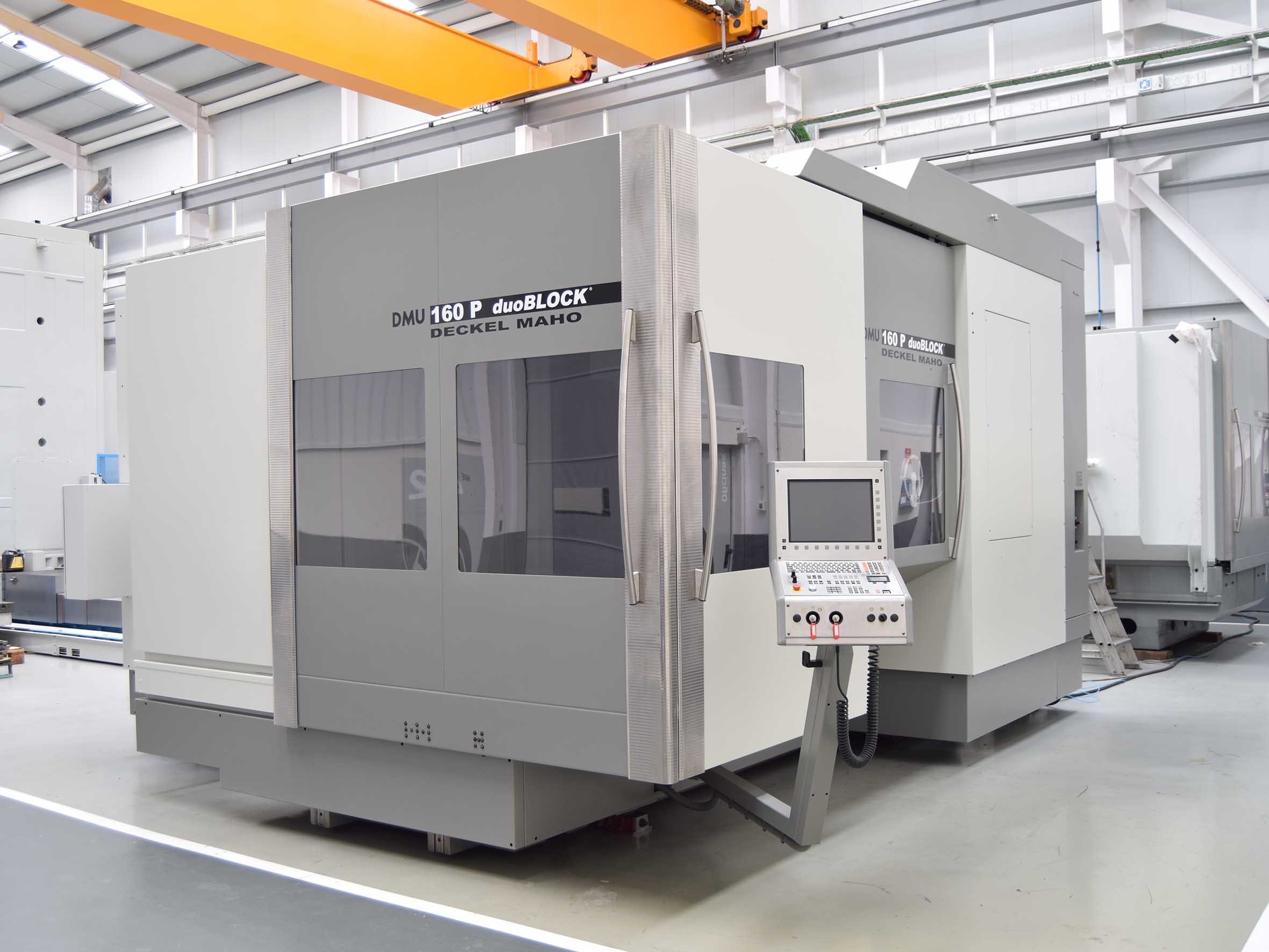

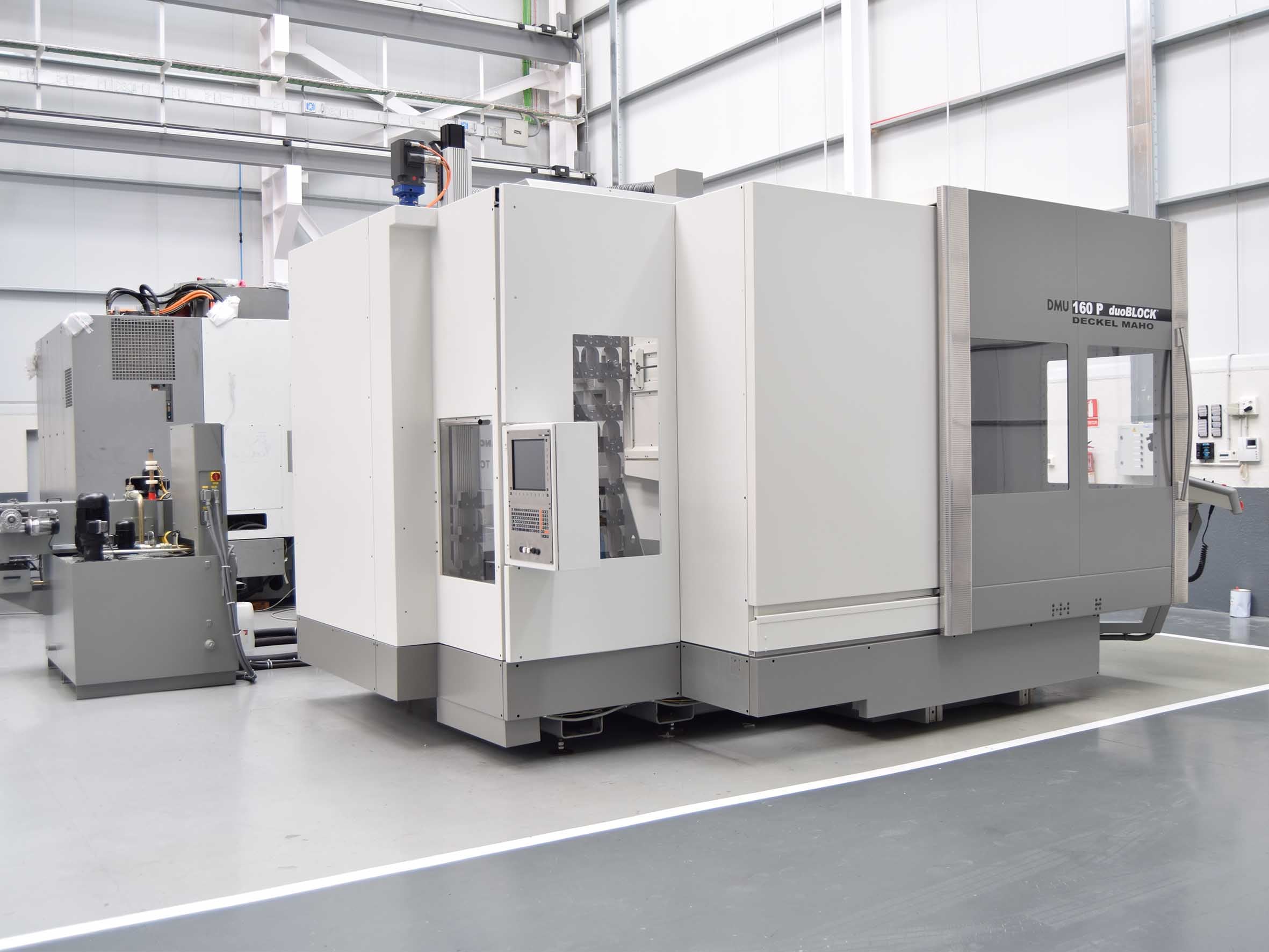

DMG DMU 160P Duoblock 2002
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND30420
.JPG)
.JPG)
.JPG)
Dati tecnici
- Condizione: usato
- Anno: 2002
Descrizione
Technical Features of this 5 Axis Machining Centers
Year 2002
CNC HEIDENHAIN TNC-530
Table Dimension 1.500 X 1.250 mm.
Longitudinal Travel (X Axis) 1.600 mm.
Cross Travel (Y Axis) 1.250 mm
Verti ...
Technical Features of this 5 Axis Machining Centers
Year 2002
CNC HEIDENHAIN TNC-530
Table Dimension 1.500 X 1.250 mm.
Longitudinal Travel (X Axis) 1.600 mm.
Cross Travel (Y Axis) 1.250 mm
Vertical Travel (Z Axis) 1.000 mm.
Table Rotation (C Axis) 0.001 º (Continuous)
Horizontal / Vertical Auto Indexing Head (A Axis ) 0.001 º (Continuous)
Rapid Feed 60.000 mm/min
Taper SK-40 DIN 69871
Turning Speeds 20-12.000 rpm
Engine Power 28 kW.
Automatic Tool Changer INCLUDED
Tools at Tool Charger 60
Max Weight Allowed on Table 4.000 Kg.
Internal Coolant 40 Bar INCLUDED
Tool Touch Probe INCLUDED
HEIDENHAIN Optical Scales INCLUDED
Chip Conveyor INCLUDED
Postioning Precsission 0.001 mm.
Net Weight 35.000 Kg.
Portable Handwheel HEIDENHAIN HR-410
Machine Condition EXCELLENT
More information https://www.maquinariacolas.com/en/machinery/used-dmg-dmu-160-p-duoblock/
