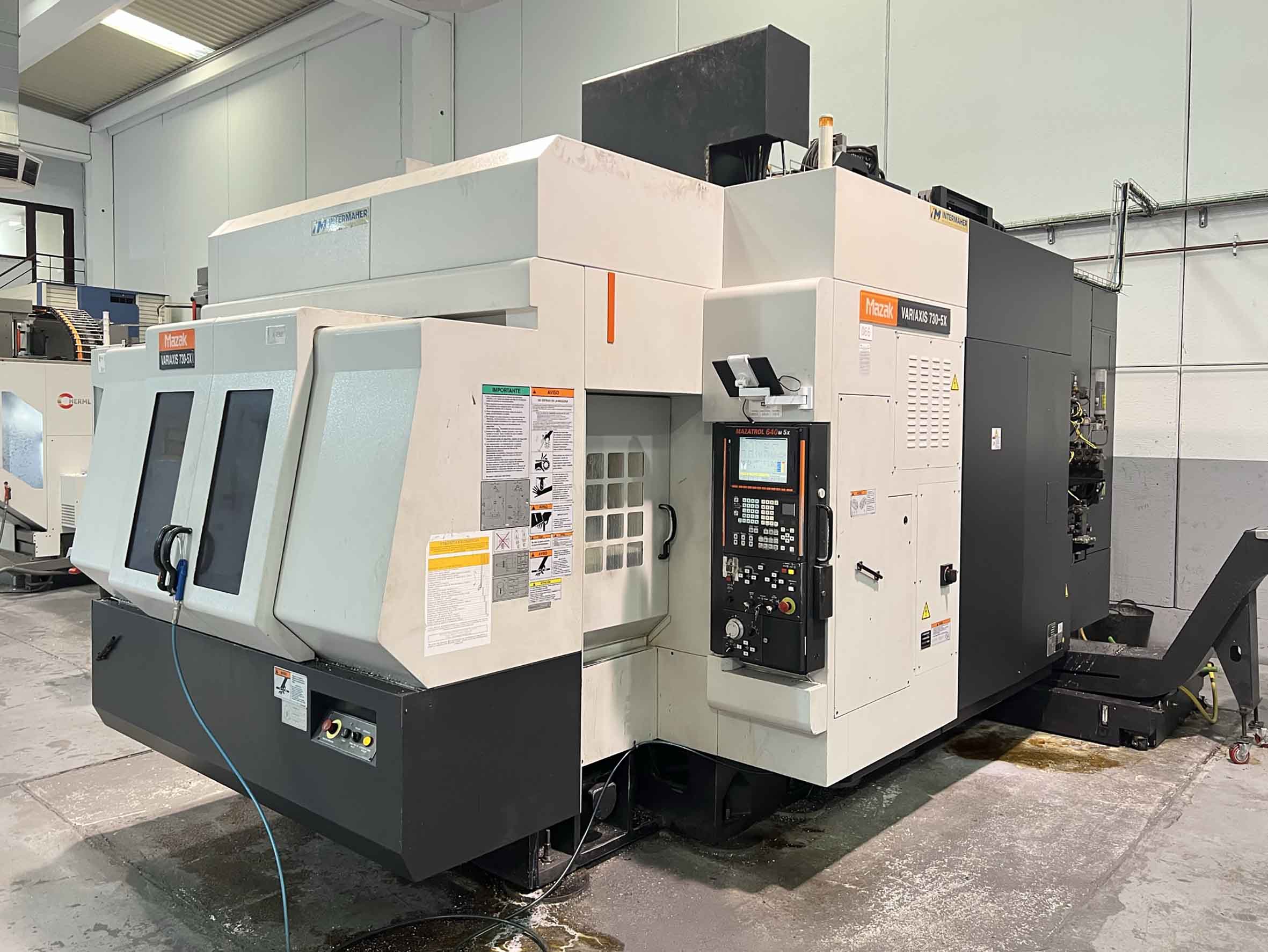

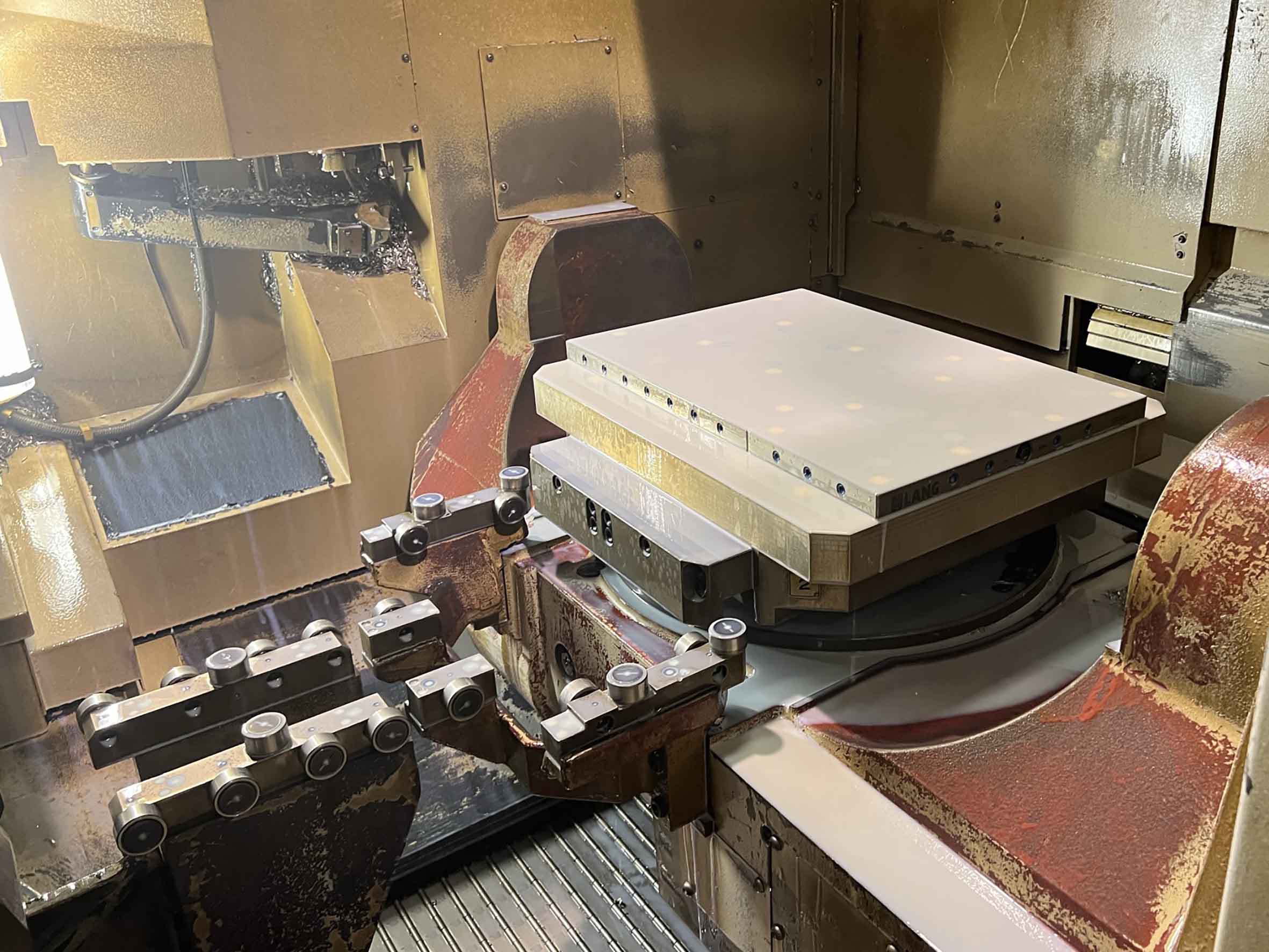

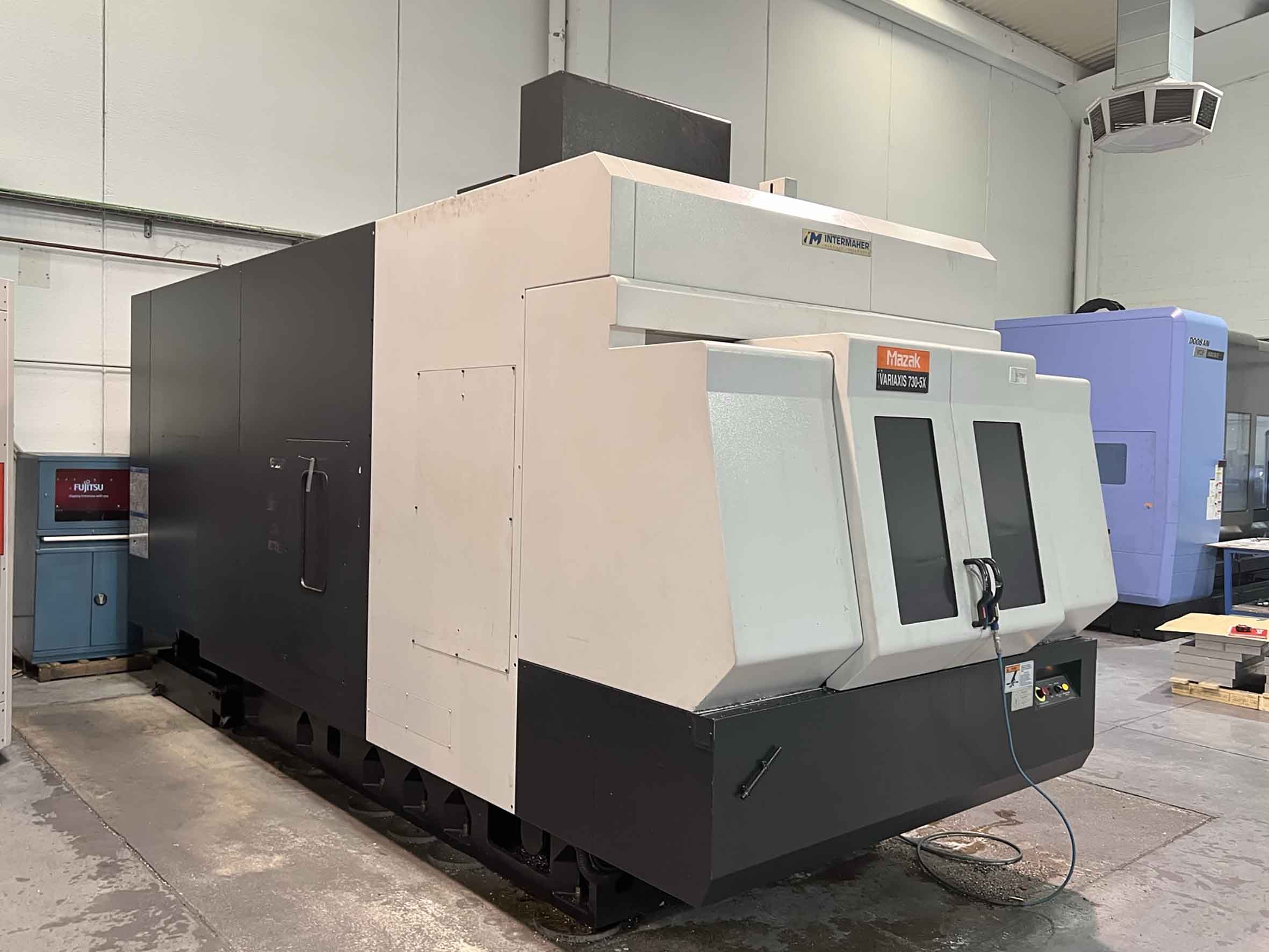

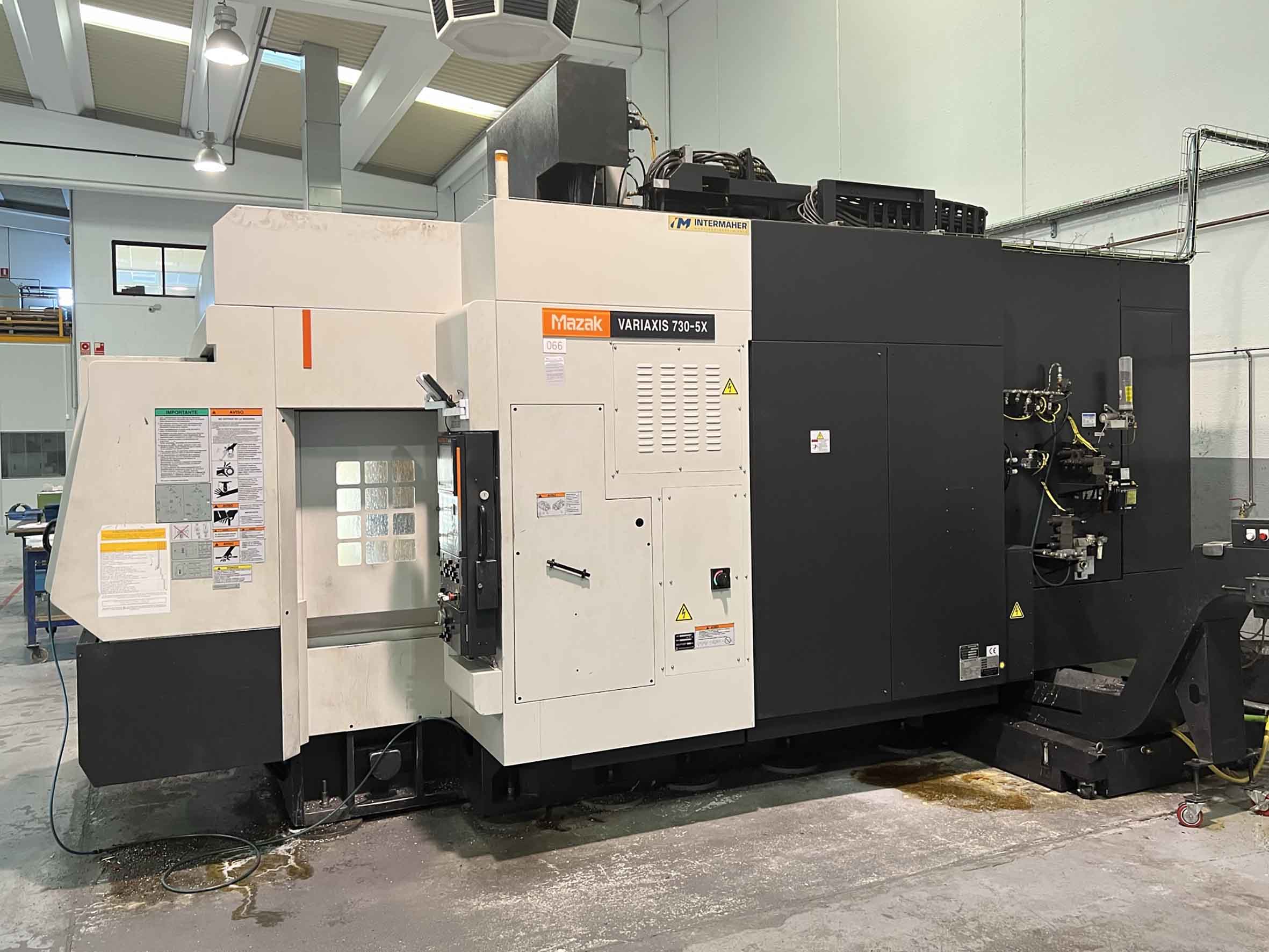

MAZAK Variaxis 730 5 Axis 2006
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND30798
.JPEG)
.JPEG)
.JPEG)
.JPEG)
Dati tecnici
- Condizione: usato
- Anno: 2006
Descrizione
Manufacturer MAZAK
Model VARIAXIS 730 5X
Year 2006-04
CNC MAZATROL 640 M 5X
Table dimension 500 x 500 mm.
Number of Tables 2
Automatic Twin Pallet System INCLUDED
Max Allowed Weight on table ...
Manufacturer MAZAK
Model VARIAXIS 730 5X
Year 2006-04
CNC MAZATROL 640 M 5X
Table dimension 500 x 500 mm.
Number of Tables 2
Automatic Twin Pallet System INCLUDED
Max Allowed Weight on table 500 kg.
X Axis travel 730 mm.
Y Axis travel 850 mm.
Z Axis travel 560 mm.
A Axis travel 150º (-120º - 30º)
C Axis Index +/- 360º
Turning Speed 10.000 rpm
Number of Ranges 2 Gamas/ Ranges
Taper SK 50
Head Power 30/22 kW
Rapid Traverse X, Y, Z Axis 42.000 mm/min
Max. Working Feed X, Y, Z Axis 42.000 mm/min.
Rapid Traverse A, C Axis 18.000 º/min
Max. Working Feed A, C Axis 9.000 º/min
Tool Magazine Capacity 40 Herr. / Tools
Chip-to-chip 4,5 seg.
Max. tool length 400 mm.
Max. tool Diameter 210 mm.
Internal Coolant 20 Bar INCLUDED
Chip Conveyor INCLUDED
Total Power Required 75,2 Kw.
Dimension (Length x Width x Hight) 6.000 x 3.585 x 3.600 mm.
Machine Weight 21.000 Kg.
