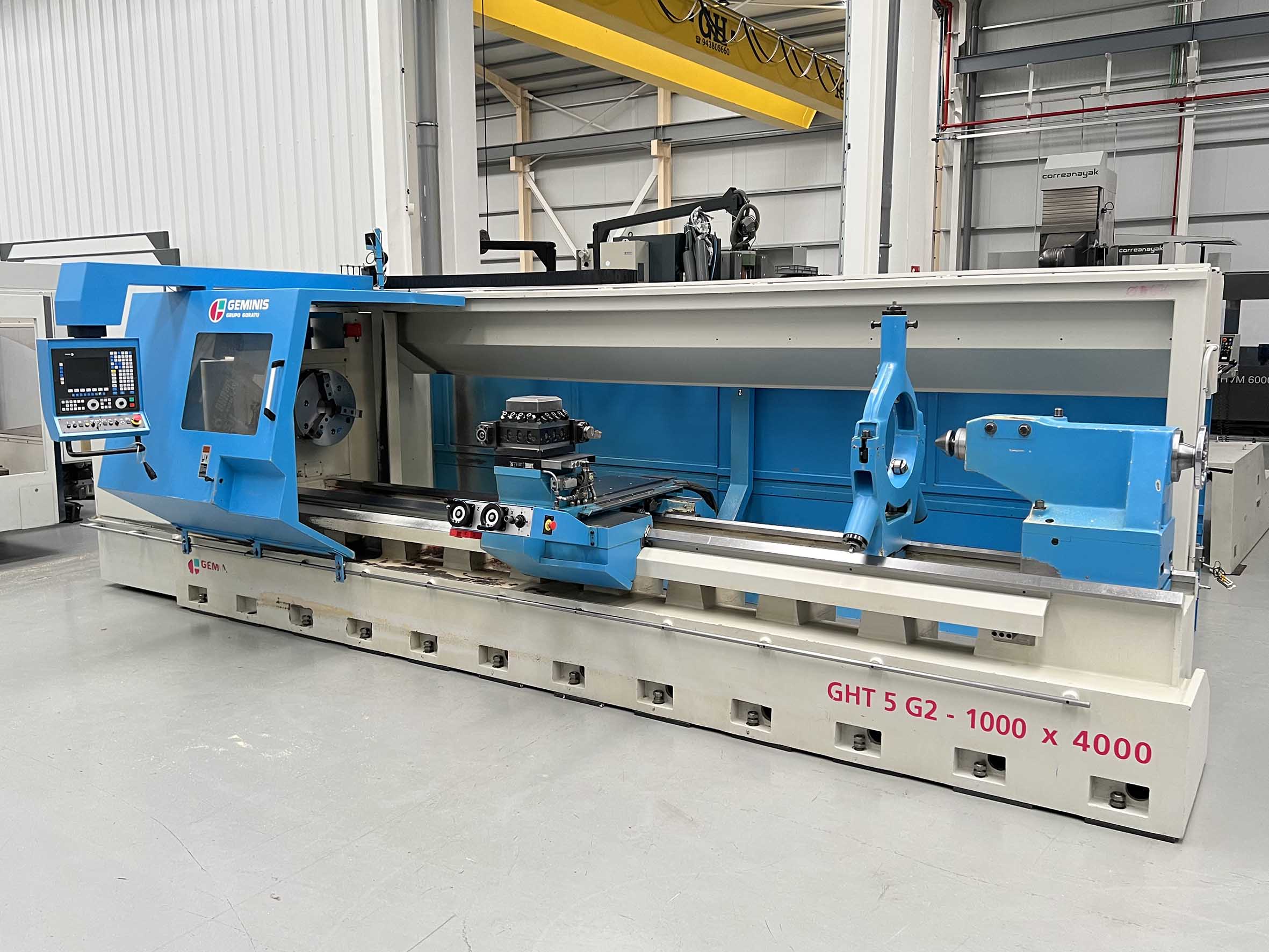

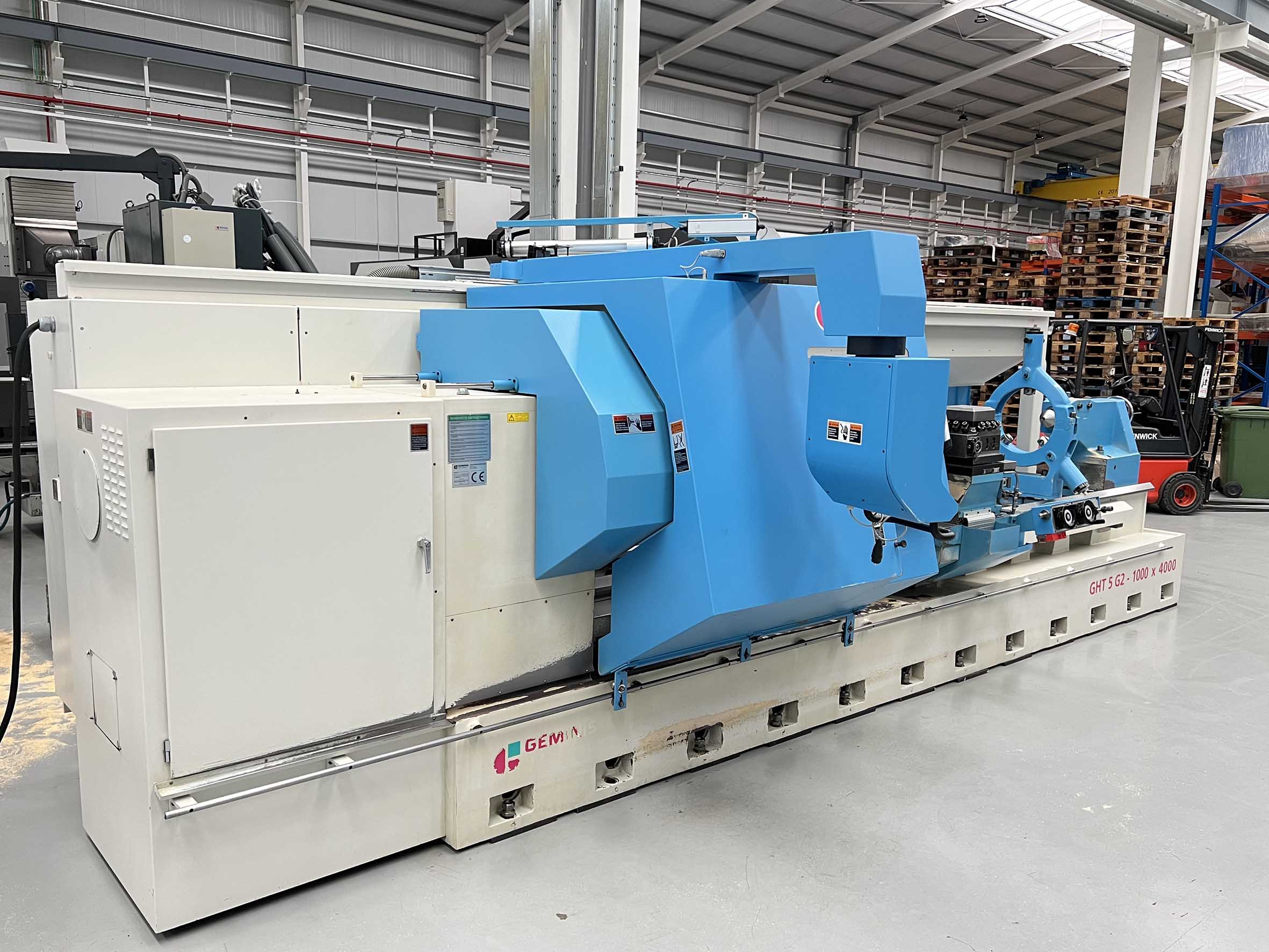

GEMINIS GHT5 G2 1000X4000 2007
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND32790
.jpg)
.jpg)
.jpg)
.jpg)
Dati tecnici
- Condizione: usato
- Anno: 2007
Descrizione
Manufacturer GEMINIS
Model GHT-5 G2 1000×4000
Year 2.007
CNC FAGOR 8055 TC/C
Max.Swing Over Bed Ø 1.000 mm.
Max. Swing Ø 1.000 mm.
Max Swing Over Cross Slide Ø 680 mm.
Distance Between Cent ...
Manufacturer GEMINIS
Model GHT-5 G2 1000×4000
Year 2.007
CNC FAGOR 8055 TC/C
Max.Swing Over Bed Ø 1.000 mm.
Max. Swing Ø 1.000 mm.
Max Swing Over Cross Slide Ø 680 mm.
Distance Between Centres 4.000 mm.
Rapid Feed X, Z Axis 8 m/min
Turning Speeds 0-1400 rpm
Automatic Speed Ranges 4
Main Spindle Motor Power 37 kW.
Spindle Nose DIN-55026-B11
Turret Positions 4
Turret Type SAUTER 300 X 300
C Axis INCLUDED
Ready for installation Milling Head with Y Axis ((±50 mm). Installation in carriage INCLUDED
Ready to installation of grinding head INCLUDED
3 Jaw universal chuck Ø500 mm. INCLUDED
4 Jaw independent chuck Ø700mm. INCLUDED
3 support steady rest 70-410 mm. INCLUDED
Mobile steady rest 40-160 mm. INCLUDED
Longitudinal chip conveyor INCLUDED
High pressure pump 6 bar INCLUDED
25 Tool Holder ( Capto Type) INCLUDED
10 set of Jaws for Universal Chuck 3 Jaws INCLUDED
Chuck Protection INCLUDED
Quill Travel 104 mm.
Tailstock quill Ø 140 mm
Tailstock quill travel 300 mm
Max Weight Between Centres (1 steady) 6.200 kg
Max. Weight Between Centres 4.800 kg
Machine Weight 12.000 kg
Total Power Required 45 kW
