TOS VARNSDORF WHN 13.4
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND3303
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione
TOS WHN 13.4 CNC HBM WITH HEIDENHEIN TNC 530i. NEW 1991/COMPLETELY OVERHAULED 2008
Spindle diameter 130 mm
Spindle speed two steps 340-1.365 rpm
Main motor 36 KW
Spindle stroke W 800 mm
Vert ...
TOS WHN 13.4 CNC HBM WITH HEIDENHEIN TNC 530i. NEW 1991/COMPLETELY OVERHAULED 2008
Spindle diameter 130 mm
Spindle speed two steps 340-1.365 rpm
Main motor 36 KW
Spindle stroke W 800 mm
Vertical travel Y 2000 mm
Column travel Z 1150 mm
Table travel X 2000 mm
Feeds X/Y/W/Z 5000 mm/min
CNC rotary table, 360degrees 1600 x 1800 mm
Tableload 12 000 kg
Range of the mechanic overhauling:
- Renewal of ballscrews , all axis.
- All guide ways regrinded, partially remilled and SKC 60 sprayed on.
- Renewed telescopic covers
- Renewed lubrication system
- Renewed hydraulic systems
- Fundamental overhauling of the spindlestock
- Renewal of all hydraulic and pneumatic hoses
- Renewal of all media- and cable chains
- Ne wires and rolls for counter weight.
- Completely new painted
Range of the electric overhauling:
- Dismantling of all electricity
- Renewal of all drives
- Feed drives = Siemens 1FT6
- Main drive = Siemens 1PH7
- Electronically reversible drive via Siemens drive controller Simodrive 611d
- New position-measuring devices make Heidenhain
- Linear axes = Linear absolute encoders
- Help-/positioning axes = Heidenhain shaft encoders
- Renewal of the entire wiring

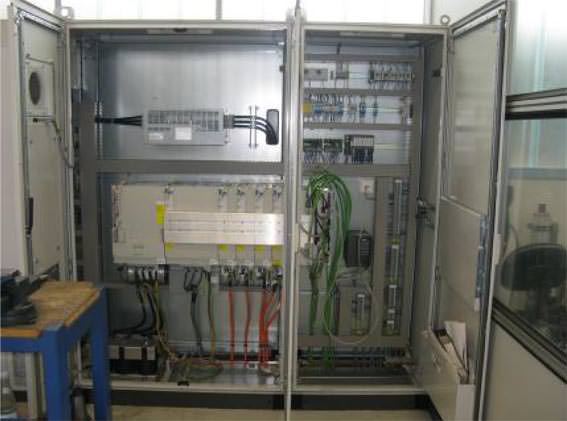

- New el-cabinet including air conditioning
- New control panel
- Installation of New CNC control Heidenhain iTNC530
