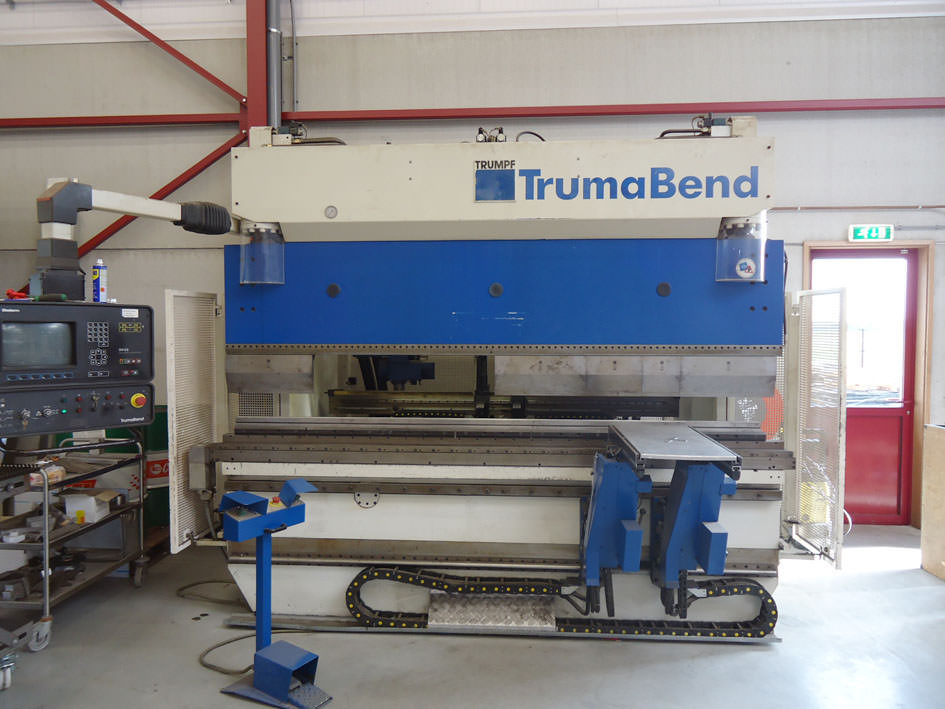

LVD TRUMPF TRUMABEND 125/3050 1995
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND3318
Dati tecnici
- Condizione: usato
- Anno: 1995
Descrizione
Capacity x Max length 125 ton x 3050 mm
Backgauge : Manu (1)-Electr(2)-CNC (3) CNC

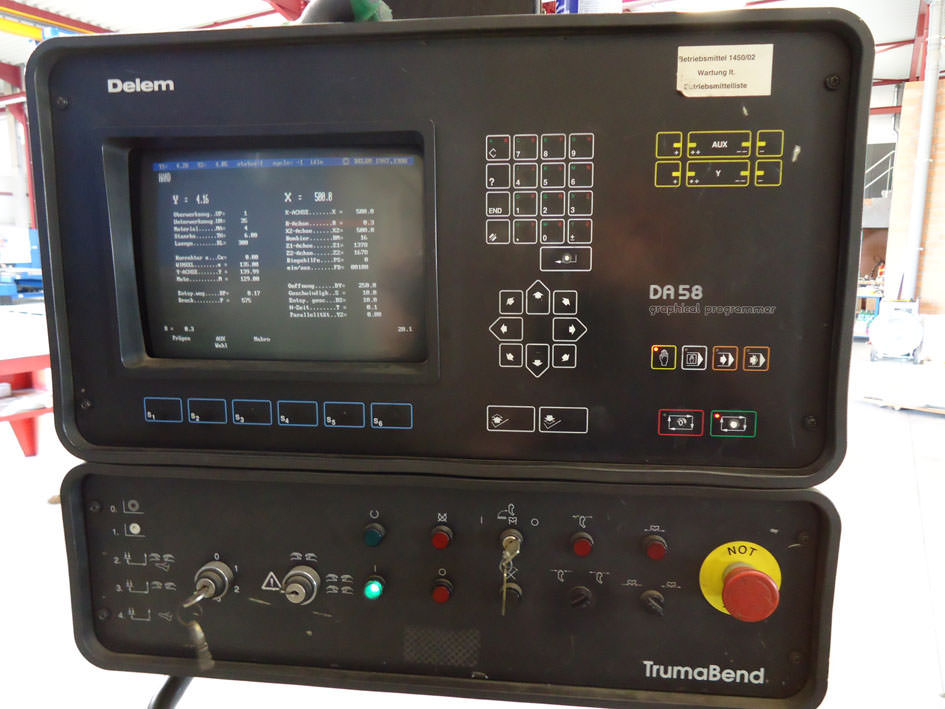

Control DA58 graphic
Max stroke 200 mm
Table width L -- R 180 mm
Locking speed 130 mm/sec
Working speed 1 ...
Capacity x Max length 125 ton x 3050 mm
Backgauge : Manu (1)-Electr(2)-CNC (3) CNC
Control DA58 graphic
Max stroke 200 mm
Table width L -- R 180 mm
Locking speed 130 mm/sec
Working speed 1-10 mm/sec
Returning speed 100 mm/sec
Electric motor (power) 15 kW
Power needed 380V - 23 kVa
Length L -- R 3050 mm
Depth F -- B 1833 mm
Height 2650 mm
Weight 9250 kg
Extra info
10 axes: Y1 - Y2 - R - V - Z1 - Z2 - X1 - X2 - X' - I
CNC bombation
willa equilidur hydraulic clamping
movable multi-V
automatic bendingaids
