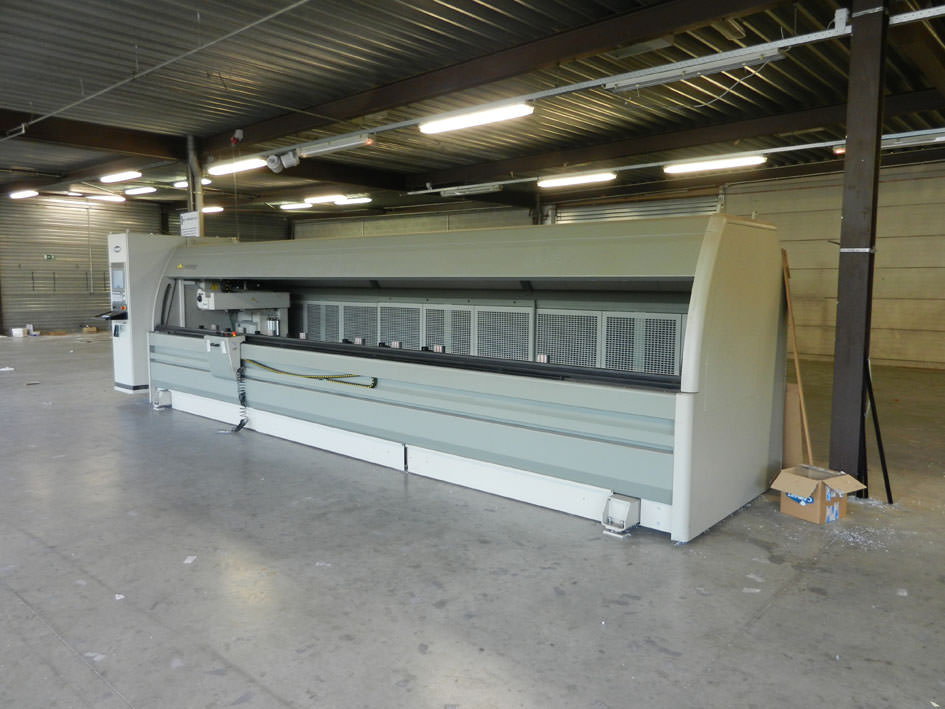

EMMEGI comet Isola 2005
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND3330
Dati tecnici
- Condizione: usato
- Anno: 2005
Descrizione
Table longitudinal travel (X-axis) 6300 mm
Cross travel head (Y-axis) 525 mm
Height travel head (Z-axis) 335 mm
Admission in spindle (ISO) HSK-40E
Power on the spindle 5,5 kW
Control (type) CNC-P ...
Table longitudinal travel (X-axis) 6300 mm
Cross travel head (Y-axis) 525 mm
Height travel head (Z-axis) 335 mm
Admission in spindle (ISO) HSK-40E
Power on the spindle 5,5 kW

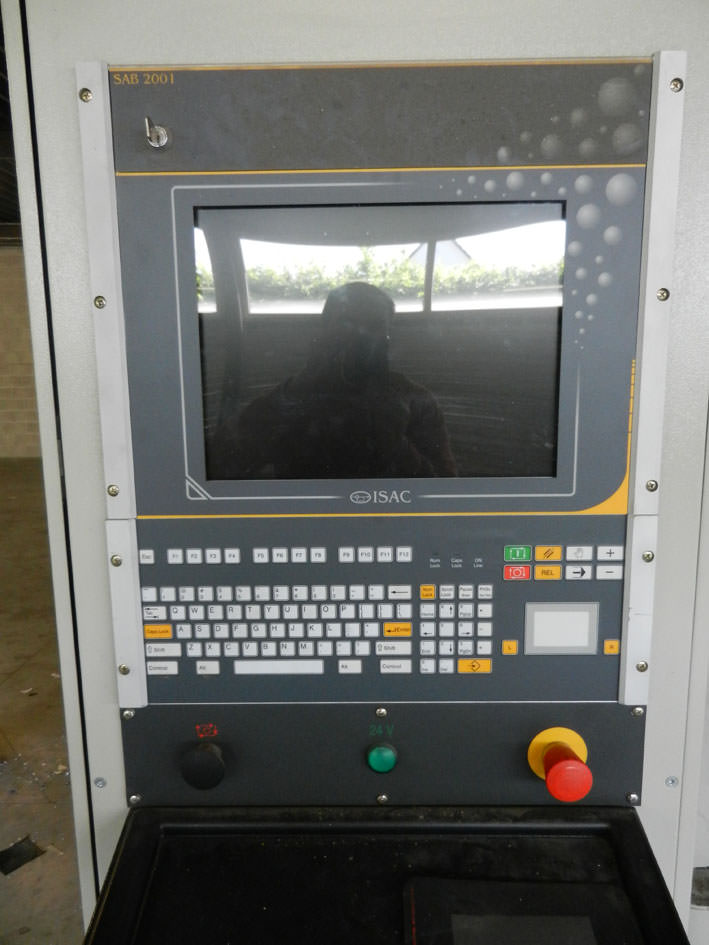

Control (type) CNC-PC
Number of toolholders 8 + 1 tools
Number of rotations (from X to Y rpm) 24 000 rpm
Power principal motor 23 kW
Length L -- R 8210 mm
Depth Fw -- Bw 2065 mm
Height 2120 mm
Weight 4800 kg
Extra info
4 axes - suitable for alu/pvc/steel
max workpiece size machinable on 1 face, gripped in standard vice with tool length 35 mm + toolholder length 105 mm >> 240 x 170 x 7500 mm
max workpiece size machinable on 3 faces, gripped in standard vice with tool length 35 mm + toolholder length 105 mm >> 195 x 170 x 6300 mm
tapping capacity: M10
manual positioning/unloading
workpiece reference stop with N/C positioning
8 pneumatic vices
automatic vice positioning through X-axis
