CME FCM-8000 2000
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND33620
.JPEG)
.JPEG)
.JPEG)
.JPEG)
Dati tecnici
- Condizione: usato
- Anno: 2000
Descrizione

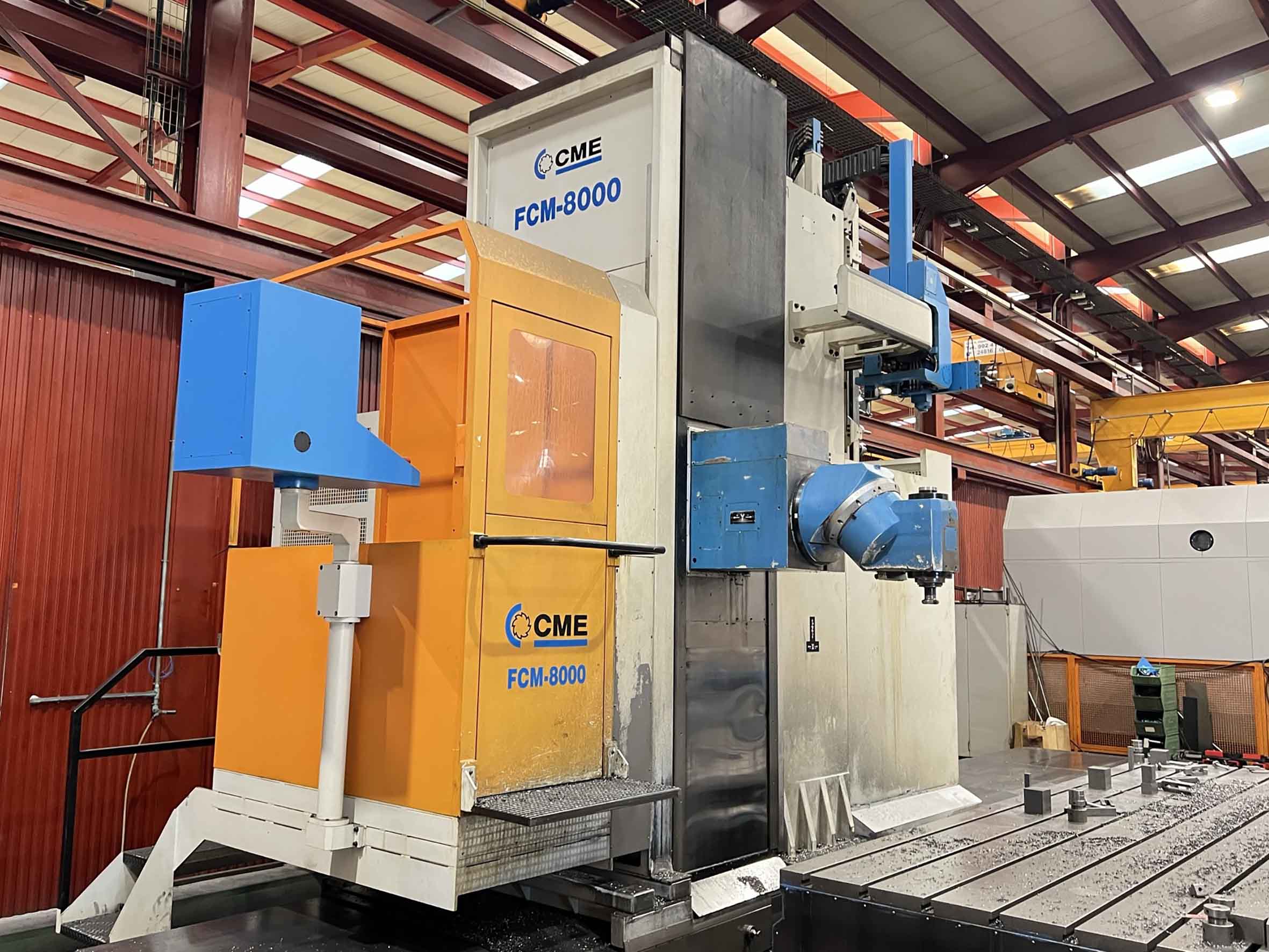

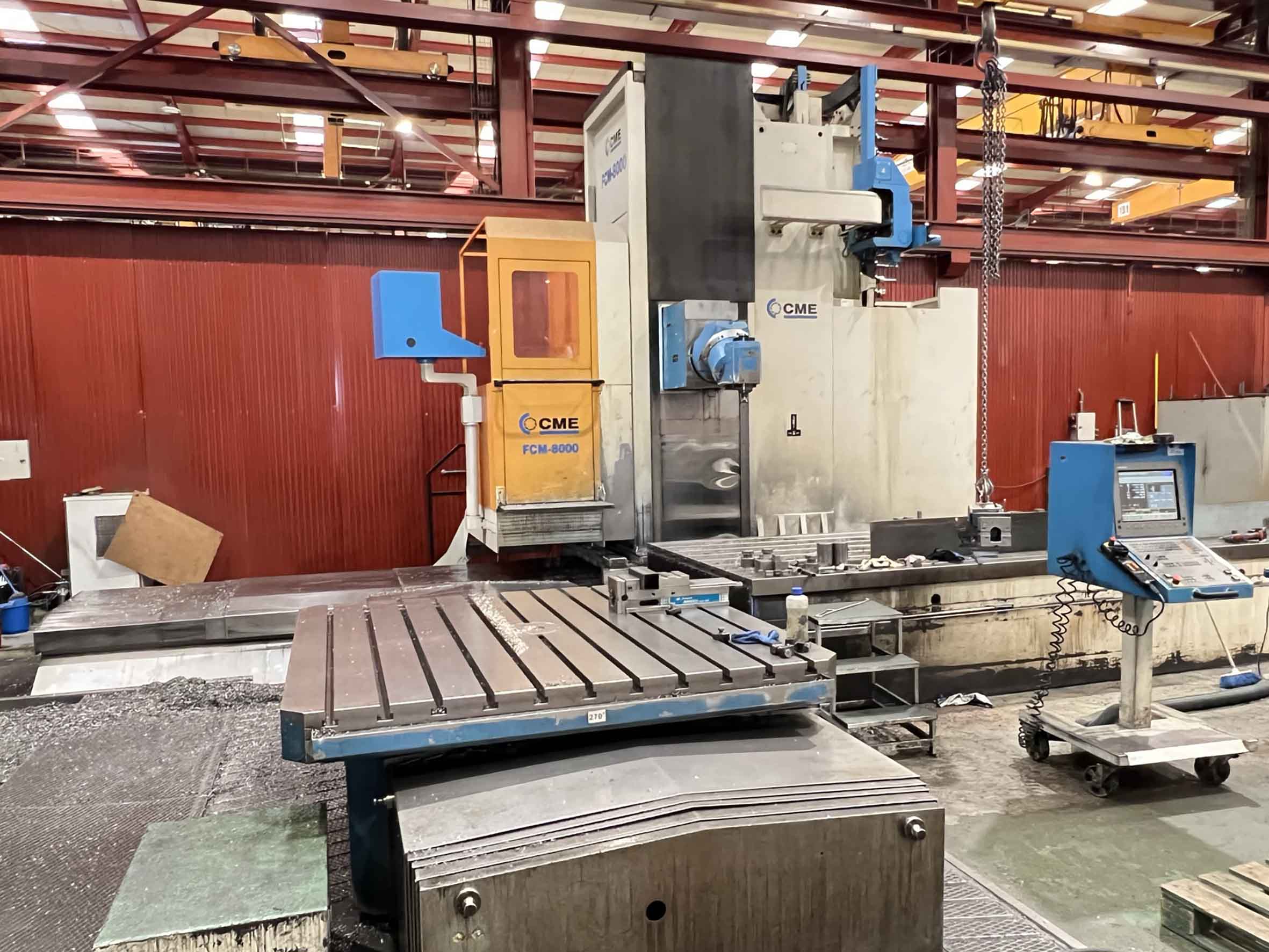

Technical Features of this Moving Column Milling Machine
Manufacturer CME
Model FCM-8000
Year 2000
CNC HEIDENHAIN TNC-430 M
Table Surface 5.000 x 2.000 mm.
Juaristi MG-12 INCLUDED
Travels (X/Y/ ...
Technical Features of this Moving Column Milling Machine
Manufacturer CME
Model FCM-8000
Year 2000
CNC HEIDENHAIN TNC-430 M
Table Surface 5.000 x 2.000 mm.
Juaristi MG-12 INCLUDED
Travels (X/Y/Z) 8.000 / 1.500 / 2.500 mm.
Rapid Feed 10.000 mm/min
Spindle Taper ISO 50 DIN 69871 AD
Turning Speeds 3.000 rpm
Main spindle power 30 kW
Automatic head 45º ISO 2.5º/2.5º 3.000 rpm INCLUDED
ATC type Horizontal / Vertical
ATC Positions 60
Max tool length 350 mm.
Max tool diameter 125 mm
Max tool diameter with free adjacent positions 250 mm
Max tool weight 20 kg
Chip conveyor INCLUDED
Internal Coolant 20 Bar INCLUDED
Double operator control panel INCLUDED
Portable Handwheel Heidenhain HR-410
Total Power 65 kVA
Machine Weight 69.430 kg
Machine Dimensions (LxWxH) 15.840×10.000×4.840 mm
Type JUARISTI MG-12
Table surface 2.000 x 2.000 mm.
Cross Table travel (W Axis) 2.000 mm.
Table turning 0.001º / 360.0000 POS
Max weight allowed on table 12.000 kg
Table weight 15.000 kg
