COLCHESTER Triumph 2000 1983
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND33991
Dati tecnici
- Condizione: usato
- Anno: 1983
Descrizione

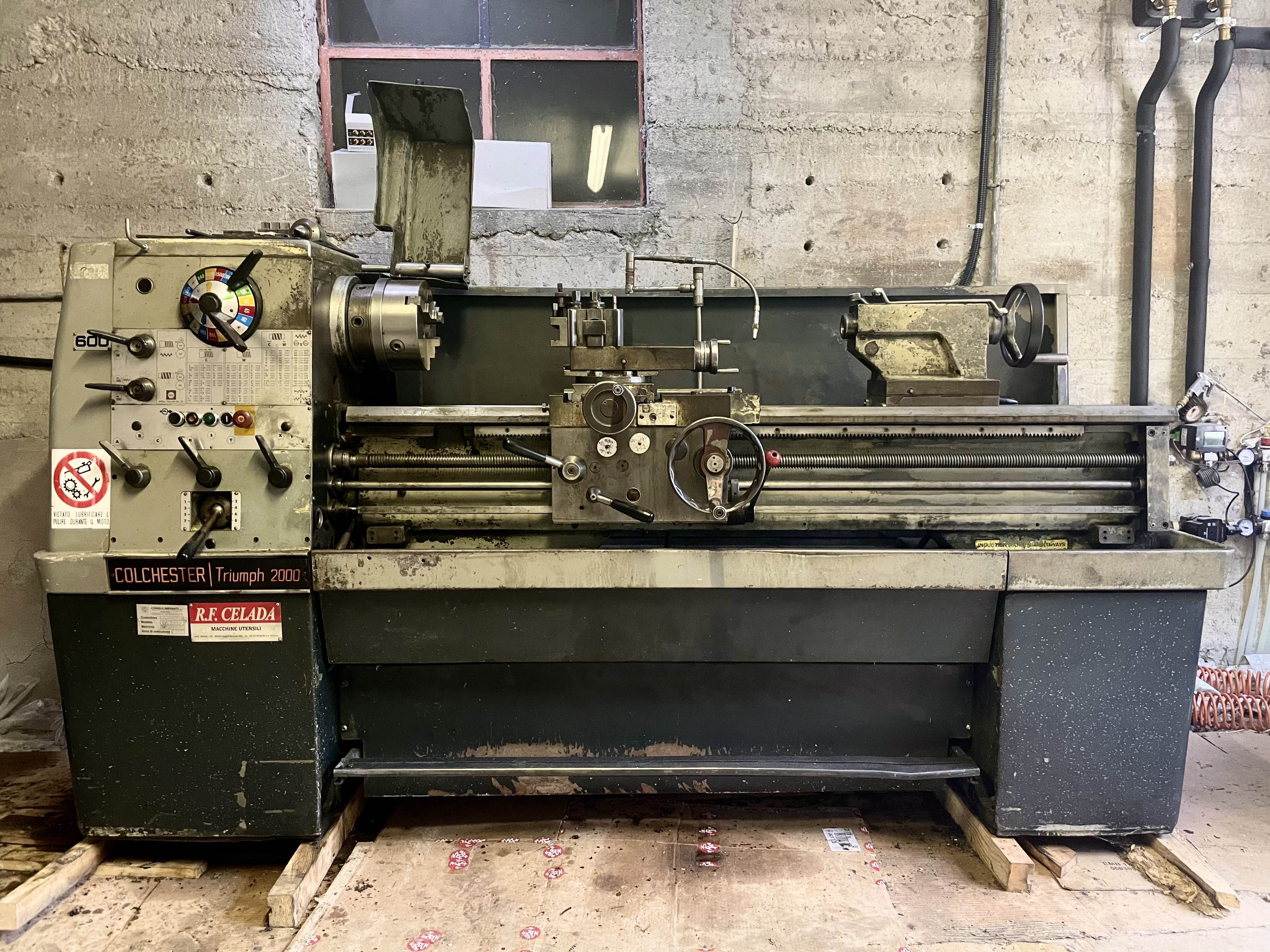

Colchester Triumph 2000
Height of Centre 195mm
Swing over Bed 400mm
Swing in Gap 584mm
Swing over Cross Slide 248mm
Centre Distance 1250mm
Bed Width 318mm
...
Colchester Triumph 2000
Height of Centre 195mm
Swing over Bed 400mm
Swing in Gap 584mm
Swing over Cross Slide 248mm
Centre Distance 1250mm
Bed Width 318mm
HEADSTOCK
Spindle Bore 54mm
Spindle Speeds 16
Spindle Speeds 25-2000rpm
CROSS/TOP SLIDE
Travel of Cross Slides 250mm
Width of Cross Slide 180mm
Travel of Top Slide 130mm
Width of Top Slide 73mm
TAILSTOCK
Tailstock Centre 5MT
FEEDS
Feed Range (Long) 9mm/rev 0.35-2.45mm
Feed Range Cross (mm/rev) 0.18-1.22mm
Threads Metric (51 Steps) 0.2-1.4mm
Threads Imperial (56 Steps) 2-56tpi
Main Motor 5.5kW
Weight 1280kg
