Dati tecnici
- Condizione: usato
- Anno: 1971
Descrizione

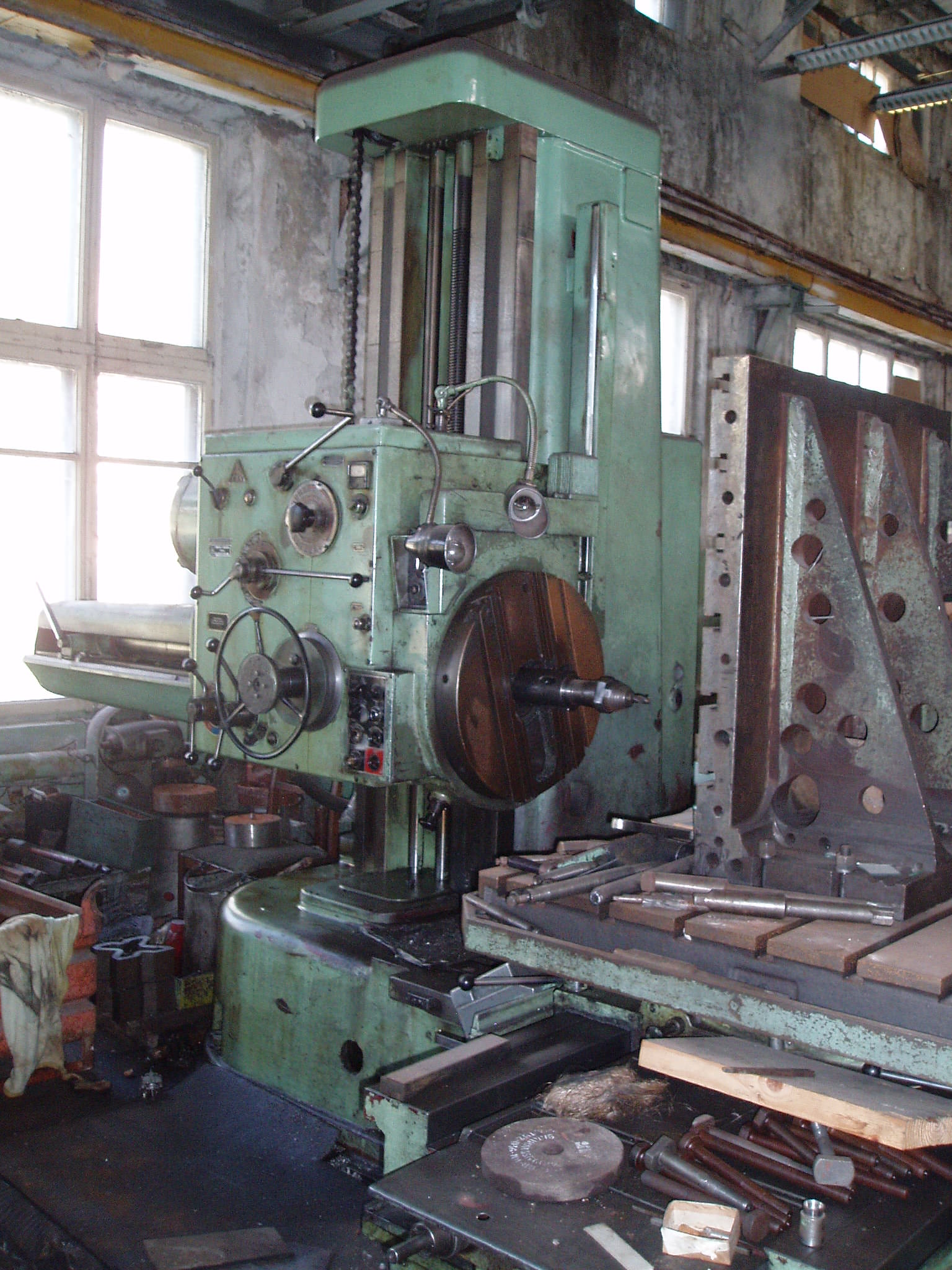

Manufacturer: TOS VANSDORF
Model: W100
New in: 1971
Condition: very good, under power, ready to work
Location: our Warehouse Rudniki, Poland
Spindle diameter: 100 mm
Rotary Table: ...
Manufacturer: TOS VANSDORF
Model: W100
New in: 1971
Condition: very good, under power, ready to work
Location: our Warehouse Rudniki, Poland
Spindle diameter: 100 mm
Rotary Table: 1 250 x 1 250 mm
Spindle speeds range: 7.1 - 1120 rpm
Cross table travel: 1 250 mm
Longitudinal table travel: 1 600 mm
Vertical travel: 1 120 mm
Spindle taper: Morse 6
Planning Shield : 600 mm
Planning Shield Speeds: 7,1-224 rpm
Max. weight of workpiece:3000 kg
Main motor power: 10 kW
Dimensions: 3000 x 6015 x 3000 mm
Weight of machine: 17 500 kg
Machine equipped with:
- Tailstock
- Rotary Table
