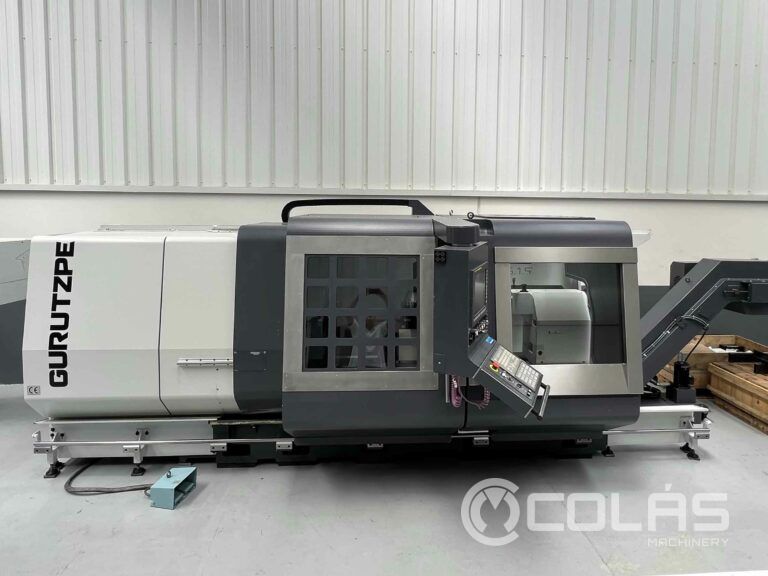

GURUTZPE GL- 10.5 1,5 2018
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND34770
Dati tecnici
- Condizione: usato
- Anno: 2018
Descrizione
Manufacturer GURUTZPE
Model GL 10.5.1,5
Year 2018
CNC FANUC Series Oi-TF (15”)
Capacities
Distance Between Centres 1.500 mm.
Swing over carriage 700 mm.
Swing over bed 900 mm.
Center height ...
Manufacturer GURUTZPE
Model GL 10.5.1,5
Year 2018
CNC FANUC Series Oi-TF (15”)
Capacities
Distance Between Centres 1.500 mm.
Swing over carriage 700 mm.
Swing over bed 900 mm.
Center height 525 mm.
Max allowed weight 5.000 kg
Main Spindle and tailstock quill
Spindle bore 130 mm.
Spindle nose 55026 – A-11
Main spindle power 30/37 kW
Spindle torque (S1/S6) 3200/3950 Nm
Turning Speeds 0-1.200 rpm
Head Automatic Range Number 2
Ø front bearing 180 mm.
Ø tailstock quill 140 mm.
CNC Axis
X axis travel 500 mm.
Rapid Traverse X Axis 8 m/min
Z axis travel 1.600 mm.
Rapid Traverse Z Axis 6 m/min
Bed and carriages
Total bed width 575 mm.
Bed guides 85 mm.
Cross carriage dimension 530×320 mm.
Longitudinal carriage dimension 1.170×770 mm.
Additional equipment
Turret Baruffaldi TAN-210/4
Chip Conveyor INCLUDED
Chuck with 4 Independent Hard Jaws Ø 800 mm INCLUDED
Steady Rest 3 Supports Ø 300 mm INCLUDED
RENISHAW tool touchprobe INCLUDED
RENISHAW RMP 60 part touchprobe INCLUDED
Tool holder INCLUDED
Large amount of Jaws INCLUDED
Portable Handwheel FANUC INCLUDED
Others
Total power 46 kW
Machine Weight 12.000 kg.
