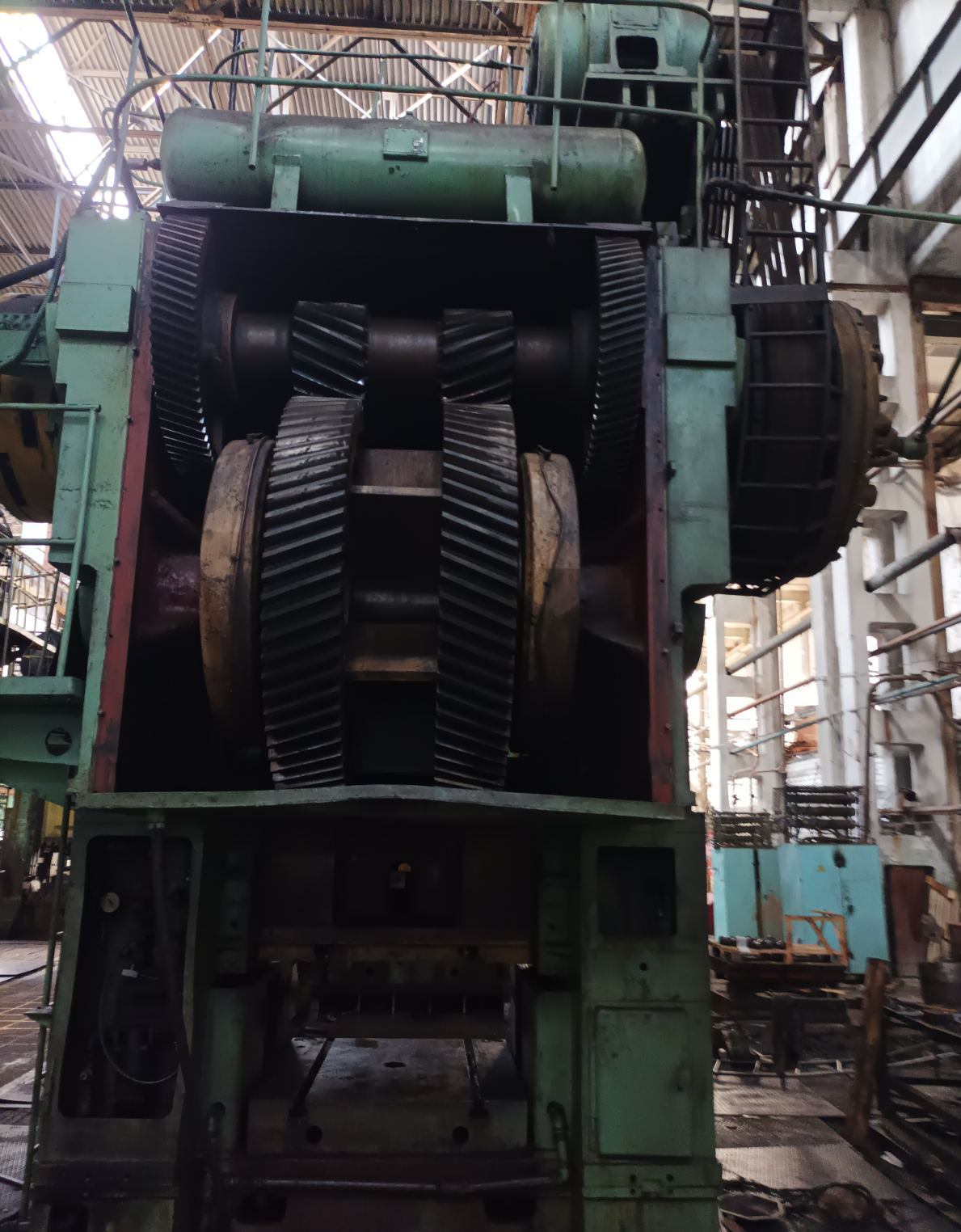

TMP VORONEZH K 504.003.844 (KB8344)
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND35760
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione
Machine in a good condition, ready for loading in any coutry , any additional information on request
Manufacturer: Russian make Voronezh (TMP)
...
Machine in a good condition, ready for loading in any coutry , any additional information on request
Manufacturer: Russian make Voronezh (TMP)
Year of manufacture: 1981
Nominal force: 2 500 t
Slide stroke: 4, 5 – 190 mm
Continuous slide strokes per minute, not less then 20
Single slide strokes per minute, 12
Max distance between tabl and slide in it’s lower position, 800 mm
Adjustment stroke, 15 mm
Table dimensions 1250x1400 mm
Slide dimensions, front to back, 900 mm
Thiknes of bolster plate, dia 125
Dimensions:
from left to right: 4800 mm
front to back: 3340 mm
height above floor: 5 980 mm
Total height of the press: 7060 mm
Weight of the press: 124 230 kg
