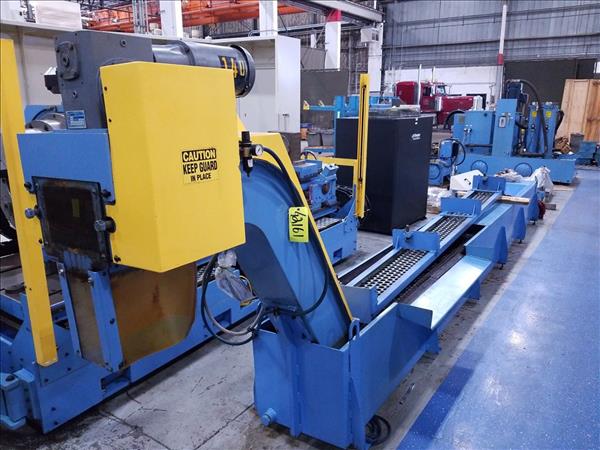

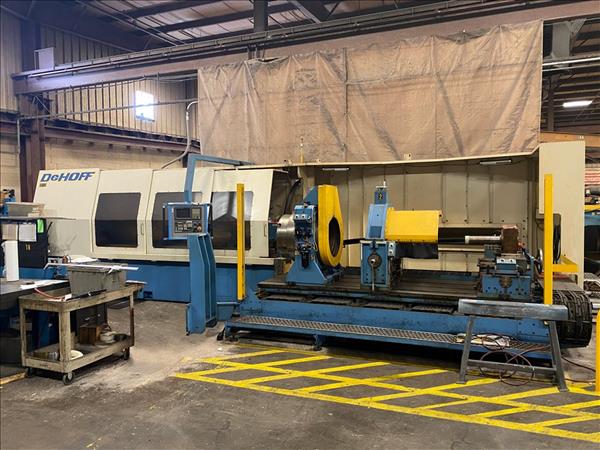

DEHOFF 31020RT-BTA
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND35766
.jpg)
.jpg)
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione
Drill Capacity: 3" (Steel),Max. Part Length: 120",Number of Drill Heads: 1,Number of Spindles: 1,Drill Head Stroke: 120",Feed Rate: 0.1 IPM - 30 IPM,Rapid Retraction of Drill Head: 150 IPM,Max. Spindl ...
Drill Capacity: 3" (Steel),Max. Part Length: 120",Number of Drill Heads: 1,Number of Spindles: 1,Drill Head Stroke: 120",Feed Rate: 0.1 IPM - 30 IPM,Rapid Retraction of Drill Head: 150 IPM,Max. Spindle Speed: 0 - 2000 RPM,Min. - Max. Part Diameter: 5" - 16",Max. Part Weight: 6750 Lb.,Spindle Centerline Parallel to Slide Ways: 0.0005 in / ft,Face of Pressure Head Perpendicular to Spindle: 0.0005",Spindle Runout: 0.0002",C Rotation B/C Axis,U Axis Pull Bore,X Axis Fixture Table,Z Axis Spindle,Pneumatic Lift Assist: Counter Rotation Assembly,Part Steady Rest & U-Axis Fixture Table,35.5" 3-Jaw Chuck w/ 17" Hole & Adapter Plate,25" 3-Jaw Chuck w/ 11" Hole; Adapter Plate & Sleeve Insert,(2) Vibration Dampen Carriage Tube Mill Guides,Work Holding Steady Rest w/ Air Assist,1500 PSI Fixed Displacement High Pressure Gear Pump,w/ AC Variable Frequency Drive; 117 GPM Max,500 Gal. Coolant System Tank Capacity,GE Fanuc Power Mate CNC Control,40 HP Spindle Motor,Chip Conveyor,Large Quantity of Various Size Drill Heads, Counterboring Heads,Carbide Inserts, Drill Tubes, Adapters, Connectors,Driver Mounts, Split Clamps & Seal Rings, Bearings, Misc. Spares,Dimensions & Weight: Call Perfection Global for Dimensions, 50000 Lbs
