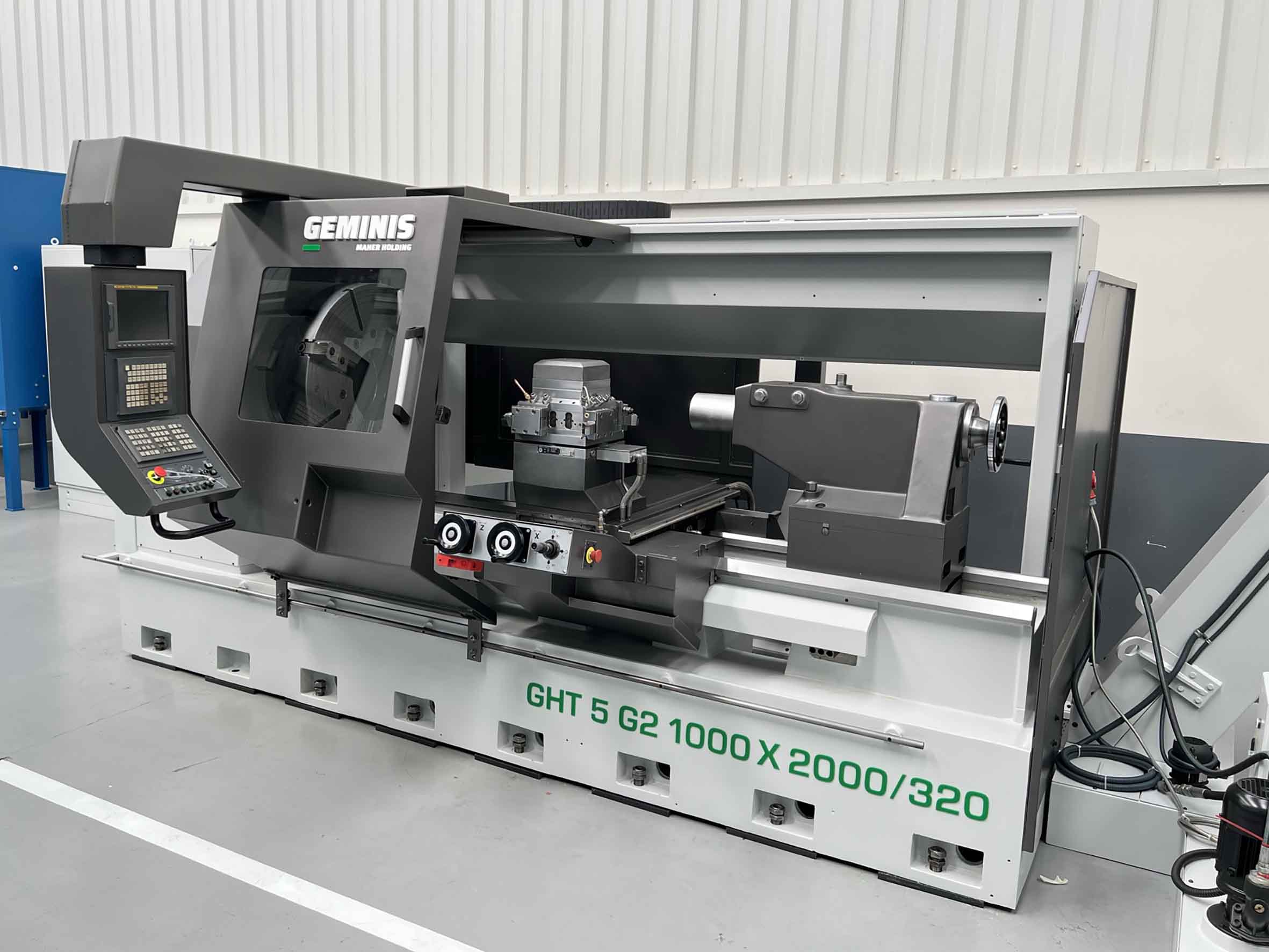

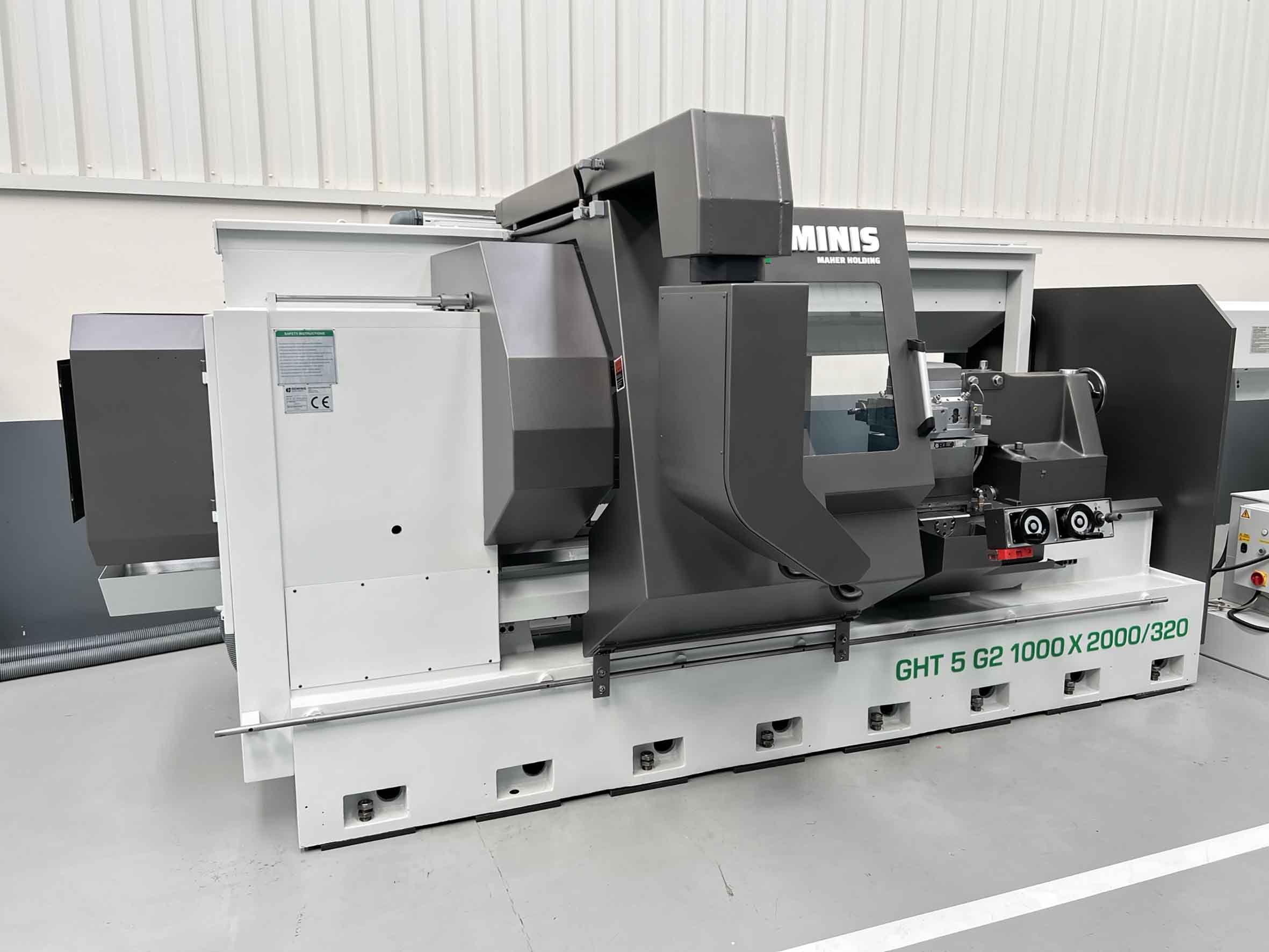

GEMINIS G2 1000x2000 2006
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND35938
.JPEG)
.JPEG)
.JPEG)
.JPEG)
Dati tecnici
- Condizione: usato
- Anno: 2006
Descrizione
Manufacturer GEMINIS
Model GHT5 G2 1.000×2.000
Year 2.006
CNC FANUC 21 i TB
Max. Swing Over Bed Ø 1.000 mm.
Max. Turning diameter 1.000 mm.
Max Swing Over Cross Slide Ø 680 mm.
Distance Betw ...
Manufacturer GEMINIS
Model GHT5 G2 1.000×2.000
Year 2.006
CNC FANUC 21 i TB
Max. Swing Over Bed Ø 1.000 mm.
Max. Turning diameter 1.000 mm.
Max Swing Over Cross Slide Ø 680 mm.
Distance Between Centres 2.000 mm.
Rapid Feed X, Z Axis 8 m/min.
Turning Speeds 0-1400 rpm
Spindle bore 320 mm.
Spindle Automatic Ranges 4
Main Spindle Motor Power 37 kW
Turret Type SAUTER 300 X 300
Turret Positions 4
Chuck with 4 Indep. Hard Jaws Ø900 mm. INCLUDED
Swarf Conveyor INCLUDED
Coolant deposit with paper filter INCLUDED
High pressure pump 15 Bar INCLUDED
Chuck Protection INCLUDED
Complete Rear Protection INCLUDED
Tailstock Quill Diameter 140 mm.
Tailstock Quill Traverse 300 mm.
Piece Max. Weight Between Centres 4.800 kg.
Machine Weight 8.500 kg
Total Power Required 45 kW
