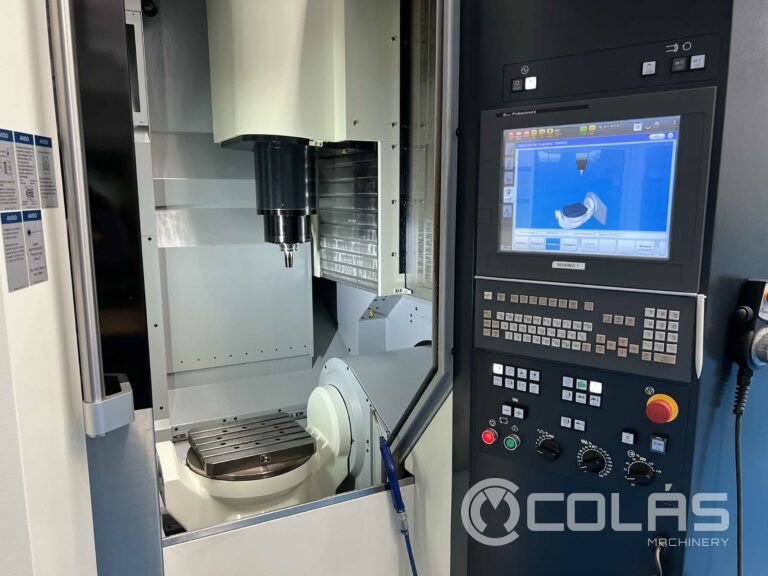

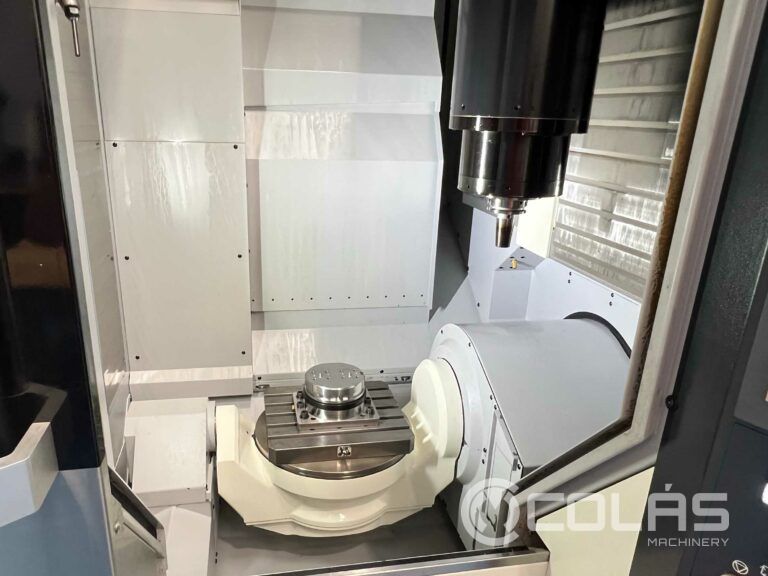

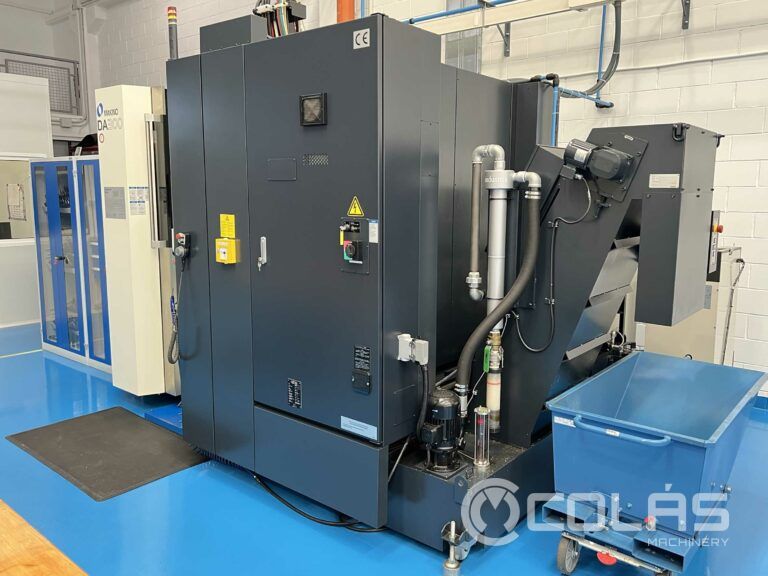

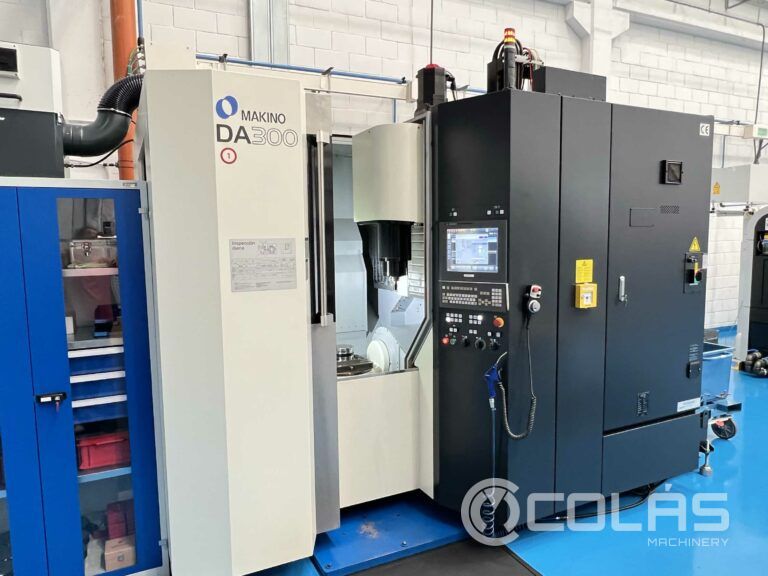

MAKINO DA300 2016
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND36702
.jpeg)
.jpeg)
.jpeg)
.jpeg)
Dati tecnici
- Condizione: usato
- Anno: 2016
Descrizione
Table
Table surface 340 x 300 mm
Max weight allowed on table 250 kg
T slots 12H8 x 4
Travels
Longitudinal Travel X Axis 450 mm.
Cross Travel Y Axis 620 mm
Vertical Travel Z Axis 500 mm.
Rang ...
Table
Table surface 340 x 300 mm
Max weight allowed on table 250 kg
T slots 12H8 x 4
Travels
Longitudinal Travel X Axis 450 mm.
Cross Travel Y Axis 620 mm
Vertical Travel Z Axis 500 mm.
Range of table A Axis 150º ( +30º-120º)
Turning table C Axis 360º continuo
Feeds
Max. Working Feed (X/Y/Z) 60.000 mm/min
Rapid feed (X/Y/Z) 60.000 mm/min
Main spindle
Taper HSK-A63
Spindle speed range 50 -20000 rpm
Main spindle power 22/11 kW
Torque 95/28 Nm
Automatic tool changer
Magazine capacity 60
Max tool weight 8 kg
Max. tool diameter without limitations Ø70 mm.
Max. tool length 300 mm.
Rigid Tapping INCLUDED
Internal coolant 15 MPa and air INCLUDED
Chip Conveyor with filtering system INCLUDED
Laser Tool Measuring BLUM INCLUDED
Touch Piece Measuring Renishaw INCLUDED
Additional Memory in CNC INCLUDED
Portable Handwheel INCLUDED
Intelligent software “Collision safeguard” INCLUDED
Others
Machine height 2.885 mm.
