HANKOOK VTC 125 E-APC
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND3750
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione

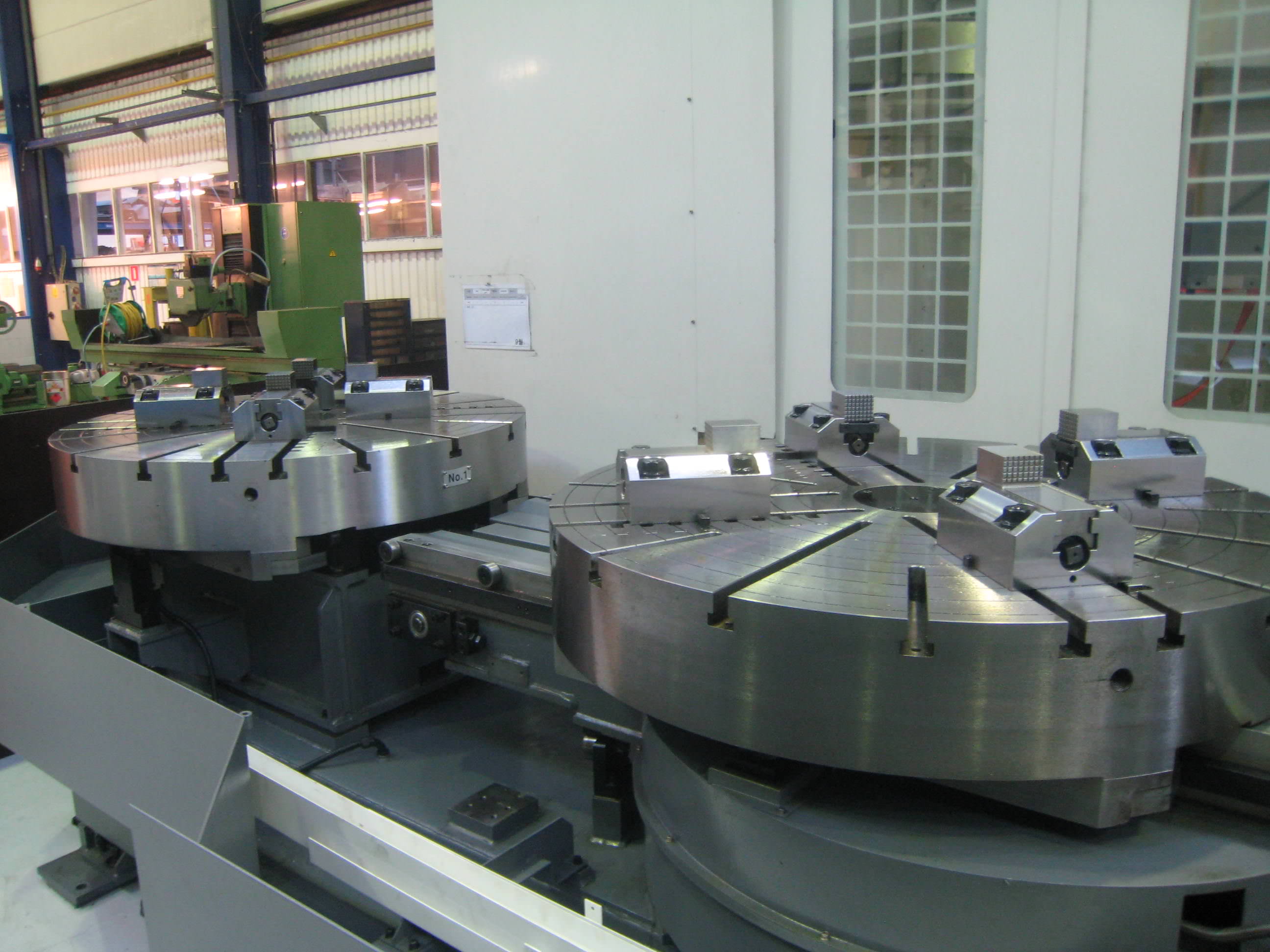

Single Column Double Pallet CNC Vertical Boring Mill
With C-Axis
Inv. No.: 11526DMD
Make HANKOOK
Model VTC 125 E-APC
Year of Manufacture New
Control Fanuc 31i TA
(with Manual Guide i ...
Single Column Double Pallet CNC Vertical Boring Mill
With C-Axis
Inv. No.: 11526DMD
Make HANKOOK
Model VTC 125 E-APC
Year of Manufacture New
Control Fanuc 31i TA
(with Manual Guide i)
Max Swing Ø 1600 mm
Max Turning dia Ø 1600 mm
Max Height 1400 mm
Max Torque 1500 kpm
4-Jaw Face Plate Ø 1250 mm
Max Load 8000 KG
Z-Travel 900 mm
X-Travel 1600 mm
Z- Feed 0,01 – 500 mm/min
X- Feed 0,01 – 500 mm/min
Rapid Traverse 12000 mm/min
2 x 12 Pos ATC
RPM 3333
Working Speed 0 – 1200°/min
Min Degree 0,001°
Spindle Motor kW 18,5/15
Axis Motor kW 7
RPM Table 0,9 – 360
RPM Spindle 15 – 3000
Ram 220 x 220 mm
Kw 45/37
Volt 400
Cycles 50
Floor Space 4875 x 3885 mm
Height 4690 mm
Weight of Machine 27,5 Ton
Including:
A.T.C. 12 Pos. Turret with Power tool
Coolant System
Transformer
Telescopic Bedcovers X-Axis
