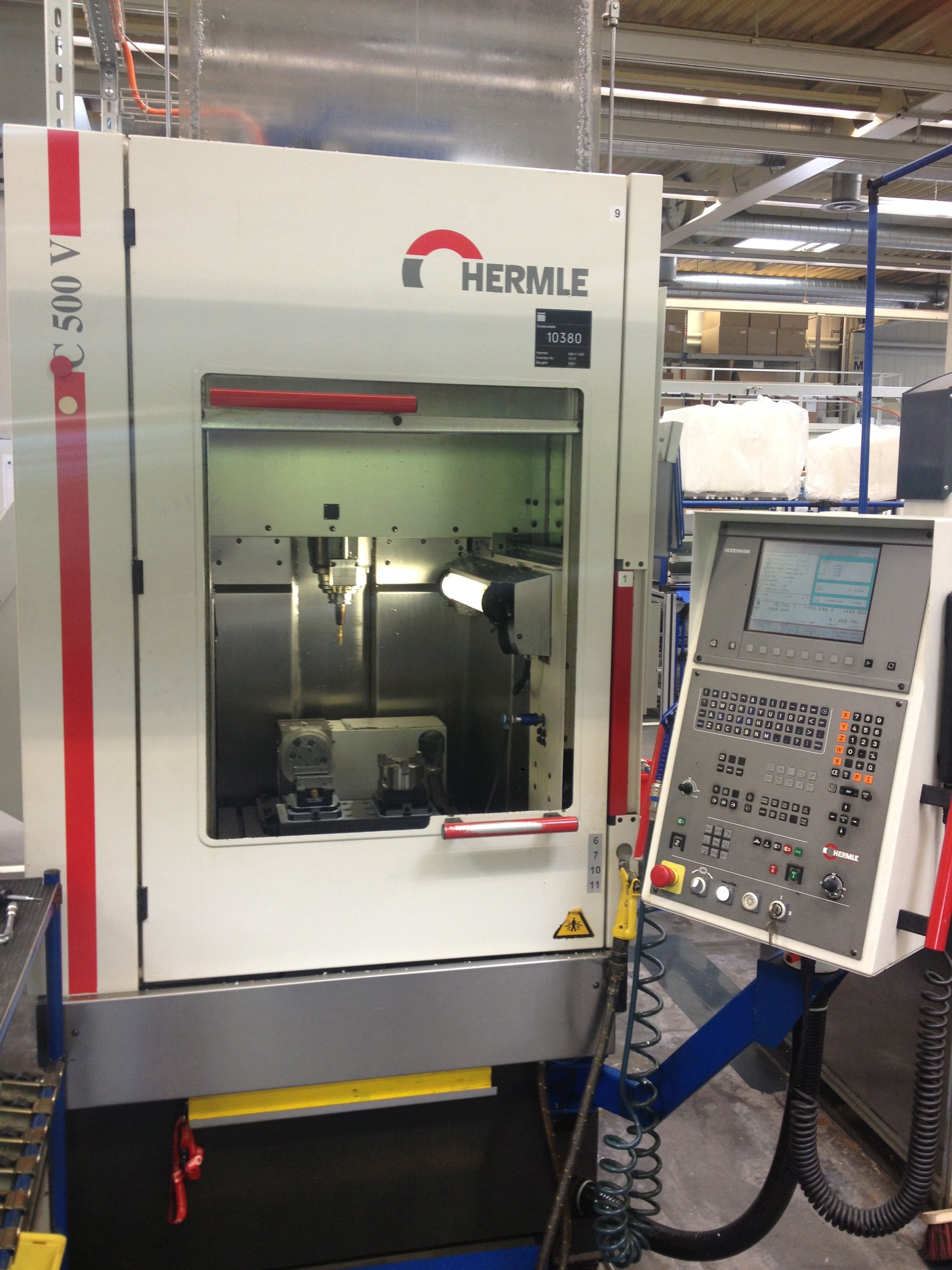

HERMLE C500U 2001
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND3772
Dati tecnici
- Condizione: usato
- Anno: 2001
Descrizione

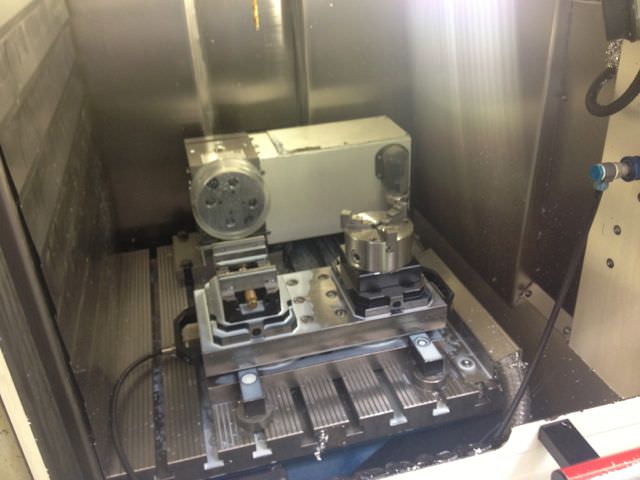

yearly mainteined by HERLME, inner coolant system 40 bar, NC 4th axis, spinlde bore 30 mm, Heidenhain measuring system, direct position measuring system, electric hand wheel, oil mist extraction, auto ...
yearly mainteined by HERLME, inner coolant system 40 bar, NC 4th axis, spinlde bore 30 mm, Heidenhain measuring system, direct position measuring system, electric hand wheel, oil mist extraction, automatic tool identification

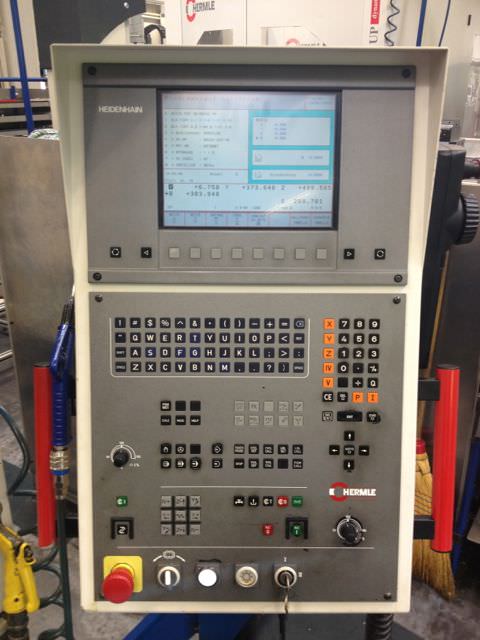

x-travel 400 mm, y-travel 500 mm, z-travel 450 mm, turning speeds 20 - 9.000 U/min, tool taper HSK-A63, rapid traverse in X- and Y-axis 35, rapid traverse Z-axis 30, Chip-to-chip time 5 sec, clamping table 540 x 560 mm mm, table load 0,25 t, tool changer 20 Pos., tool diameter 80 mm, max. tool length 250 mm, max. tool weight 6 kg, control Heidenhain TNC 426, total power requirement 16 kW, weight of the machine ca. 5,5 t, dimensions of the machine ca. 2,35 x 1,20 x 2,50 m m
