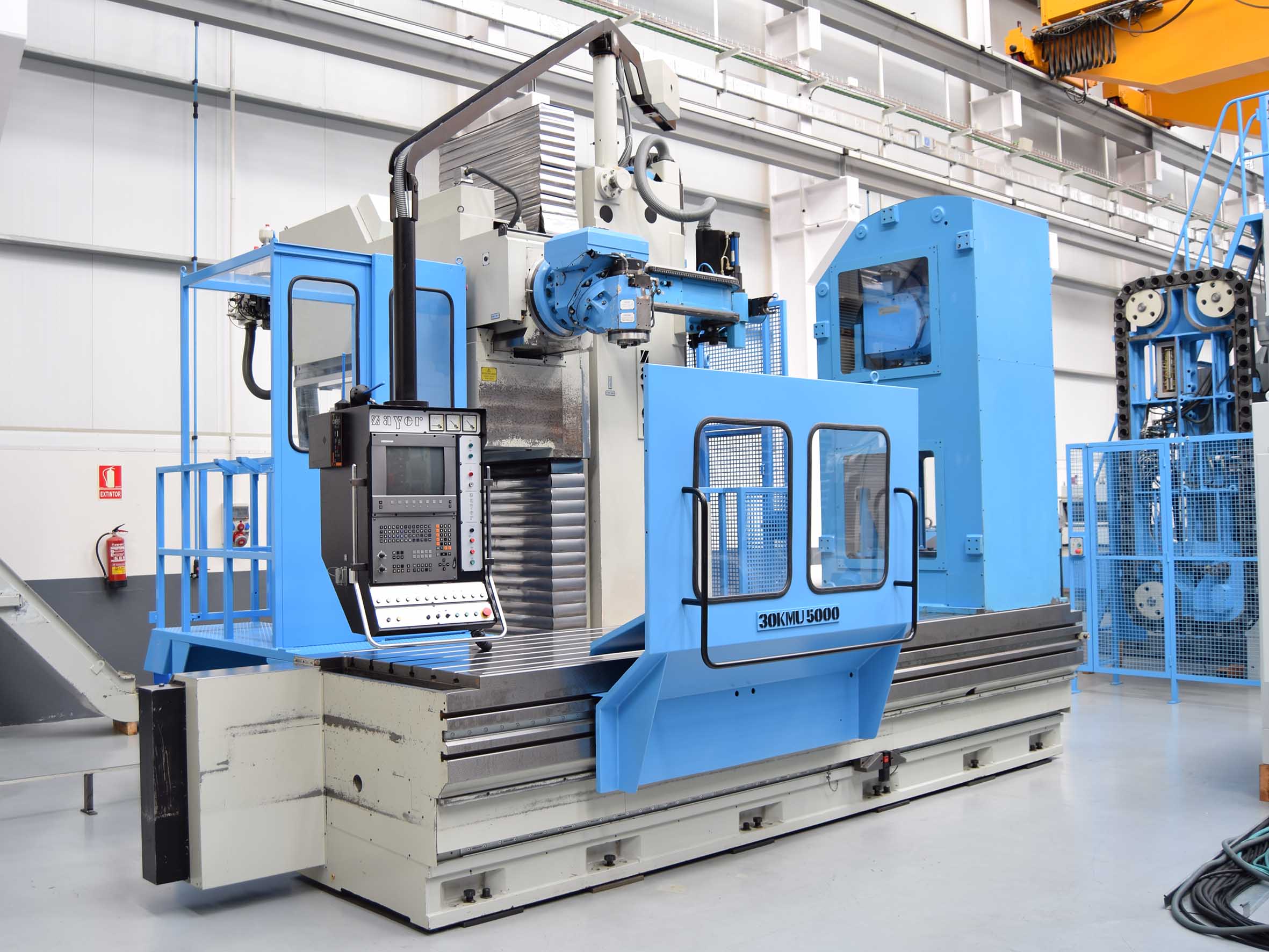

ZAYER 30 KMU 5000 1999
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND37858
.JPG)
Dati tecnici
- Condizione: usato
- Anno: 1999
Descrizione
Manufacturer ZAYER
Model 30 KMU-5000
Year 1999
CNC HEIDENHAIN TNC-430PA
Table Surface 4.700 x 1.200 mm.
Travels (X/Y/Z) 3.400/1.250/2.000 mm.
Quill Travel (W Axis) 500 mm.
Taper ISO-50
Main Mo ...
Manufacturer ZAYER
Model 30 KMU-5000
Year 1999
CNC HEIDENHAIN TNC-430PA
Table Surface 4.700 x 1.200 mm.
Travels (X/Y/Z) 3.400/1.250/2.000 mm.
Quill Travel (W Axis) 500 mm.
Taper ISO-50
Main Motor Power 37 kW
Automatic Head 45º INCLUDED
Automatic Head 45º 0.001º/0.001º
Head 45º Max. Speed 3.000 rpm
45º Head Taper ISO-50
Twist Head Contiuous INCLUDED
Twist Head Max Speed 3.000 rpm
Twist Head Taper ISO-50
Ram with Quill INCLUDED
Quill Diameter 150 mm.
Quill Taper ISO-50
Internal and External Coolant Head 45º and Quill INCLUDED
External Coolant Twist Head INCLUDED
Semi-automatic head change INCLUDED
Automatic Tool Changer INCLUDED
Positions in ATC 60
Pick up station AITEK for 45º and Twist Heads INCLUDED
Chip Conveyor INCLUDED
Portable Handwheel HEIDENHAIN HR-410
Piece Touchprobe RENISHAW MP 16+SP2/1
Machine Weight 35.000 kg.
